| Сountry of origin | Germany |
|---|---|
| Brand | HTS |
| Use | Load moving skate |
| Note | Each ECO-Skate BIG (PU) load moving skate has a frame and wheel box where each wheel is individually supported |
| Note | Special parts are available upon request |

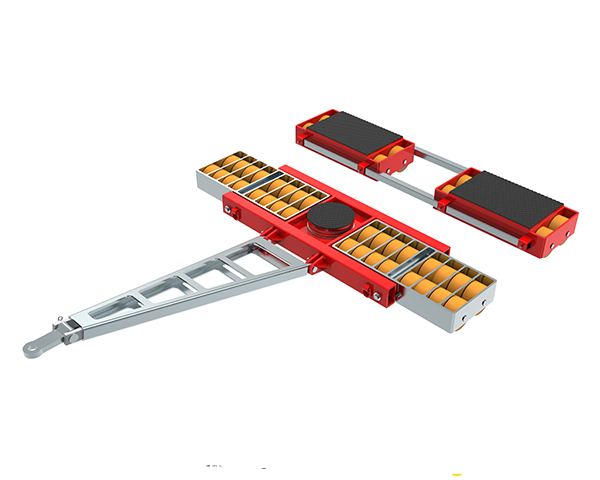

Each ECO-Skate BIG (PU) load moving skate has a frame and wheel box where each wheel is individually supported. This avoids flexing of the axle during short-term overload. Each ECO-Skate BIG (PU) heavy duty load moving system can be combined with any other heavy duty load moving skate with the same height. The total load results from the sum of the individual load capacities. The Skates are equipped as standard with HTS polyurethane wheels, which can also be ordered separately.
The following distinguishes the transport trolleys of the ECO-Skate BIG (PU) series:
- Single support - Each wheel is individually mounted on the BIG Series frame or wheel boxes. This prevents bending of the axis in the event of a short-term overload.
- Pulling bar and alignment bar - The load moving skates of the BIG series are delivered as standard with a pulling bar and alignment bar. Special lengths on request.
- Sturdy alignment bars - The two alignment bars are made of stable galvanized square tubes. Special lengths on request.

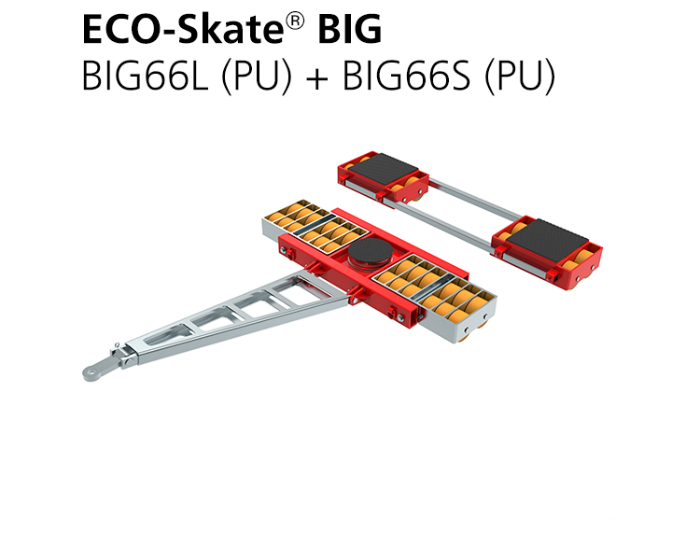

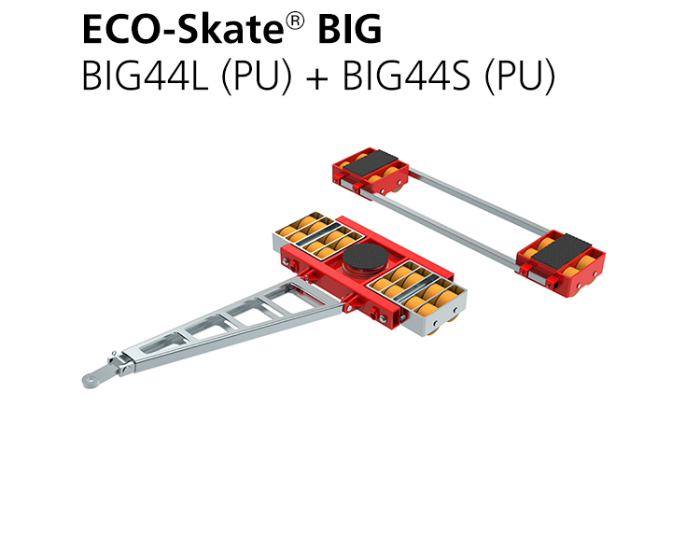

- Combinable - All load moving skates of the BIG series can be combined with each other. The total load results from the sum of the individual load capacities.
- HTS high polyurethane wheels - The skates are equipped as standard with HTS high quality, non-marking polyurethane wheels, which can also be ordered separately.

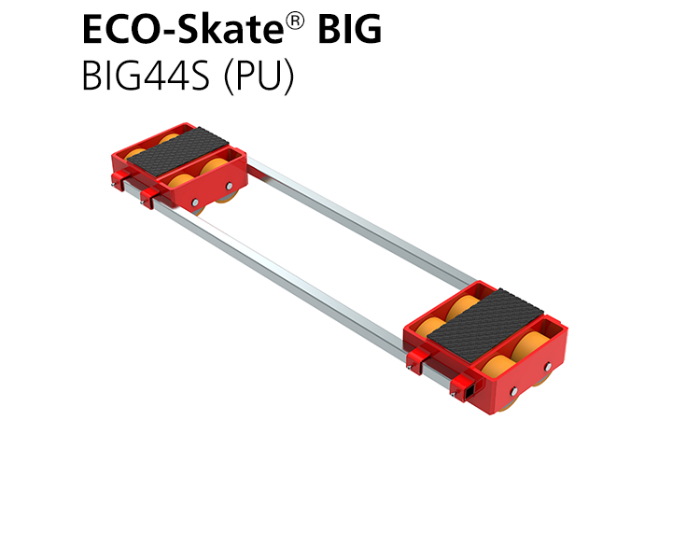

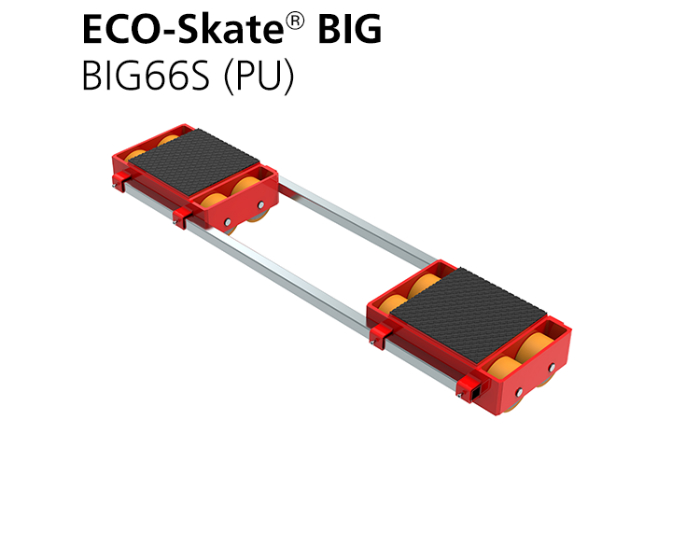

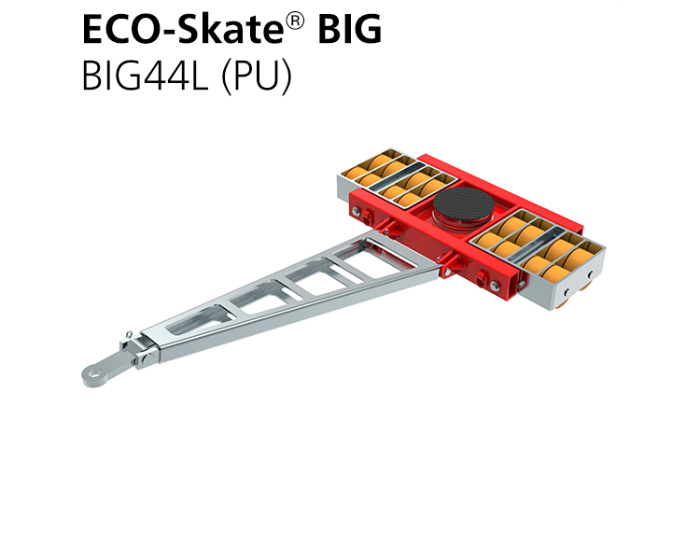

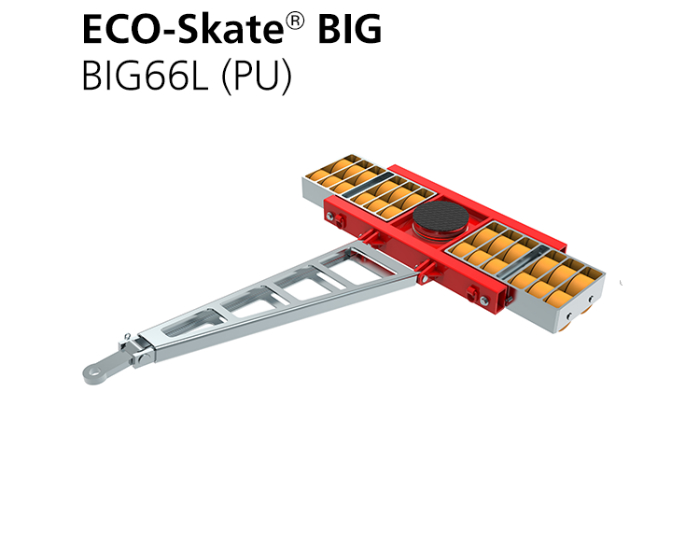

| Type | BIG44L | BIG44S | BIG66L | BIG66S | BIG88L | BIG88S |
BIG132S |
|---|---|---|---|---|---|---|---|
| Part number |
09.044.04.10 |
09.044.04.20 |
09.066.04.10 |
09.066.04.20 |
09.088.04.10 |
09.088.04.20 |
09.132.04.20 |
|
Capacity [kg] |
44.000 | 2 x 22.000 | 66.000 | 2 x 33.000 | 88.000 | 2 x 44.000 | 2 x 66.000 |
|
Capacity as set [kg] |
88.000 | 88.000 | 132.000 | 132.000 | 176.000 | 176.000 | 220.000 |
|
Wheel size [mm] |
180 x 89 | 180 x 89 | 180 x 89 | 180 x 89 | 180 x 89 | 180 x 89 | 180 x 89 |
|
Number of wheels |
16 | 2 x 8 | 24 | 2 x 12 | 32 | 2 x 16 | 2 x 24 |
|
Load area [mm] |
300 | 402 x 204 | 300 | 400 x 406 | 300 | 400 x 610 | 590 x 610 |
|

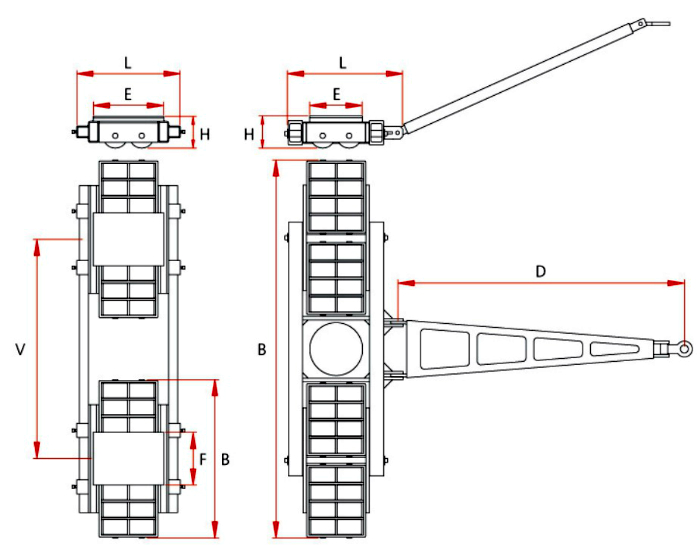

Dimensions [mm] |
738 x 1.390 x 220 | 542 x 436 x 220 | 738 x 1.802 x 220 | 542 x 642 x 220 |
738 x 2.213 x 220 |
542 x 848 x 220 |
732 x 848 x 220 |
|
Handle length [mm] |
1.775 | - | 1.775 | - | 1.775 | - | - |
|
Adjustability [mm] |
- | 450 - 1.736 | - | 650 - 1.530 | - | 900 - 1.320 | 900 - 1.320 |
|
Weight [kg] |
392 | 220 | 489 | 326 | 585 | 432 | 589 |
For all areas of application in which the standard range is insufficient, we design special solutions that are individually tailored to the customer needs.
