| Сountry of origin | Germany |
|---|---|
| Brand | HTS |
| Use | Load moving skate |
| Note | All heavy-duty skates are delivered as standard with pulling bar and alignment bar as well as HTS polyurethane wheels, on request also steel wheels |
| Note | Special parts are available upon request |
With the load moving skates of the ECO-Skate® IDEAL (PU) series, loads of up to 30 tonnes can be moved. All heavy-duty skates are delivered as standard with pulling bar and alignment bar as well as HTS polyurethane wheels, on request also steel wheels. All load moving systems of the ECO-Skate® IDEAL (PU) series can be combined as desired with each other with all other trolleys of the same height. The sum of the individual load capacities results in the total load. The wheels of the ECO-Skate® IDEAL (PU) series are also available separately.
The following distinguishes the transport trolleys of the ECO-Skate IDEAL (PU) series:
- Pulling bar and alignment bar - The skates of the IDEAL series come standard with pulling bar and alignment bar. Special lengths on request.

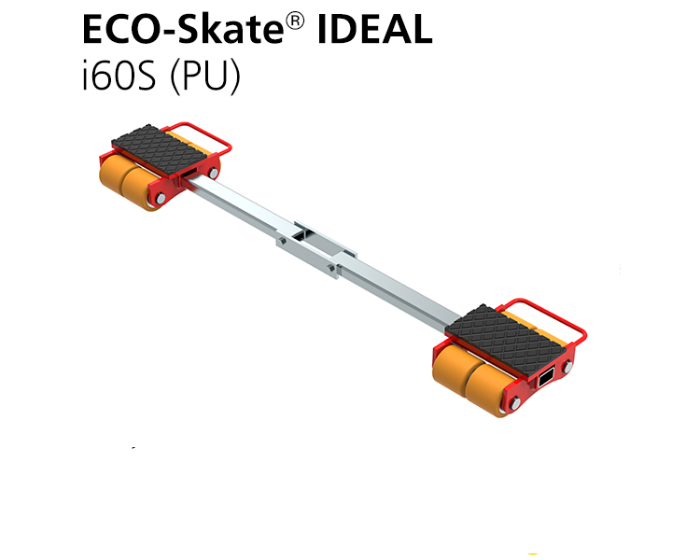

- Foldable alignment bar - The alignment bar of the i60S, i90S and i120S can be folded.

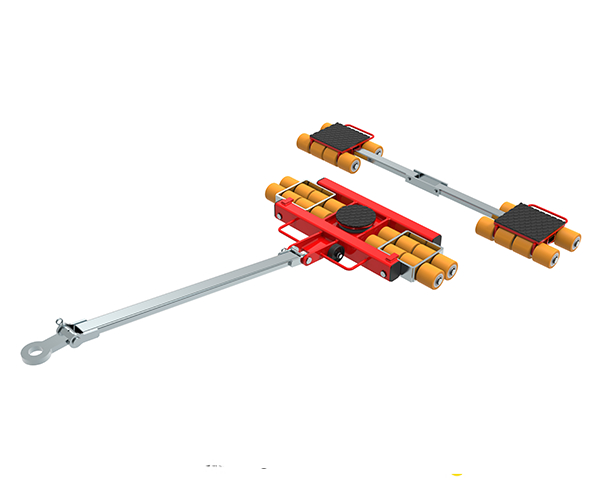

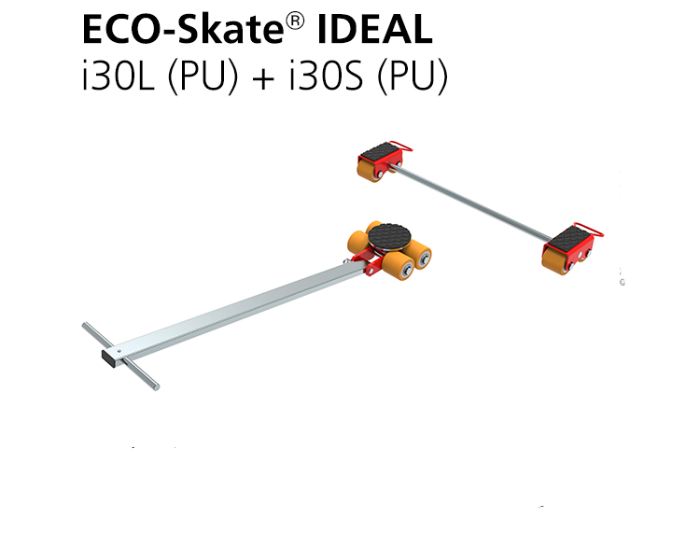

- Combineable - All load moving skates of the IDEAL series can be combined with each other and with trolleys of the series IDEAL (NY), ROTO and DUO. The total load results from the sum of the individual load capacities.
- HTS wheels - The skates are equipped as standard with HTS high quality, non-marking polyurethane wheels, which can also be ordered separately. Equipment with HTS steel wheels on request.

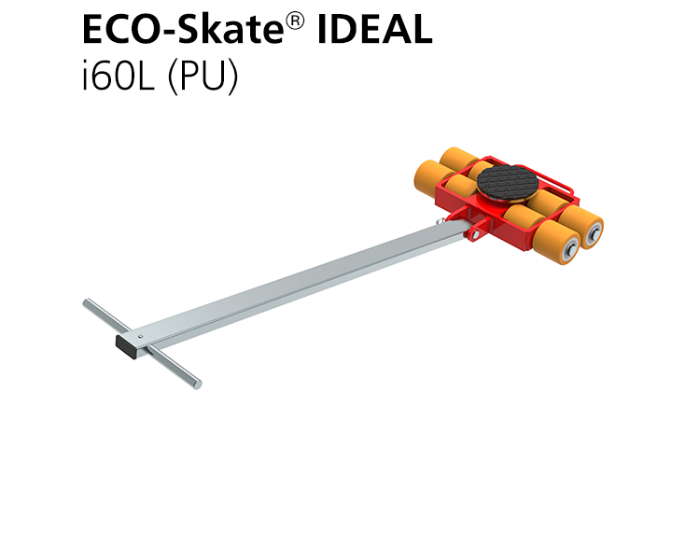

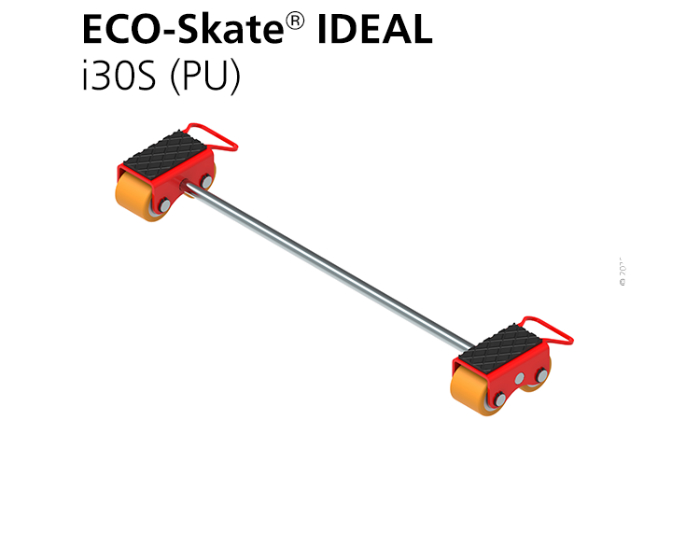

| Type | I30L | I30S | I60L | I60S |
I90L |
I90S | I120L | I120S | I150L |
I150S |
|---|---|---|---|---|---|---|---|---|---|---|
| Part number | 10.030.00.10 |
10.030.00.20 |
10.060.00.10 |
10.060.00.20 |
10.090.00.10 |
10.090.00.20 |
10.120.00.10 |
10.120.00.20 |
10.150.00.10 |
10.150.00.20 |
|
Capacity [kg] |
3.000 | 2 x 1.500 | 6.000 | 2 x 3.000 | 9.000 | 2 x 4.500 | 12.000 | 2 x 6.000 | 15.000 | 2 x 7.500 |
|
Capacity as set [kg] |
6.000 | 6.000 | 12.000 | 12.000 | 18.000 | 18.000 | 24.000 | 24.000 | 30.000 | 30.000 |
|
Wheel size [mm] |
85 x 87 | 85 x 87 | 85 x 87 | 85 x 87 | 85 x 87 | 85 x 87 | 85 x 87 | 85 x 87 | 85 x 87 | 85 x 87 |
|
Number of wheels |
4 | 2 x 2 | 8 | 2 x 4 | 12 | 2 x 6 | 16 | 2 x 8 | 20 | 2 x 10 |
|
Load area [mm] |
150 | 150 x 75 | 150 | 120 x 220 | 170 | 170 x 180 | 170 | 200 x 220 | 170 | 200 x 500 |
|

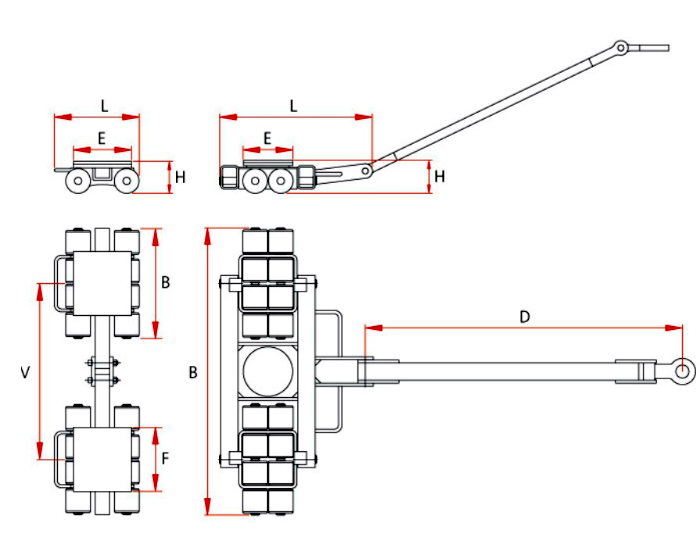

Dimensions [mm] |
238 x 268 x 110 | 246 x 120 x 110 |
339 x 483 x 110 |
291 x 220 x 110 | 528 x 780 x 110 | 295 x 295 x 110 | 528 x 982 x 110 | 291 x 382 x 110 | 568 x 1.192 x 110 | 291 x 500 x 110 |
|
Handle length [mm] |
1.000 | - | 1.000 | - | 1.170 | - | 1.170 | - | 1.170 | - |
|
Adjustability [mm] |
- | 120 - 880 | - | 420 - 1.100 | - | 460 - 1.145 | - | 560 - 1.095 | - | 695 - 1.403 |
|
Weight [kg] |
13,5 | 14 | 26 | 29 | 57 | 36 | 68 | 45 | 99 | 67 |
For all areas of application in which the standard range from the standard range is insufficient, we design special solutions that are individually tailored to the customer needs.
