Сountry of origin | Germany |
---|---|
Brand | SpanSet-secutex |
Purpose | Scratch protection |
Material | Secutex |
The protective sleeve is not well suited for intensive use and for transporting sharp-edged parts due to the high surface pressures.

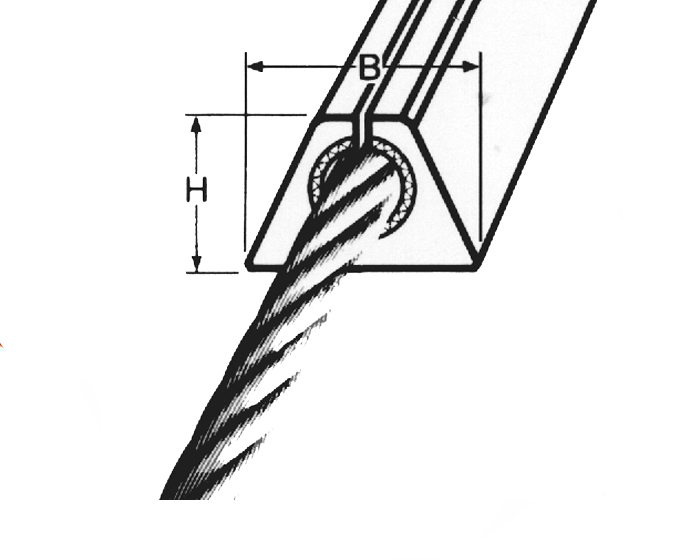

SECUTEX SDC
Wire rope diameter |
Designation SECUTEX SDC |
Approx. inside diameter [mm] |
Height H [mm] |
Width B [mm] |
Approx. weight per running m [kg] |
---|---|---|---|---|---|
6 |
SDC-8 |
8 | 21 | 21 |
0,50 |
8 | SDC-10 | 10 | 23 | 36 | 0,60 |
10 | SDC-12 | 12 | 23 | 36 | 0,60 |
12 | SDC-14 | 14 | 29 | 44 | 0,85 |
14 | SDC-16 | 16 | 29 | 44 | 0,85 |
16 | SDC-18 | 18 | 35 | 52 | 1,20 |
18 | SDC-20 | 20 | 35 | 52 | 1,20 |
20 | SDC-22 | 22 | 39 | 59 | 1,45 |
22 | SDC-24 | 24 | 39 | 59 | 1,45 |

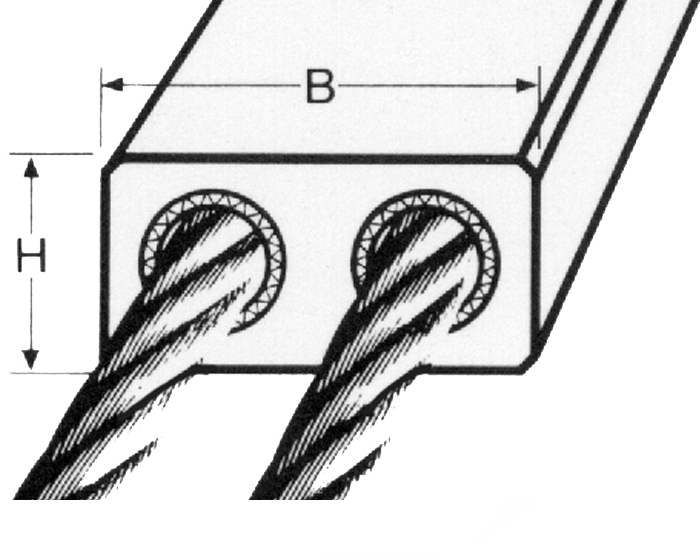

SECUTEX SDC-2
Wire rope diameter |
Designation SECUTEX SDC-2 |
Approx. inside diameter [mm] |
Height H [mm] |
Width B [mm] |
Approx. weight per running m [kg] |
---|---|---|---|---|---|
6 | SDC-8-2 | 8 | 18 | 36 | 0,55 |
8 | SDC-10-2 | 10 | 20 | 40 | 0,64 |
10 | SDC-12-2 | 12 | 22 | 44 | 0,74 |
12 | SDC-14-2 | 14 | 26 | 52 | 1,04 |
14 | SDC-16-2 | 16 | 29 | 58 | 1,28 |
16 | SDC-18-2 | 18 | 33 | 66 | 1,67 |
18 | SDC-20-2 | 20 | 37 | 74 | 2,11 |
20 | SDC-22-2 | 22 | 41 | 82 | 2,60 |
22 |
SDC-24-2 |
24 | 44 | 88 | 2,97 |
24 |
SDC-26-2 |
26 | 48 | 96 | 3,55 |
26 |
SDC-28-2 |
28 | 51 | 102 | 3,97 |
28 |
SDC-30-2 |
30 | 59 | 118 | 5,55 |
34 |
SDC-36-2 |
36 | 66 | 132 | 6,68 |
38 |
SDC-40-2 |
40 | 74 | 148 | 8,44 |
SECUTEX SD
Wire rope diameter |
Designation SECUTEX SD |
Approx. inside diameter [mm] |
Height H [mm] |
Width B [mm] |
Approx. weight per running m [kg] |
---|---|---|---|---|---|
6 | SD-8 | 8 | 18 | 18 | 0,27 |
8 | SD-10 | 10 | 20 | 20 | 0,32 |
10 | SD-12 | 12 | 22 | 22 | 0,37 |
12 | SD-12 | 14 | 26 | 26 | 0,52 |
14 | SD-14 | 16 | 29 | 29 | 0,64 |
16 | SD-18 | 18 | 33 | 33 | 0,83 |
18 | SD-20 | 20 | 37 | 37 | 1,06 |
20 | SD-22 | 22 | 41 | 41 | 1,30 |
22 | SD-24 | 24 | 44 | 44 | 1,48 |
24 | SD-26 | 26 | 48 | 48 | 1,77 |
26 | SD-28 | 28 | 51 | 51 | 1,99 |
28 | SD-30 | 30 | 59 | 59 | 2,77 |
34 | SD-36 | 36 | 66 | 66 | 3,34 |
38 | SD-40 | 40 | 74 | 74 | 4,22 |
SECUTEX SD-2
Wire rope diameter |
Designation SECUTEX SDC-2 |
Approx. inside diameter [mm] |
Height H [mm] |
Width B [mm] |
Approx. weight per running m [kg] |
---|---|---|---|---|---|
6 | SD-8-2 | 8 | 18 | 36 | 0,55 |
8 | SD-10-2 | 10 | 20 | 40 | 0,64 |
10 | SD-12-2 | 12 | 22 | 44 | 0,74 |
12 | SD-14-2 | 14 | 26 | 52 | 1,04 |
14 | SD-16-2 | 16 | 29 | 58 | 1,28 |
16 | SD-18-2 | 18 | 33 | 66 | 1,67 |
18 | SD-20-2 | 20 | 37 | 74 | 2,11 |
20 | SD-22-2 | 22 | 41 | 82 | 2,60 |
22 |
SD-24-2 |
24 | 44 | 88 | 2,97 |
24 |
SD-26-2 |
26 | 48 | 96 | 3,55 |
26 |
SD-28-2 |
28 | 51 | 102 | 3,97 |
28 |
SD 30-2 |
30 | 59 | 118 | 5,55 |
34 |
SD-36-2 |
36 | 66 | 132 | 6,68 |
38 |
SD-40-2 |
40 | 74 | 148 | 8,44 |
