Сountry of origin | Netherlands |
---|---|
Brand | Terrier |
Use | For horizontal lifting and transporting of steel and concrete pipes without damaging the product |
Safety factor | 5:1 |
Temperature range | From -40°C to + 100°C |
Note | Easy to exchange parts which are available upon request |
Terrier lifting clamps are working in harsh and dangerous areas on a daily basis. So absolute safety and safe lifting is our number one priority. All lifting clamps are tested on our in-house testing facilities up to 2 times the Working Load Limit (WLL). Terrier Lifting Clamps are designed on a break factor of even 5 times the WLL.
Each clamp has red signal colouring on lifting eye and locking lever for extra safety and is supplied with a test certificate. When using Terrier clamps please make sure to read safety instruction.

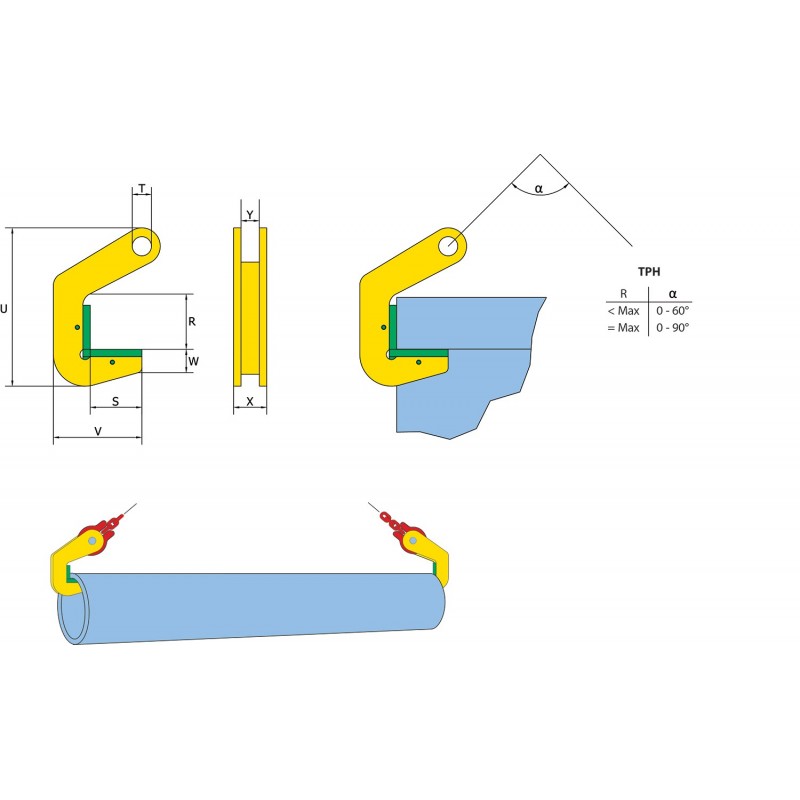

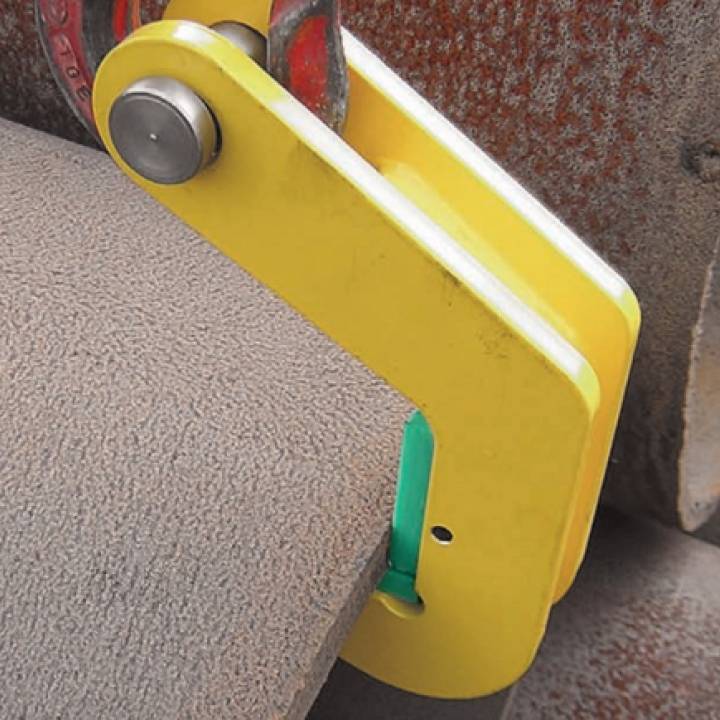

Pipe hooks are used exclusively for horizontal lifting and transporting of pipes. The hooks can only be used in pairs using a two-leg sling or spreader beam. Compact and lightweight in design, Terrier TPH(-HD) pipe hooks have a high lifting capacity.
Features and benefits:

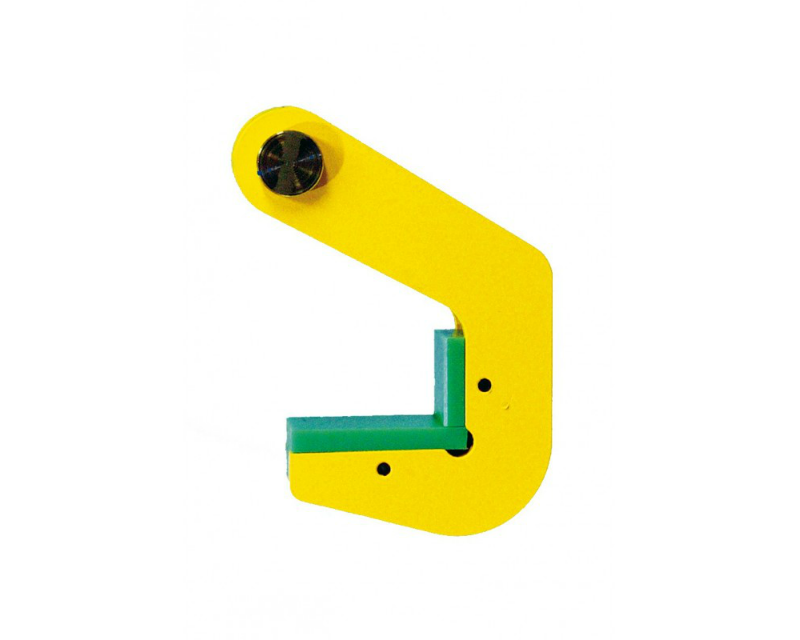

- TPH Jaw is covered with a special high quality pressure resistant plastic

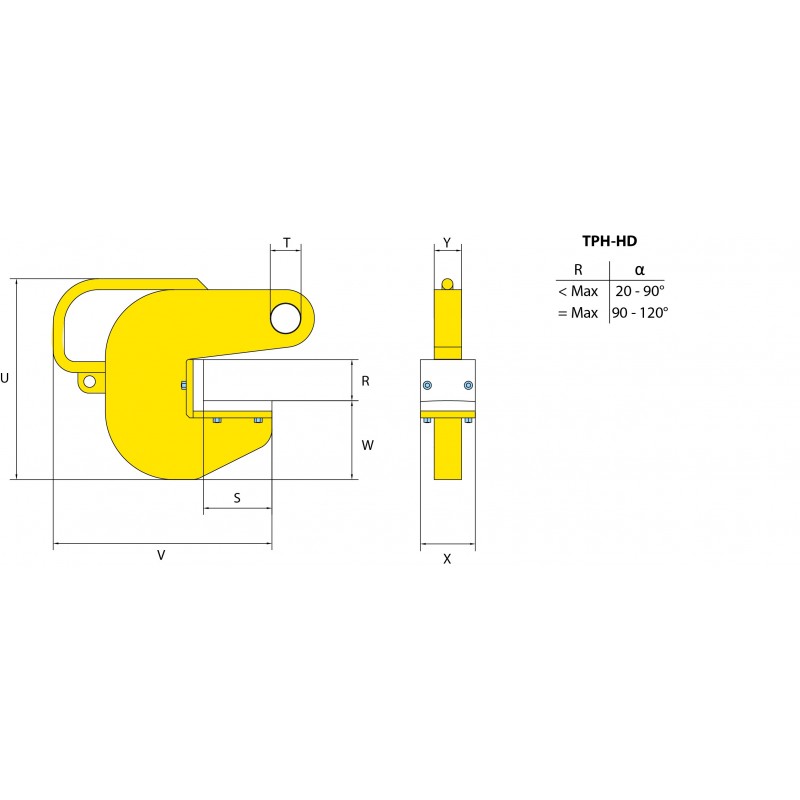

- TPH-HD Jaw is covered with special high quality extreme high pressure resistant plastic
- Maintenance-friendly clamps, plastic pressure resistant cover is pipe lifting easy to change
- TPH-HD has special handle for easy handling
- Compact design and high lifting capacity
- Lightweight design for easy handling
- Tough quality heavy duty body
Art. № | Type |
Capacity [kg/pair] |
Jaw opening [mm] |
V [mm] |
S [mm] |
W [mm] |
U [mm] |
T [mm] |
X [mm] |
Y [mm] |
Weight [kg/pc] |
---|---|---|---|---|---|---|---|---|---|---|---|
960150 | 1.5 TPH | 1500 | 40 | 120 | 70 | 50 | 185 | 16 | 41 | 25 | 2 |
960300 | 3 TPH | 3000 | 40 | 120 | 70 | 50 | 185 | 16 | 41 | 25 | 2 |
960400 | 4 TPH | 4000 | 50 | 140 | 70 | 58 | 204 | 26 | 41 | 25 | 3 |
960600 | 6 TPH | 6000 | 50 | 140 | 70 | 58 | 204 | 26 | 41 | 25 | 3 |
960800 | 8 TPH | 8000 | 70 | 140 | 70 | 58 | 224 | 26 | 45 | 25 | 3.4 |
960810 | 10 TPH | 10000 | 70 | 140 | 70 | 58 | 224 | 26 | 85 | 45 | 7 |
960812 | 12 TPH | 12000 | 70 | 140 | 70 | 58 | 224 | 26 | 85 | 45 | 7 |
960815 | 15 TPH | 15000 | 70 | 155 | 70 | 76 | 250 | 26 | 100 | 60 | 9 |
960820 | 20 TPH | 20000 | 70 | 155 | 70 | 76 | 250 | 26 | 100 | 60 | 9 |
965050 | 5 TPH-HD | 5000 | 60 | 309 | 100 | 85 | 232 | 26 | 80 | 20 | 6.7 |
965100 | 10 TPH-HD | 10000 | 60 | 319 | 100 | 85 | 236 | 36 | 80 | 30 | 9.7 |
965200 | 20 TPH-HD | 20000 | 60 | 362 | 100 | 105 | 285 | 51 | 80 | 35 | 14 |
965300 | 30 TPH-HD | 30000 | 60 | 387 | 100 | 115 | 310 | 58 | 80 | 40 | 19 |
965600 | 60 TPH-HD | 60000 | 60 | 418 | 100 | 115 | 350 | 85 | 80 | 60 | 28.5 |
