| Сountry of origin | Netherlands |
|---|---|
| Brand | Terrier |
| Use | For horizontal lifting and transportation of steel (H) beams, profiles and structures |
| Safety factor | 5:1 |
| Temperature range | From -40°C to + 100°C |
| Note | FSVS / FSVSU types are supplied with enlarged jaw opening: 75 to 560 mm |
| Note | Easy to exchange parts which are available upon request |
Terrier lifting clamps are working in harsh and dangerous areas on a daily basis. So absolute safety and safe lifting is our number one priority. All lifting clamps are tested on our in-house testing facilities up to 2 times the Working Load Limit (WLL). Terrier Lifting Clamps are designed on a break factor of even 5 times the WLL.
Each clamp has red signal colouring on lifting eye and locking lever for extra safety and is supplied with a test certificate. When using Terrier clamps please make sure to read safety instruction.

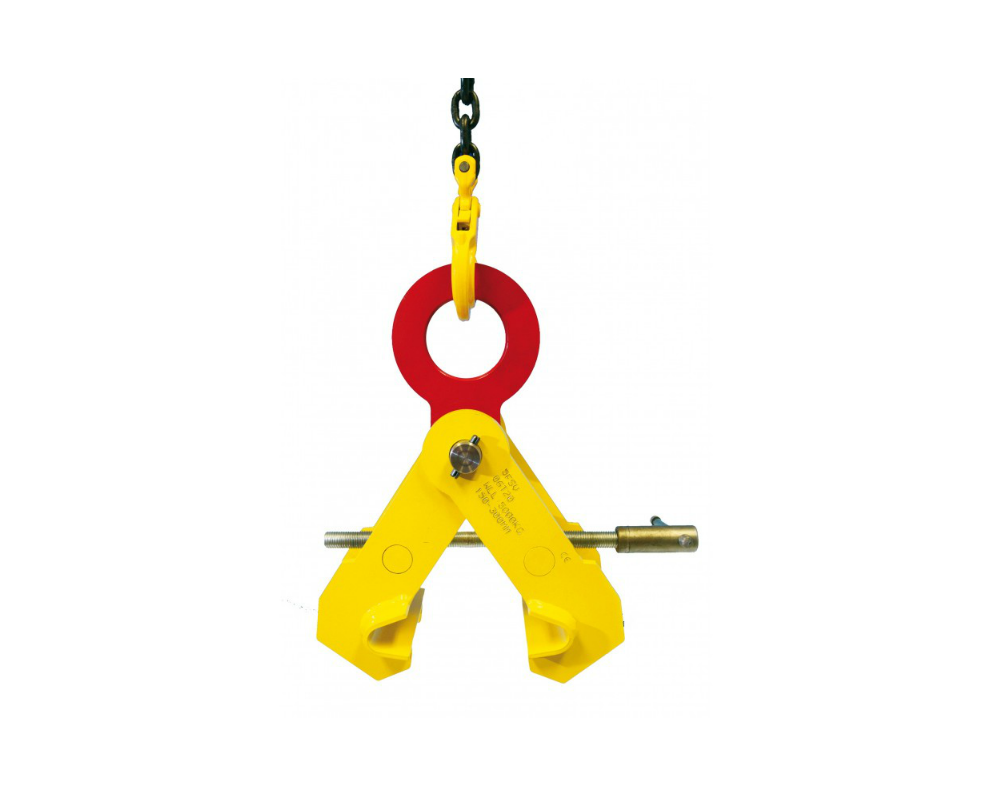

The Terrier screw clamps feature a screw thread mechanism consisting of a threaded spindle and a pivots. As soon as the spindle has been actuated, this mechanism ensures that a constant clamping force is. In this way the clamp will not work itself loose from the object.
Features and benefits:

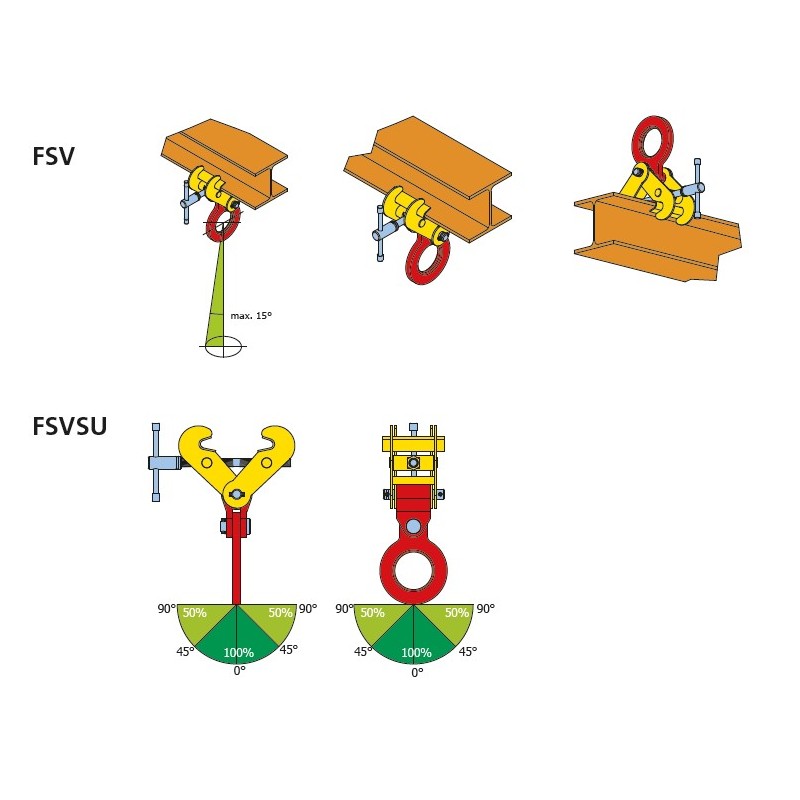

- Special design makes it possible to lift steel (H) beams and structures
- Equal opening and closing of both jaws for simple and quick assembly
- Welded jaw plates for better positioning and less damaging of load
- FSVSU types are supplied with reinforced body and articulated lifting shackle
- Lightweight, maintenance-friendly, heavy duty body

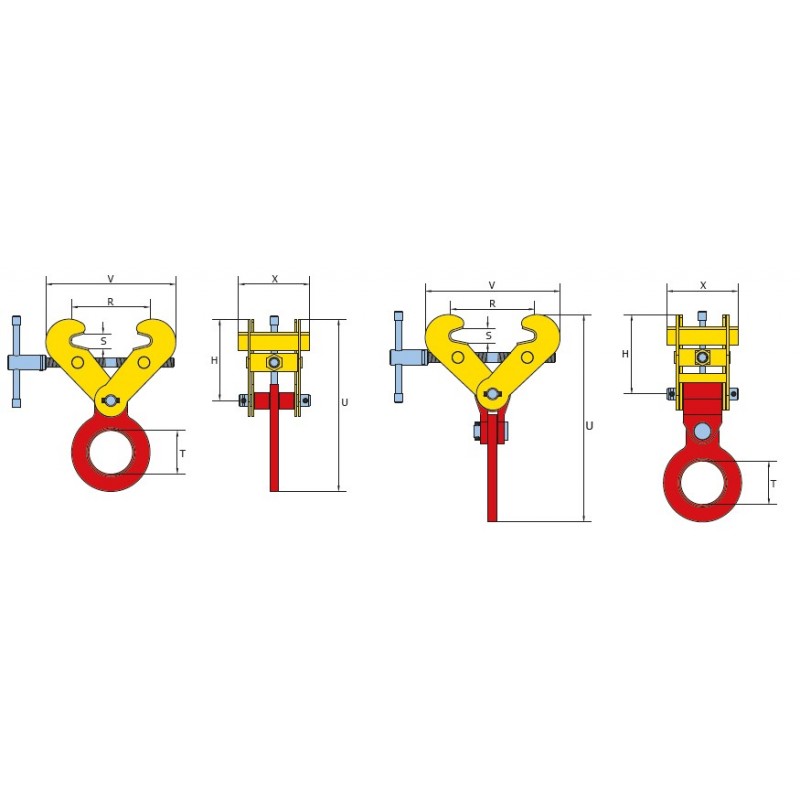

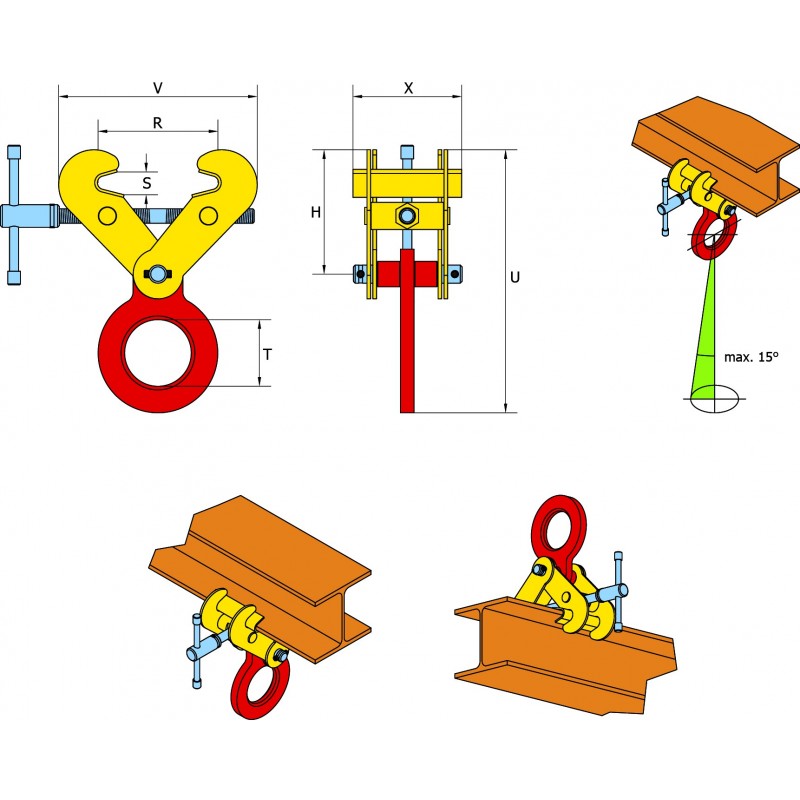

| Art. № | Type |
Capacity [kg/pc] |
Jaw opening [mm] |
S [mm] |
T [mm] |
V-max [mm] |
U-max [mm] |
H [mm] |
X [mm] |
Weight [kg/pc] |
|---|---|---|---|---|---|---|---|---|---|---|
| 851400 | 1 FSV | 1000 | 75-190 | 30 | 73.5 | 357 | 345 | 113-192 | 120 | 5 |
| 851500 | 2 FSV | 2000 | 75-190 | 30 | 73.5 | 357 | 345 | 113-192 | 120 | 5 |
| 851600 | 3 FSV | 3000 | 75-190 | 30 | 73.5 | 357 | 345 | 113-192 | 120 | 5 |
| 851700 | 4 FSV | 4000 | 150-300 | 40 | 80 | 450 | 422 | 185-240 | 180 | 15 |
| 851800 | 5 FSV | 5000 | 150-300 | 40 | 80 | 450 | 422 | 185-240 | 180 | 15 |
| 851110 | 10 FSV | 10000 | 350-450 | 95 | 88 | 695 | 653 | 400-447 | 200 | 50 |
| 962000 | 2 FSVS | 2000 | 75-420 | 30 | 73.5 | 540 | 428 | 114-275 | 120 | 7 |
| 963000 | 3 FSVS | 3000 | 75-420 | 30 | 73.5 | 540 | 428 | 114-275 | 120 | 7 |
| 964000 | 4 FSVS | 4000 | 150-560 | 40 | 80 | 708 | 545 | 173-362 | 180 | 18 |
| 965000 | 5 FSVS | 5000 | 150-560 | 40 | 80 | 708 | 545 | 173-362 | 180 | 19.5 |
| 956300 | 3 FSVSU | 3000 | 75-420 | 30 | 73.5 | 540 | 486 | 114-275 | 120 | 8 |
| 956400 | 4 FSVSU | 4000 | 150-560 | 40 | 80 | 708 | 613 | 173-362 | 180 | 21 |
| 956500 | 5 FSVSU | 5000 | 150-560 | 40 | 80 | 708 | 622 | 173-362 | 180 | 22 |
