| Сountry of origin | Netherlands |
|---|---|
| Brand | Terrier |
| Use | For use as a (temporary) lifting point in spaces with HP- (bulb) profiles, like sectional ship parts and ship engine rooms |
| Safety factor | 5:1 |
| Temperature range | From -40°C to + 100°C |
| Note | Easy to exchange parts which are available upon request |
| Note | The moment a load is applied, the clamp is automatically fixed |
Terrier lifting clamps are working in harsh and dangerous areas on a daily basis. So absolute safety and safe lifting is our number one priority. All lifting clamps are tested on our in-house testing facilities up to 2 times the Working Load Limit (WLL). Terrier Lifting Clamps are designed on a break factor of even 5 times the WLL.
Each clamp has red signal colouring on lifting eye and locking lever for extra safety and is supplied with a test certificate. When using Terrier clamps please make sure to read safety instruction.

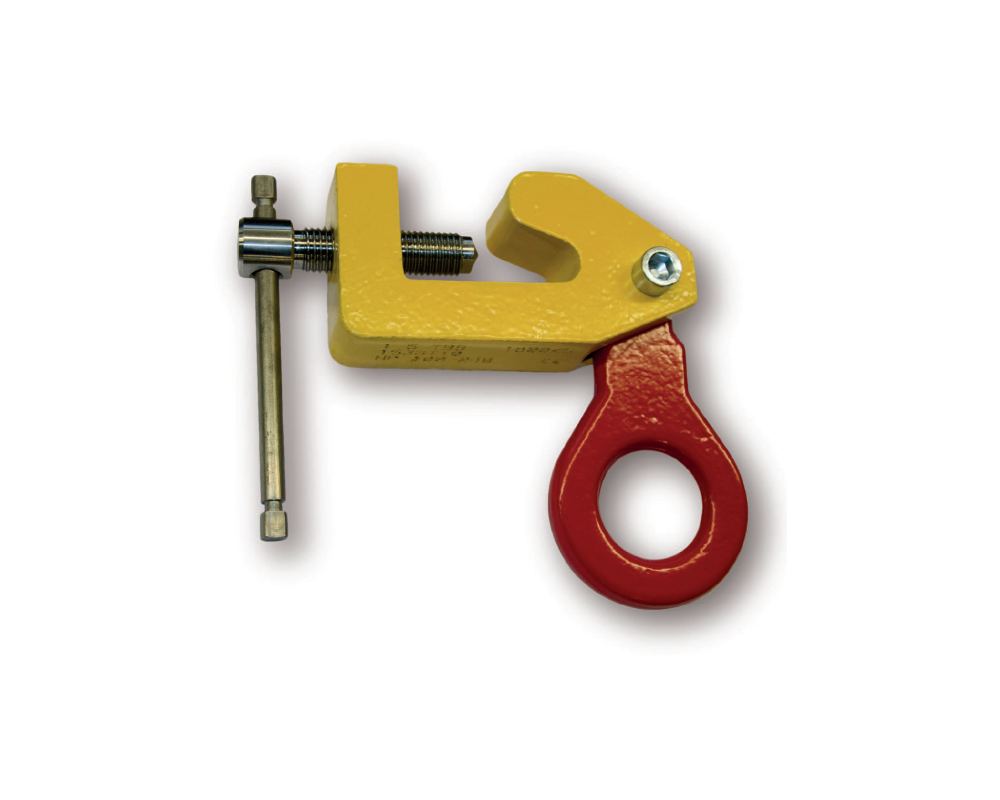

The Terrier screw clamps feature a screw thread mechanism consisting of a threaded spindle and a pivots. As soon as the spindle has been actuated, this mechanism ensures that a constant clamping force is. In this way the clamp will not work itself loose from the object.
Features and benefits:
- Equipped with a thread spindle for easy attachment, providing a powerful clamping force on the workpiece
- Lightweight design for easy handling
- Tough quality heavy duty body
- Maintenance-friendly, easy to exchange parts which are available upon request

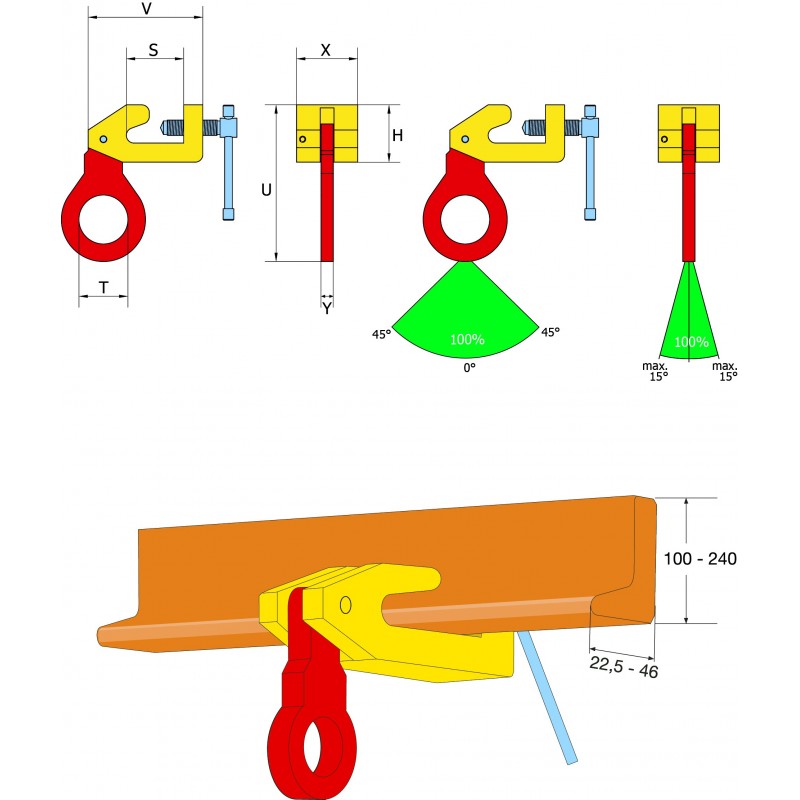

| Art. № | Type |
Capacity [kg/pc] |
Jaw opening [mm] |
V [mm] |
S [mm] |
T [mm] |
U [mm] |
H [mm] |
X [mm] |
Y [mm] |
Weight [kg/pc] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 862150 | 1.5 TBS | 1500 | HP100-240 | 150 | 74 | 45 | 180 | 75 | 40 | 16 | 2;9 |
| 862400 | 3 TBS | 3000 | HP100-240 | 150 | 75 | 65 | 205 | 75 | 80 | 16 | 6 |
