| Сountry of origin | Netherlands |
|---|---|
| Brand | Terrier |
| Use | For vertical and horizontal lifting and transportation of a large variety of steel structures |
| Safety factor | 5:1 |
| Temperature range | From -40°C to + 100°C |
| Note | TSCC-W types are supplied with enlarged jaw opening |
| Note | Easy to exchange parts which are available upon request |
Terrier lifting clamps are working in harsh and dangerous areas on a daily basis. So absolute safety and safe lifting is our number one priority. All lifting clamps are tested on our in-house testing facilities up to 2 times the Working Load Limit (WLL). Terrier Lifting Clamps are designed on a break factor of even 5 times the WLL.
Each clamp has red signal colouring on lifting eye and locking lever for extra safety and is supplied with a test certificate. When using Terrier clamps please make sure to read safety instruction.

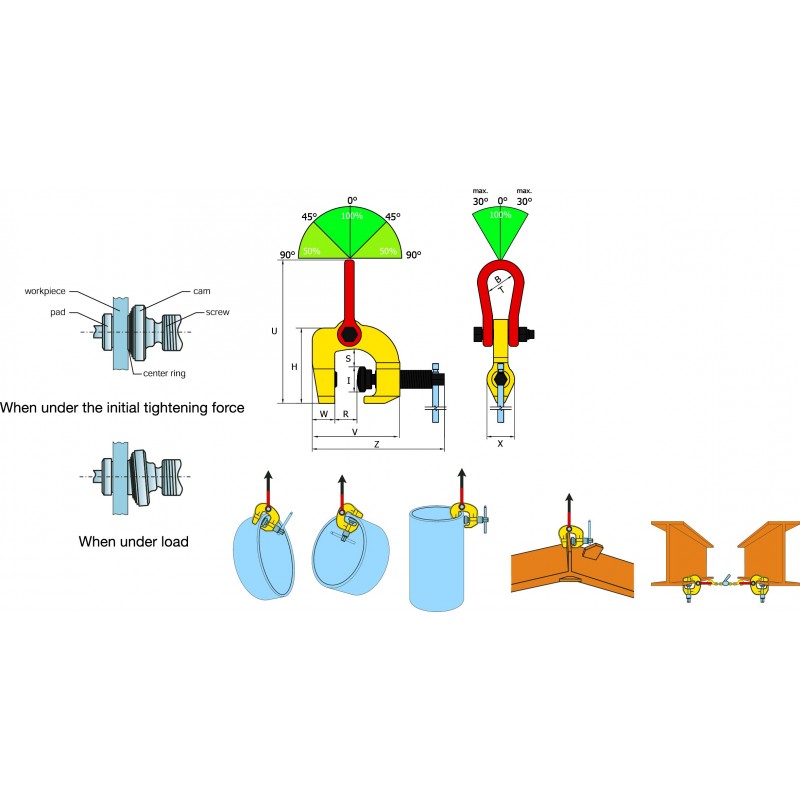

The Terrier screw clamps feature a screw thread mechanism consisting of a threaded spindle and a pivots. As soon as the spindle has been actuated, this mechanism ensures that a constant clamping force is. In this way the clamp will not work itself loose from the object.
Features and benefits:
- Special universal design ensures multi-purpose application of lifting steel structures
- Fitted with a moveable cam on the thread spindle which provides a powerful clamping force on the workpiece
- Equipped with a safety screw spindle mechanism, ensuring the clamp does not slip when lifting force is applied
- Lightweight design for easy handling
- Tough quality heavy duty drop forged body
- Forged alloy components, where required
- Maintenance-friendly, easy to exchange parts which are available upon request
| Art. № | Type |
Capacity [kg/pc] |
Jaw opening [mm] |
S [mm] |
I [mm] |
W [mm] |
V [mm] |
Z [mm] |
U [mm] |
H [mm] |
T [mm] |
X [mm] |
Weight [kg/pc] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 900500 | 0.5 TSCC | 500 | 0 - 35 | 18 | 27.5 | 26 | 108 | 158 | 211 | 82 | 25 | 27 | 1 |
| 901000 | 1 TSCC | 1000 | 0 - 40 | 29 | 42 | 40 | 150 | 220 | 232 | 140 | 46 | 46 | 3.3 |
| 901500 | 1.5 TSCC | 1500 | 0 - 40 | 29 | 42 | 40 | 150 | 220 | 232 | 140 | 46 | 46 | 3.5 |
| 903000 | 3 TSCC | 3000 | 0 - 60 | 38 | 50 | 46 | 190 | 280 | 278 | 184 | 50 | 60 | 7.8 |
| 906000 | 6 TSCC | 6000 | 0-100 | 60 | 63 | 70 | 296 | 446 | 390 | 249 | 100 | 75 | 22 |
| 862711 | 1 TSCC-W | 1000 | 50 - 100 | 88 | 42 | 50 | 225 | 258 | 273 | 190 | 45 | 46 | 6.3 |
| 862731 | 3 TSCC-W | 3000 | 25 - 75 | 76 | 49 | 60 | 215 | 250 | 291 | 191 | 50 | 54 | 7.8 |
