| Сountry of origin | Germany |
|---|---|
| Brand | THIELE |
| Purpose | Device for pulling, lifting and moving loads.Also be used as lashing device |
| Testing | 100% Magnetic crack tested |
The Thiele range of lever hoists are a premium top quality product which is unrivalled in the market place for reliability and performance. The Thiele range of lever hoists comes with a full catalogue of spare parts as well as a 12 month warranty.
It is this coupled with the easy serviceable mechanism of the Thiele lever hoist that makes them the first choice of our high end lever hoist users. The Thiele range of pull lift have capacity from 250kg 6T and come with a lift height of 1.5m as standard but additional heights are available.

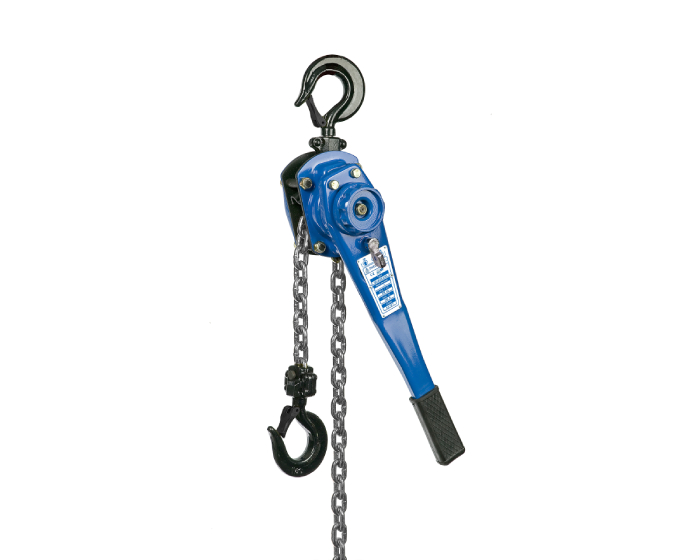

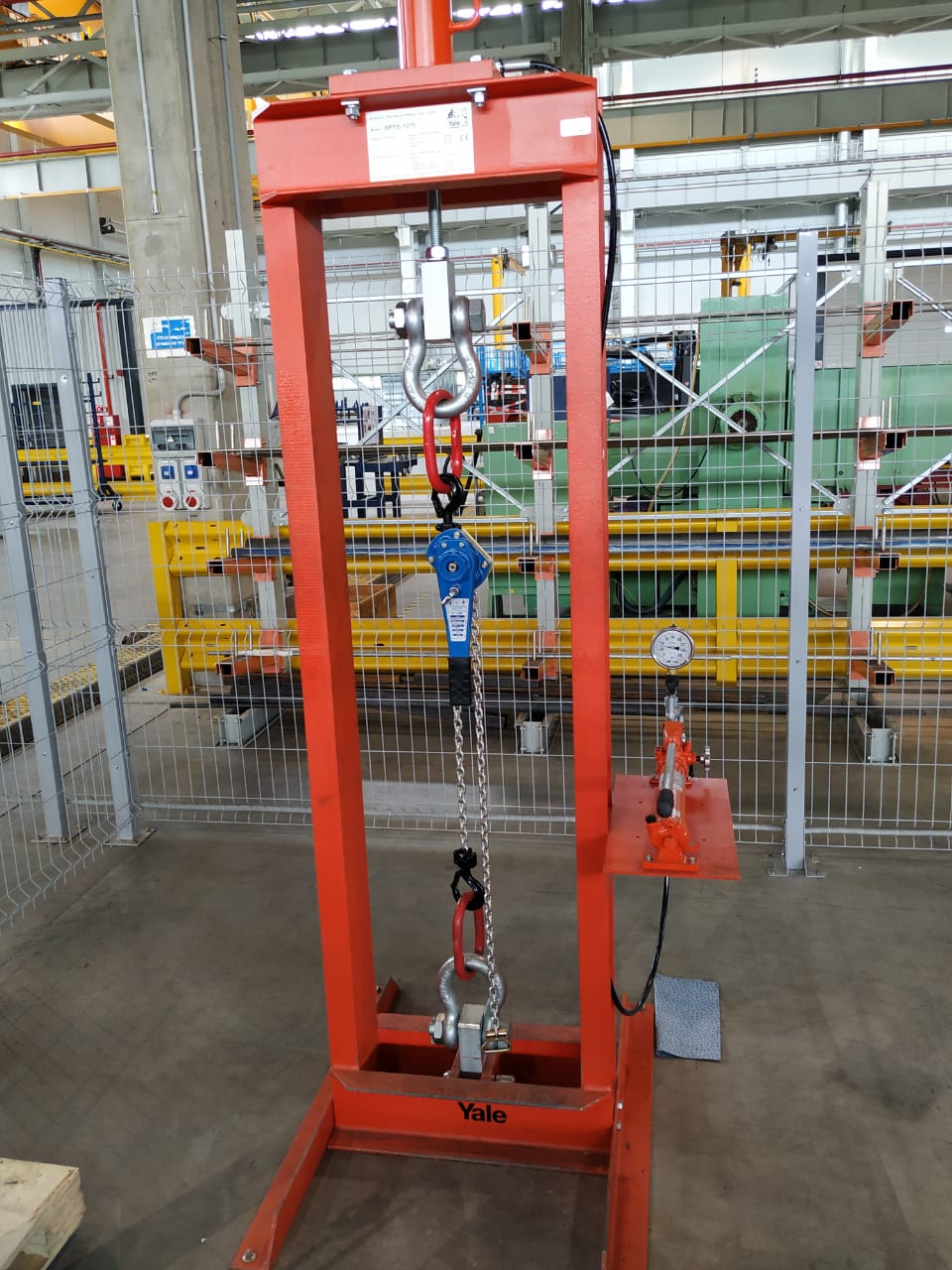

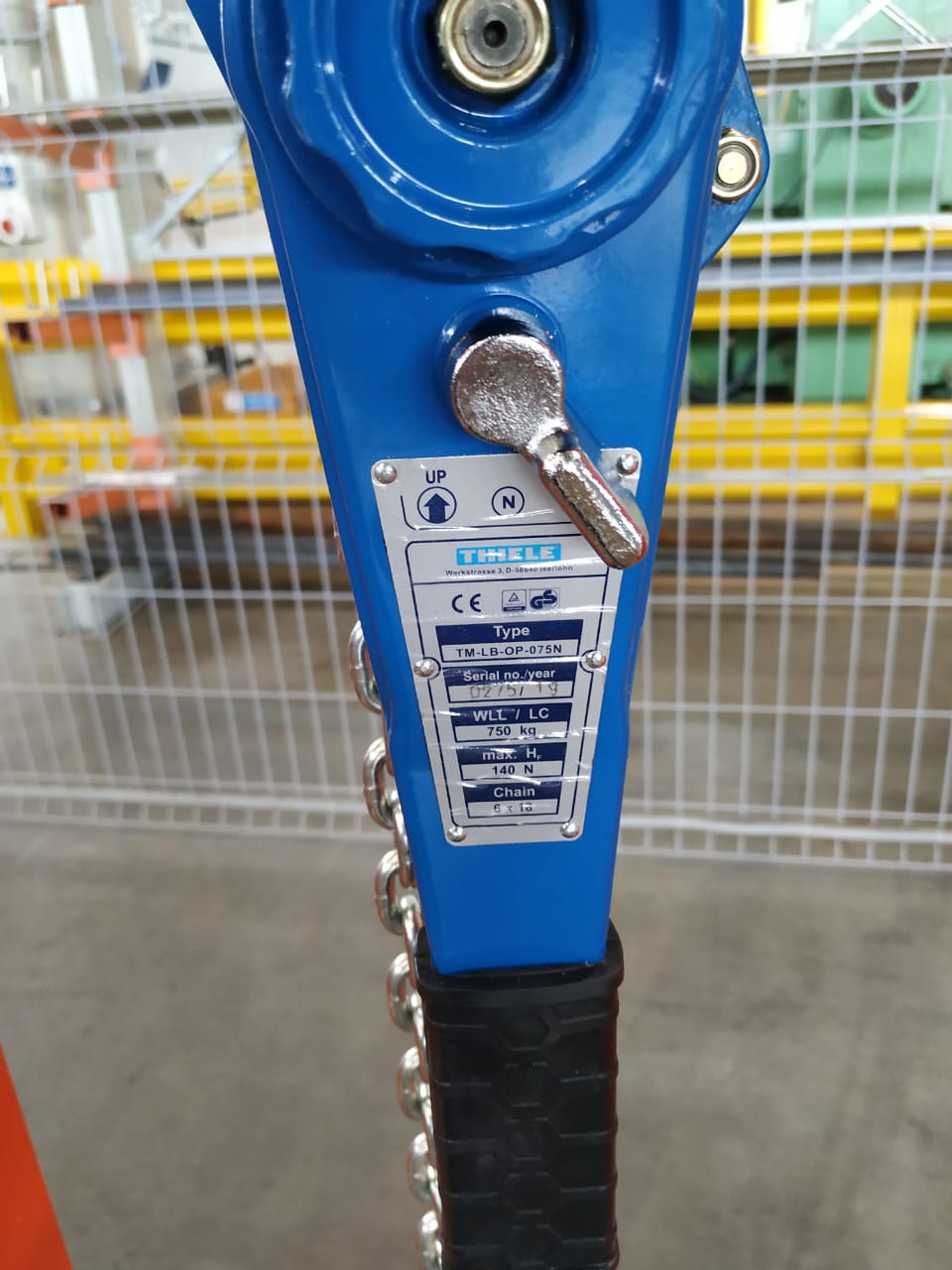

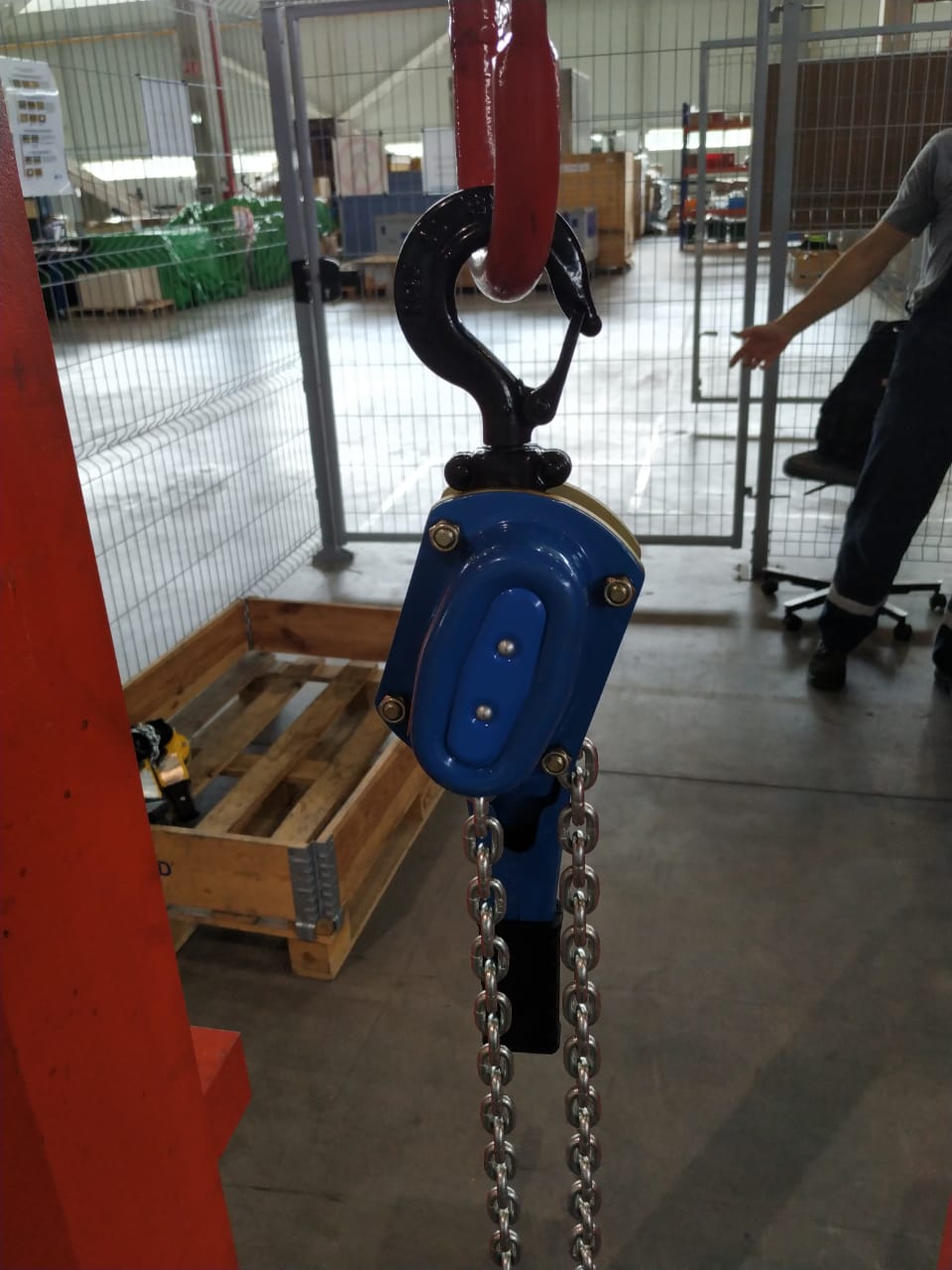

The TM lever blocks TWN 1001 are hand operated portable devices for pulling, lifting and moving of loads. They can also be used as lashing devices in accordance to the DIN EN 12195-3. The integrated slipping clutch works as an overload protection. The galvanized THIELE-load chains TWN 0062 comply with the requirements of the DIN EN 818-7.
Advantages for your Application:
- With overload protection
- Lightweight robust steel construction
- Super strength THIELE alloy load chain as per EN818-7, galvanized
- Minimum headroom
- Minimum effort to raise maximum load by easy handling
- Hooks with strong cast steel safety latches
- Lower hook easy turnable with roller bearing
- Also approved for tensioning as per EN 12195 (only TM-Lever Block)
- Fully enclosed gear train (TM-Chain Block only)
- Protected automatic weston brake with unique twin pawls
- Galvanised handchain as standard (TM-chain block only)
- Durable baked enamel paint protection
- Spare parts available
- TÜV / GS / CE approved
- Supplied with THIELE test certificates
- Manuals available in 5 languages
|
|
Unit | TM-LB 025 | TM-LB-OP 075N | TM-LB-OP 150N | TM-LB-OP 300N | TM-LB-OP 600N |
|---|---|---|---|---|---|---|
|
Working Load Limit (Lashing Capacity) |
[t max.] | 0,25 | 0,75 | 1,50 | 3,00 | 6,00 |
| Lift app. 1,50 m | [Art.№] | F061901 | F062411 | F062511 | F062611 | F062711 |
| Lift app. 3,05 m | [Art.№] | F061902 | F062412 | F062512 | F062612 | F062712 |
| Lift app. 4,60 m | [Art.№] | F061903 | F062413 | F062513 | F062613 | F062713 |
| Lift app. 6,10 m | [Art.№] | F062904 | F062414 | F062514 | F062614 | F062714 |
| Falls of chain | [pieces] | 1 | 1 | 1 | 1 | 2 |
| Effort to lift for max. Working Load | [kg] | 2,50 | 14,00 | 22,00 | 32,00 | 34,00 |
| Loadchain diameter | [mm] | 4 | 6 | 8 | 10 | 10 |
| Length of lever handle (D) | [mm] | 160 | 280 | 410 | 410 | 410 |
| Headroom (A) | [mm] | 230 | 325 | 380 | 480 | 620 |
| Width (B) | [mm] | 85 | 136 | 160 | 180 | 235 |
| Depth (C) | [mm] | 92 | 148 | 172 | 200 | 200 |
| Hook opening (upper) | [mm] | 25 | 42 | 46 | 54 | 62 |
| Hook opening (lower) | [mm] | 25 | 42 | 46 | 54 | 62 |
| Net weight | [kg] | 1,80 | 7,00 | 11,00 | 21,00 |
31,00 |
Spare Parts TM Series for Lever Blocks TWN 1001
TWN 1012 (Ratchet Disc Assy. Part 21N)
| Art.№ | for TM-Lever Block Type |
Weight [kg] |
|---|---|---|
| Z09455 | TM-LB-OP 075N | 0,13 |
| Z09454 | TM-LB-OP 150N | 0,20 |
| Z09456 | TM-LB-OP 300N/600N | 0,25 |
TWN 1014 (Safety Clip Part-No. 9N)
| Art.№ | for TM-Lever Block Type |
Weight [kg] |
|---|---|---|
| Z09976 | TM-LB-OP 075N | 0,03 |
| Z09977 | TM-LB-OP 150N | 0,04 |
| Z09978 | TM-LB-OP 300N |
0,05 |
| Z09979 | TM-LB-OP 600N |
0,06 |
TWN 1016 (Top Hook Assy Part-No. 8N)
| Art.№ | for TM-Lever Block Type |
Working Load Limit [t max.] |
Weight [kg] |
|---|---|---|---|
| Z09968 | TM-LB-OP 075N | 0,75 | 0,49 |
| Z09969 | TM-LB-OP 150N | 1,50 | 0,88 |
| Z09970 | TM-LB-OP 300N | 3,00 |
2,20 |
| Z09971 | TM-LB-OP 600N | 6,00 | 4,50 |
TWN 1018 (Bottom Hook Assy Part-No. 10N)
| Art.№ | for TM-Lever Block Type |
Working Load Limit [t max.] |
Weight [kg] |
|---|---|---|---|
| Z09972 | TM-LB-OP 075N | 0,75 | 0,50 |
| Z09973 | TM-LB-OP 150N | 1,50 | 0,95 |
| Z09974 | TM-LB-OP 300N | 3,00 |
2,50 |
| Z09975 | TM-LB-OP 600N | 6,00 |
6,70 |
