| Сountry of origin | Germany |
|---|---|
| Brand | THIELE |
| Purpose | Chain / wire rope / soft sling component |
| Safety factor | 4:1 |
| Colour | RAL 5002 |

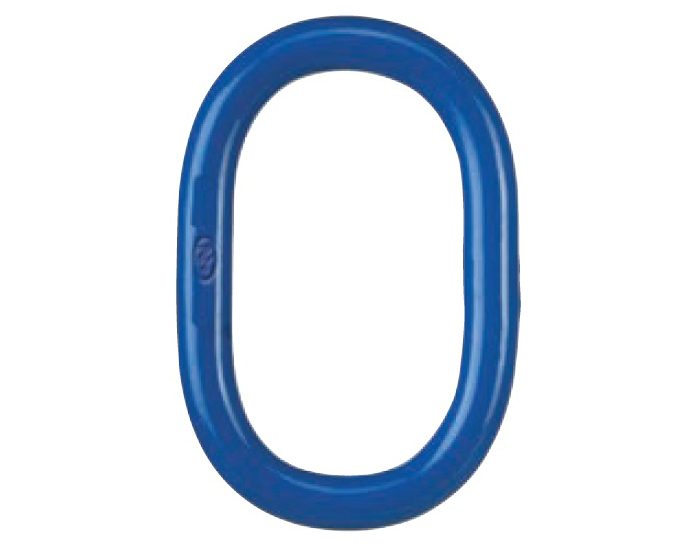

The grade 100 master links TWN 1813 are used to assemble 1- and 2-leg chain slings. The manufacturing and testing requirements are based on DIN EN 1677 parts 1 and 4, under consideration of grade 100 load capacities. The dimensions comply with the DIN 5688-3 and enable the use of connecting links, e.g. XL-LOKs TWN 1820. The possibility of using the links for single- and double-leg chain slings offers a high flexibility and economical warehousing. Furthermore, the master links can be used for example to assemble wire rope slings according to the DIN EN 13414-1.
| Art.№ |
Working Load Limit [t max.] |
Trade Size 1-Leg |
Trade Size 2-Leg |

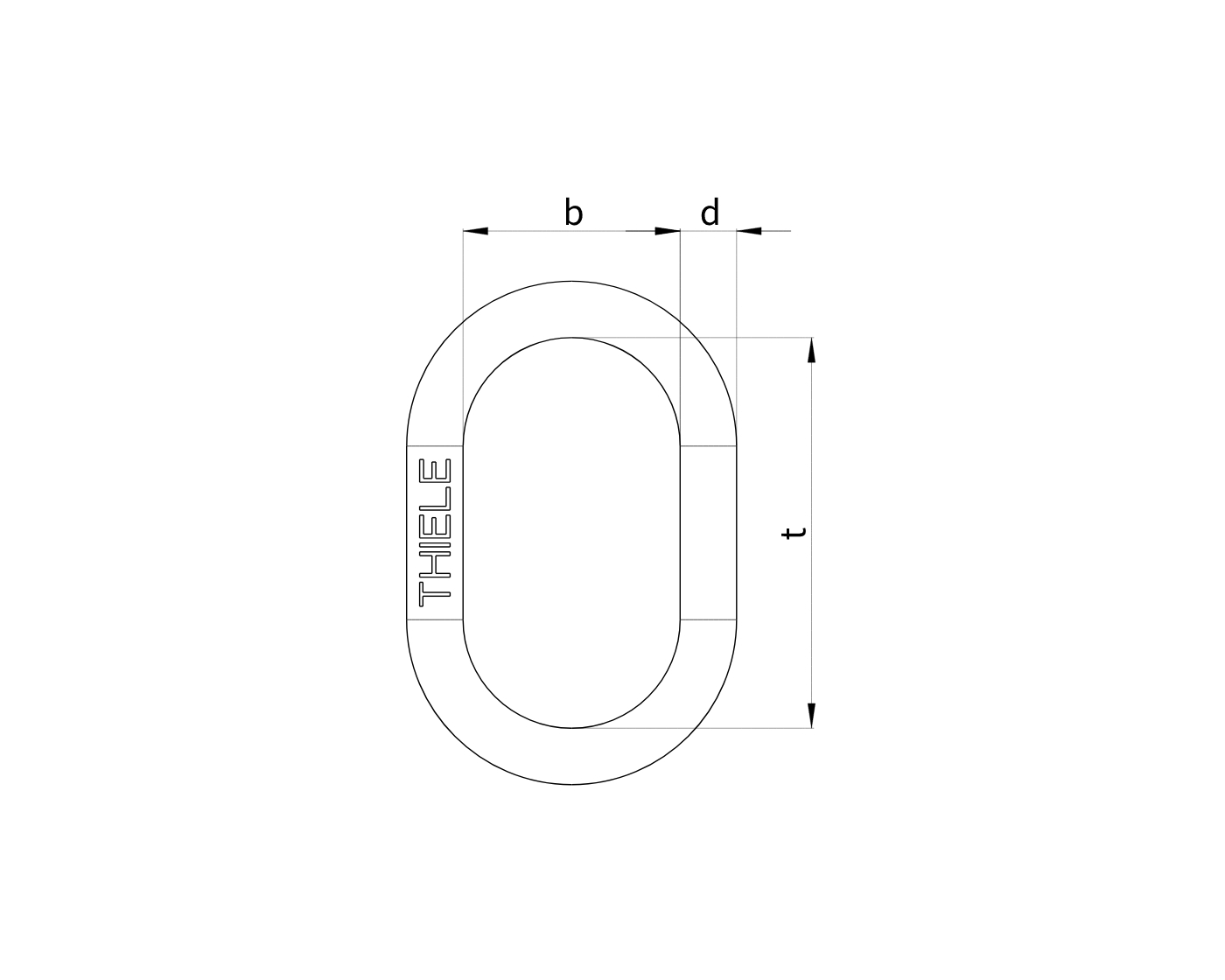

D [mm] |
T [mm] |
B [mm] |
Weight [kg] |
|---|---|---|---|---|---|---|---|
|
F1813013 |
2,50 | 6/7-10 | 6-10 | 13 | 90 | 50 | 0,30 |
| F1813016 | 4,00 | 8-10 | (7-10) | 16 | 110 | 60 | 0,50 |
| F1813018 | 5,00 | 10-10 | 8-10 | 18 | 130 | 70 | 0,79 |
| F1813020 | 6,00 | - | 10-10 | 20 | 140 | 80 | 1,24 |
|
F1813022 |
7,10 | 13-10 | - | 22 | 160 | 90 | 1,50 |
| F1813026 | 10,00 | 16-10 | 13-10 | 26 | 180 | 100 | 2,33 |
| F1813032 | 15,00 | 18-10 | 16-10 | 32 | 230 | 125 | 4,40 |
| F1813036 | 20,00 | 20/22-10 | 18-10 | 36 | 250 | 140 | 6,20 |
| F1813040 | 23,60 | - | 20-10 | 40 | 290 | 160 | 8,80 |
| F1813045 | 30,00 | 26-10 | 22-10 | 45 | 320 | 175 | 12,00 |
| F1813050 | 40,00 | 32-10 | 26-10 | 50 | 340 | 190 | 16,00 |
| F1813056 | 50,00 | - | - | 56 | 380 | 210 | 23,00 |
| F1813063 | 60,00 | - | 32-10 | 63 | 430 | 240 | 33,00 |
| F1813070 | 75,00 | - | - | 70 | 470 | 260 | 44,00 |
