Сountry of origin Germany
Brand HTS
Use A battery powered load moving steering skate with an integrated lifting turntable
Note Simple steering with only one joystick
Note Special parts are available upon request

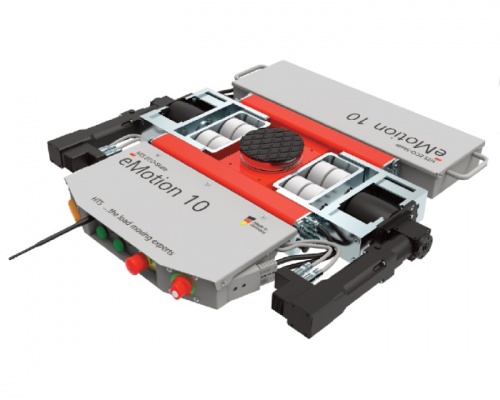

Save with the new space miracle ECO-Skate® eMotion 10: The smallest ECO-Skate® eMotion 10 can handle and move loads up to 10 tonnes by radio remote control without additional pushing or pulling devices. You no longer need large pulling devices and shorten the total length of the load to be moved by up to six meters or more. You can use the HTS Single-Joystick radio remote control to move loads with only one finger in the tightest of spaces, precisely, at three speeds. The new and fully digital ECO-Skate® eMotion 10 Drive Control eMDC4 as well as a completely newly developed drive train enables a height of only 110mm. The ECO-Skate® eMotion 10 is also equipped with a very compact and powerful 48V lithium iron phosphate battery technology. The control and the battery can be dismantled in a few simple steps to fit in every car.

The following distinguishes the ECO-Skate® eMotion :

  • Compact design with small external dimensions
  • Simple steering with only one joystick
  • Powerful digitally controlled engines
  • Any existing XL-series can be combined
  • Ideal for applications when space is narrow (no need for pull means)

Type  EMOTION 10 IN80S**
Part number 10.100.51.10  10.080.01.20
Capacity [kg]
5.000  2 x 4.000
Capacity as set [kg]
10.000 10.000
360° turn [mm]
1.085 -
Wheel size [mm]
85 x 43,5 85 x 87
Number of wheels 8 + 2 2 x 4
Load area [mm]
170 120 x 220

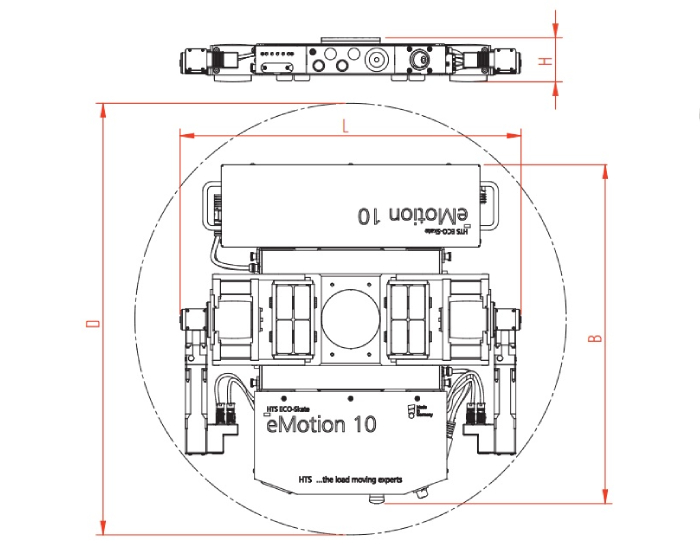

Dimensions [mm]
866 x 861 x 110  291 x 220 x 110
Adjustability [mm]
- 420 - 1.100
Running time [min]
180 -
Weight [kg]
93 25
Set eMotion 10 + iN80S Set
