Сountry of origin | Germany |
---|---|
Brand | HTS |
Use | Load moving skate |
Note | All load moving skates are delivered as standard with pulling bar and alignment bars as well as HTS polyurethane wheels and can be combined with each other as required |
Height | 60 mm |
Note | Special parts are available upon request |
The ECO-Skate® MINI series has a particularly low installation height of just 60 millimeters and, with a total load capacity of 5 or 10 tons, allows it to be used on machines or other heavy parts at low room heights. All load moving skates are delivered as standard with pulling bar and alignment bars as well as HTS nylon wheels and can be combined with each other as required. The sum of the individual load capacities results in the total load. The wheels of the ECO-Skate® MINI series can also be ordered separately.
The following distinguishes the transport trolleys of the ECO-Skate MINI (NY) series:
- Pulling bar and alignment bar - The transport trolleys of the MINI series come standard with pulling bar and alignment bar. Special lengths on request.
- Low weight - Practical grips, which are attached to all suspensions, and low weight makes the MINI series a flexible companion.

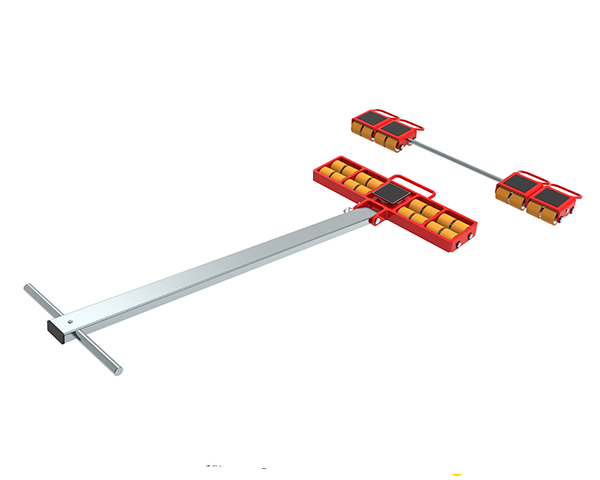

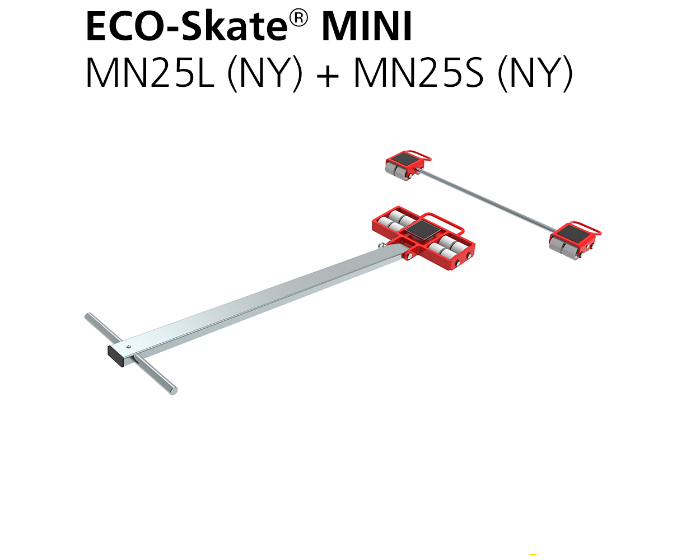

- Can be combined - All transport trolleys of the MINI series can be combined with one another as desired. The total load results from the sum of the individual load capacities.
- HTS wheels - The Skates are equipped as standard with HTS high quality nylon wheels, which can also be ordered separately.

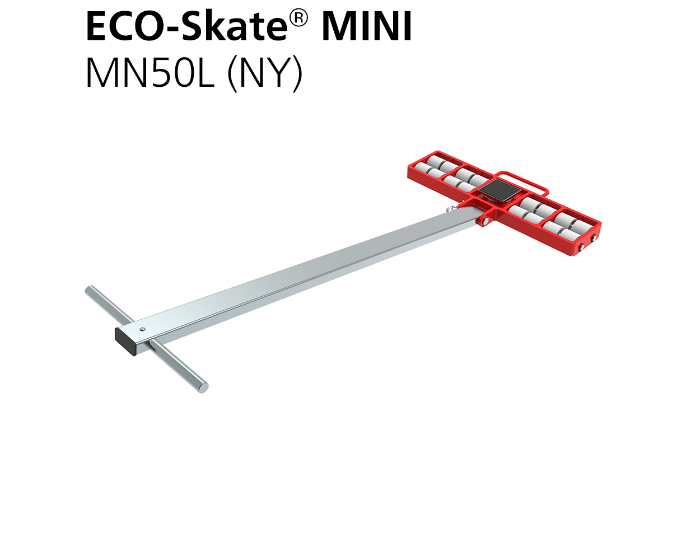

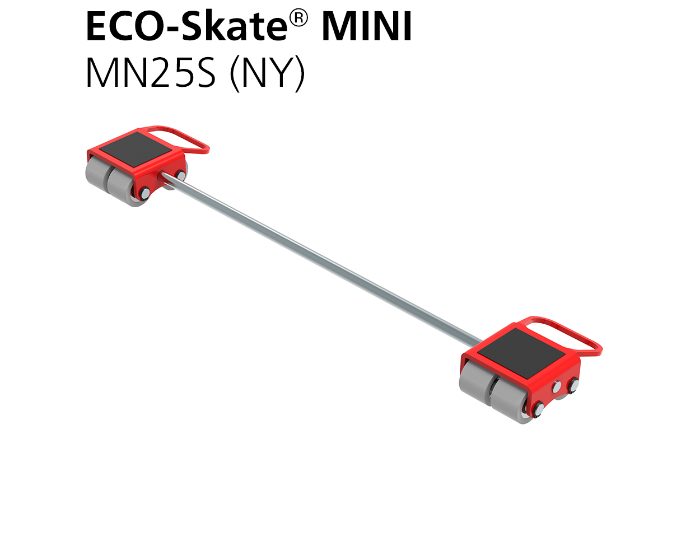

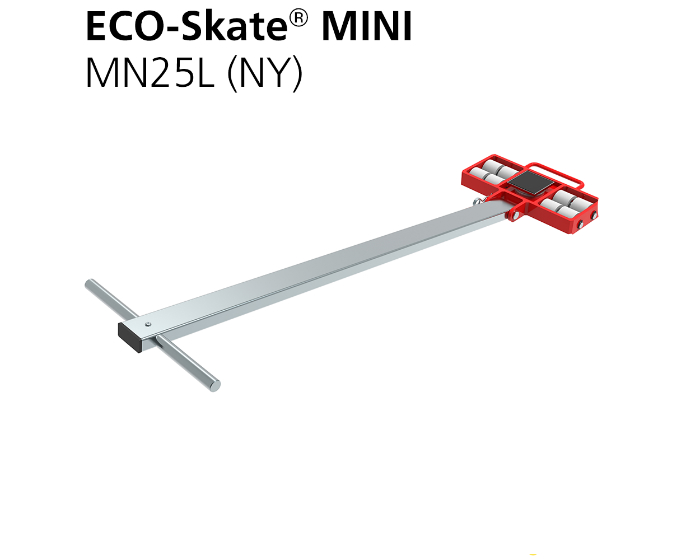

Type | MN25L (NY) | MN25S (NY) | MN50L (NY) | MN50S (NY) |
---|---|---|---|---|
Part number | 10.025.08.10 |
10.025.08.20 |
10.050.08.10 |
10.050.08.20 |
Capacity [kg] |
2.500 | 2 x 1.250 | 5.000 | 4 x 1.250 |
Capacity as set [kg] |
5.000 | 5.000 | 10.000 | 10.000 |
Wheel size [mm] |
50 x 46 | 50 x 46 | 50 x 46 | 50 x 46 |
Number of wheels | 8 | 2 x 4 | 16 | 2 x 8 |
Load area [mm] |
80 x 80 | 75 x 75 | 80 x 80 | 75 x 75 |

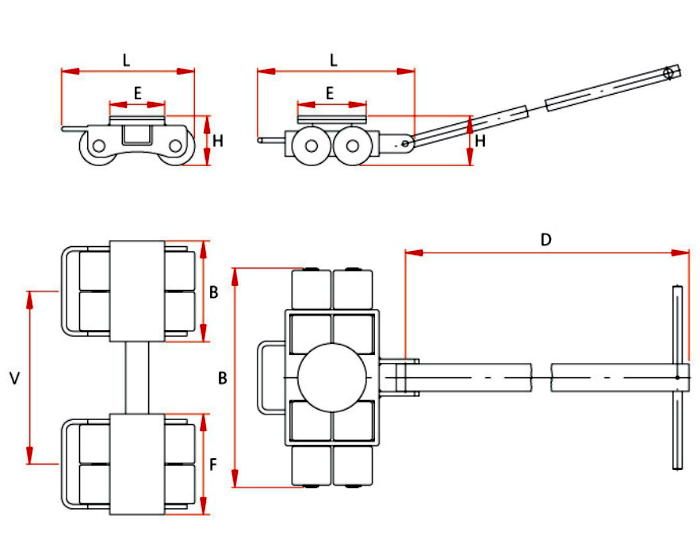

Dimensions [mm] |
250 x 329 x 60 | 162 x 114 x 60 | 250 x 533 x 60 | 162 x 221 x 60 |
Handle length [mm] |
1.000 | - | 1.000 | - |
Adjustability [mm] |
- | 116 - 690 | - | 348 - 690 |
Weight [kg] |
9,5 | 4,65 | 12,6 | 8 |
For all areas of application in which the standard range from the standard range is insufficient, we design special solutions that are individually tailored to the customer
