Сountry of origin | Germany |
---|---|
Brand | HTS |
Use | Transport skates are ideally suited for ISO container transport |
Note | Maximum speed is 2 km/h |
Note | Type IC120D/S TLS = Twist Lock System /Container transport |
Note | TLS = Twist Lock System /Container transport |

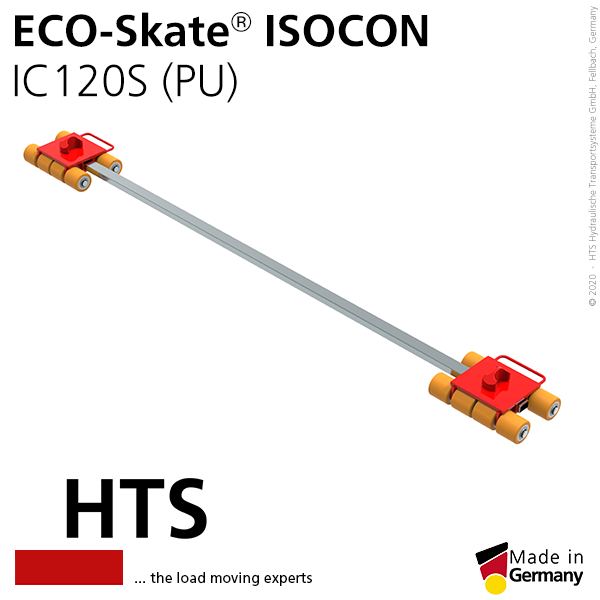

The ECO-Skate ISOCON transport skates are ideally suited for ISO container transport. The trolleys can also be adapted for special dimensions. All ECO-Skate ISOCON container skates are equipped with high-quality HTS polyurethane wheels. With ECO-Skate ISOCON container skates with roller size of Ø85 mm, the container cones prevent the container from slipping off. Maximum speed is 2 km/h.
Type | IC60D | IC60S | IC120D | IC120S |
---|---|---|---|---|
Part number |
10.060.00.35 |
10.060.00.25 |
10.120.00.35 |
10.120.00.25 |
Capacity [kg] |
2 x 3.000 | 2 x 3.000 | 2 x 6.000 | 2 x 6.000 |
Capacity as set [kg] | 12.000 | 12.000 | 24.000 | 24.000 |
Wheel size [mm] |
85 x 87 | 85 x 87 | 85 x 87 | 85 x 87 |
Number of wheels | 2 x 4 | 2 x 4 | 2 x 8 | 2 x 8 |
Load area [mm] |
150 + Kegel | 120 x 220 + Kegel |
150 + Kegel |
120 x 220 + Kegel |
Dimensions [mm] |
717 x 2.540 x 102/162 |
291 x 2.500 x 102/162 |
963 x 2.740 x 102/162 |
291 x 2.641 x 102/162 |
Handle length [mm] |
1.250 | On request | 1.250 |
On request |
Distance cone center [mm] |
2.260 | 2.260 | 2.260 | 2.260 |
Weight [kg] |
60 | 35 | 88 | 50 |
