Сountry of origin | Germany |
---|---|
Brand | SpanSet |
Purpose | Rigging and load securing applications |
Finish | RAL 5001 |

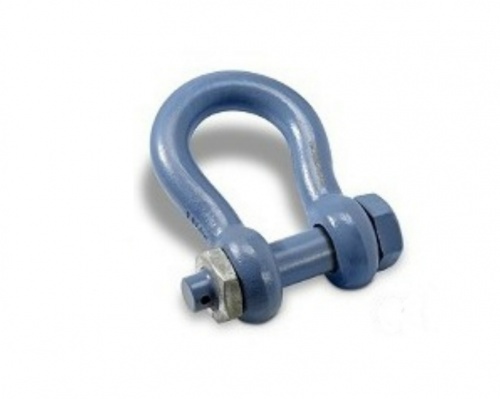

Optimal fit between the shackles and round slings
SpanSet has tested the ExoSet shackles in extensive test series in combination with the SpanSet round slings. This way, the optimal shackle for each round sling could be identified. This was achieved by perfectly adapting the contact area inside the shackle bracket, whereby shackles and round slings with the same load capacity were tested. At the same time, the ExoSet shackles offer a consistently high manufacturing quality with low tolerances, and its contact surfaces are burr-free and polished.
The possible combinations of round sling and shackle were tested by SpanSet in cooperation with the DGUV (German Social Accident Insurance Institutions) and subsequently approved. With the ExoSet round sling shackles, users can for the first time benefit from shackles and round slings that have been perfectly adapted to one another and that offer the highest possible level of safety.
Optional mit RFID-Transponder Starting from a load capacity of 25 t, the ExoSet shackles can be optionally fitted with an RFID transponder . The ultra-compact transponder pin „IDXpin“ is used for this.
You can optionally ask to have the ExoSet round sling shackles engraved with individual data, such as the traceability code. Shackle with the ultra-compact transponder pin for electronic asset management.
Features and benefits:
- Shackles and round slings are perfectly adapted to one another
- Optional fitting with an RFID transponder

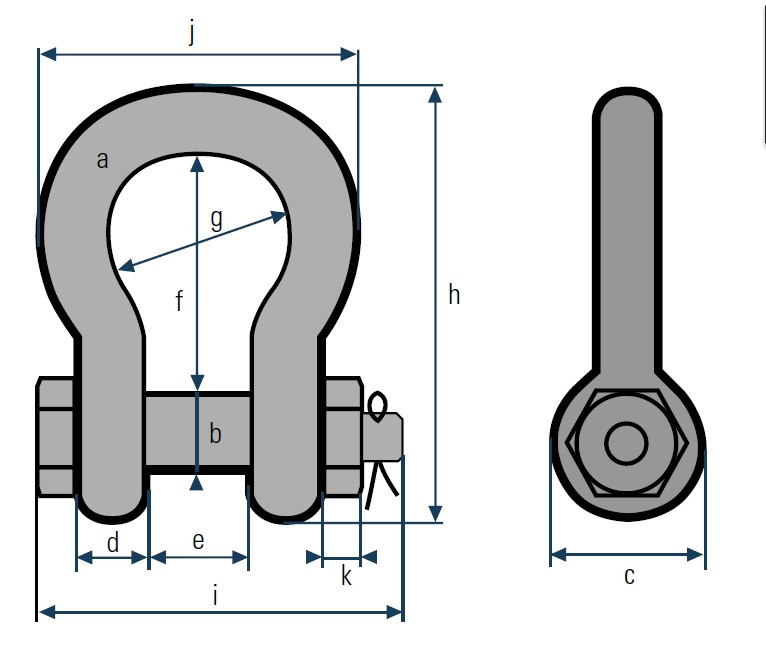

Model |
Capacity [kg] |
a [mm] |
b [mm] |
c [mm] |
d [mm] |
e [mm] |
f [mm] |
g [mm] |
h [mm] |
i [mm] |
j [mm] |
k [mm] |
Weight [kg] |
Art.№ |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ExoSet 2 |
2.000 | 13,5 | 16 | 34 | 13,5 | 22 | 51 | 32 | 91 | 83 | 63 | 13 | 0,42 | D041552 |
ExoSet 3.25 | 3.250 | 16 | 19 | 40 | 16 | 27 | 64 | 43 | 114 | 99 | 79 | 17 | 0,74 | D041553 |
ExoSet 4.75 | 4.750 | 19 | 22 | 47 | 19 | 31 | 76 | 51 | 135 | 115 | 94 | 20 | 1,18 | D041554 |
ExoSet 6.5 | 6.500 | 22 | 25 | 53 | 22 | 36 | 83 | 58 | 157 | 131 | 107 | 23 | 1,77 | D041555 |
ExoSet 8.5 | 8.500 | 25 | 28 | 60 | 25 | 43 | 95 | 68 | 176 | 151 | 124 | 25 | 2,58 | D041556 |
ExoSet 12 | 12.000 | 32 | 35 | 74 | 32 | 51 | 115 | 83 | 218 | 179 | 154 | 31 | 4,91 | D041557 |
ExoSet 25 | 25.000 | 45 | 50 | 104 | 45 | 74 | 178 | 126 | 314 | 244 | 226 | 24 | 14,22 | D041559 |
ExoSet 35 |
35.000 | 50 | 57 | 111 | 50 | 83 | 197 | 134 | 358 | 270 | 250 | 27 | 19,85 | D041560 |
ExoSet 55 |
55.000 | 65 | 70 | 145 | 65 | 105 | 260 | 150 | 463 | 330 | 329 | 33 | 39,59 | D041560 |
ExoSet 85 |
85.000 | 75 | 83 | 163 | 75 | 127 | 329 | 190 | 556 | 376 | 355 | 40 | 62,00 | D041560 |
