Сountry of origin | Germany |
---|---|
Brand | SpanSet |
Purpose | Sling Components |
Safety factor | 4:1 |
Norms | DIN EN 1677 |

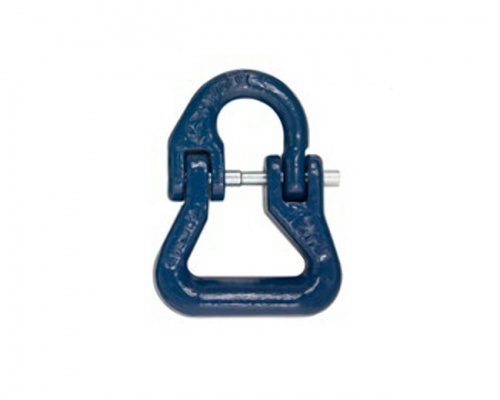

Particularly robust: forged fittings protect the round sling from wear thanks to an intelligent design.

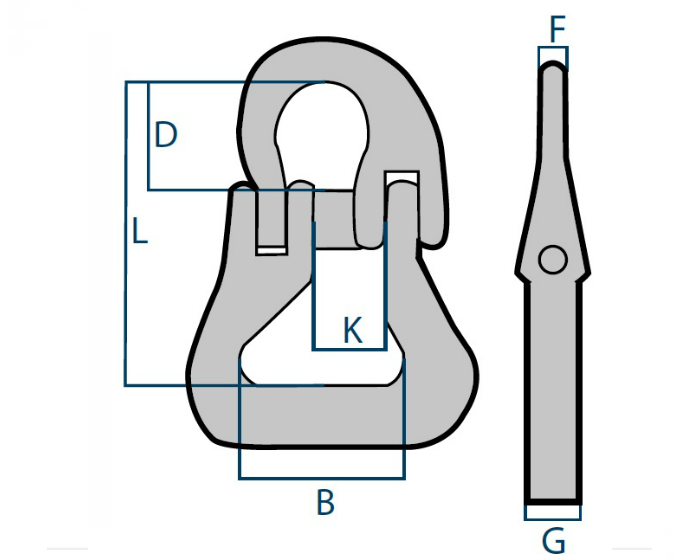

Model |
Capacity [kg] |
B [mm] |
D [mm] |
F [mm] |
G [mm] |
K [mm] |
L [mm] |
Weight [kg] |
Art.№ |
---|---|---|---|---|---|---|---|---|---|
KE 2,0 | 2.000 | 40 | 22 | 9 | 26 | 18 | 63 | 0,30 | D001105 |
KE 3,15 | 3.150 | 47 | 26 | 12 | 30 | 24 | 76 | 0,60 | D001134 |
KE 5,3 | 5.300 | 53 | 33 | 15 | 37 | 29 | 94 | 1,10 | D001136 |
KE 8,0 | 8.000 | 67 | 40 | 22 | 44 | 35 | 114 | 1,90 | D001138 |
KE 12,5 | 12.500 | 80 | 48 | 22 | 53 | 43 | 134 |
3,00 |
D001140 |
KE 15,0 | 15.000 | 125 | 60 | 24 | 70 | 50 | 187 | 7,00 | D004255 |
KE 21,2 | 21.200 | 150 | 61 | 29 | 86 | 58 | 209 | 11,50 | D008630 |
KE 31,5 | 31.500 | 155 | 78 | 36 | 100 | 64 | 250 | 20,80 | D001142 |
