Сountry of origin | Germany |
---|---|
Brand | SpanSet |
Purpose | Fit most lifting applications |
Safety factor | 7:1 |
Main Material | PES - Polyester |
Norms | DIN EN 1492-2 |

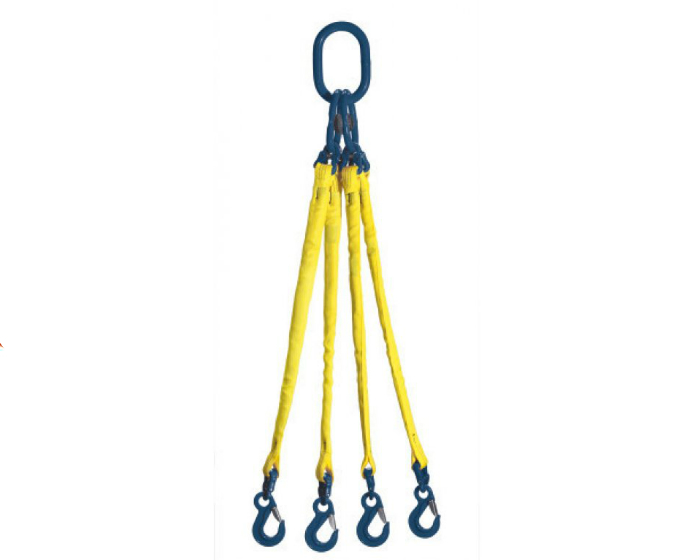

4-leg RS sling type LS – the perfect balance
If you want to lift particularly bulky or valuable loads, you want to have full control over their position – at all times. The 4-leg round sling offers you precisely that. Four round slings in SpanSet quality, each at a precisely defined length, make symmetrical lifting easier than ever before. The suspension of the load from four attachment points ensures that the load can tilt neither in the longitudinal nor in the transverse direction. At an angle below 45° you can achieve a load capacity of up to 63 t.
Modular system saves costs All fittings of the multi-leg round slings are manufactured using grade 8 and 10 robust steel. Based on the tried-and-tested modular system, you can replace each part of the multi-leg round sling individually – whether it‘s a round sling or a fitting. This significantly reduces your maintenance costs. With the optional RFID transponder you can also considerably simplify the documentation of inspections of your RS slings.
Features and benefits:
- Optional fitting with an RFID transponder;
- Ideal in combination with attachment points;
- Particularly robust: forged fittings protect the round sling from wear thanks to an intelligent design;
- Replacement of parts based on the modular principle;
- Identification with a plaque
Model |
Capacity [kg] |
Capacity to 45° [t] |
Capacity to 60 [t] |
L1 min. [m] |
L1 max. [m] |
Approx. weight 1st m [kg] |
Approx. weight per running m [kg] |
4 x LS | 8 x KE | 1 x KRR |
Art.№ 1,0 М |
Art.№ 2,0 М |
---|---|---|---|---|---|---|---|---|---|---|---|---|
RSG-4-2100LS/KE | 2,1 | 2,1 | 1,5 | 0,375 | 10 | 9,1 | 1,2 | 1,5 | KE 2,0 | 3,0 | D062885 | D062894 |
RSG-4-4200LS/KE | 4,2 | 4,2 | 3,0 | 0,375 | 10 | 11,8 | 2 | 2,5 | KE 2,0 | 5,3 | D062886 | D062895 |
RSG-4-6300LS/KE | 6,3 | 6,3 | 4,5 | 0,375 | 20 | 18,4 | 3,2 | 4,0 | KE 3,15 | 8,0 | D062887 | D062896 |
RSG-4-8400LS/KE | 8,4 | 8,4 | 6,0 | 0,375 | 20 | 27,1 | 4 | 4,0 | KE 5,3 | 14,0 | D062888 | D062897 |
RSG-4-10500LS/KE | 10,5 | 10,5 | 7,5 | 0,375 | 20 | 32,0 | 4,4 | 6,7 | KE 5,3 | 14,0 | D062889 | D062898 |
RSG-4-12600LS/KE | 12,6 | 12,6 | 9,0 | 1,0 | 20 | 43,0 | 5,6 | 6,7 | KE 8,0 | 14,0 | D062890 | D062899 |
RSG-4-16800LS/KE | 16,8 | 16,8 | 12,0 | 1,0 | 20 | 46,3 | 7,2 | 10,0 | KE 8,0 | 21,2 | D062891 | D062900 |
RSG-4-21000LS/KE | 21,0 | 21 | 15,0 | 2,5 | 50 | 102,0 | 10 | 10,0 | KE 12,5 | 21,2 | D062892 | D062901 |
RSG-4-31500LS/KE | 31,5 | 31,5 | 22,5 | 2,5 | 50 | 168,0 | 14 | 16,0 | KE 15,0 | 33,5 | D062893 | D062902 |
RSG-4-42000LS/KE | 42,0 | 42 | 30,0 | 2,5 | 50 | 260,0 | 20 | 20,0 | KE 21,5 | 53,0 | D016659 | D021718 |
RSG-4-52500LS/KE | 52,5 | 52,5 | 37,5 | 2,5 | 50 | 343,0 | 24 | 27,0 | KE 31,5 | 53,0 | D016660 | D021721 |
RSG-4-63000LS/KE | 63,0 | 63 | 45 | 2,5 | 50 | 363,0 | 32 | 31,5 | KE 31,5 | 70,0 | D016661 | D021722 |
