Сountry of origin | Germany |
---|---|
Brand | SpanSet |
Purpose | Fit most lifting applications |
Safety factor | 7:1 |
Main Material | PES - Polyester |
Norms | DIN EN 1492-2 |
SpanSet VarioWeb – for lifting asymmetrical loads
A common problem: The centre of gravity of a load is not in the centre and the lifting gear has the wrong length. All you need now is lifting gear with an adjustable length in order to lift the load in „balance“ – VarioWeb.
Continuously adjust strap lengths
VarioWeb is ideal for lifting asymmetrical loads: The individual legs of the multi-leg slings are fitted with shortening elements. Thanks to the intelligent mechanics, the individual legs can be continuously adjusted. In this way you can optimally balance any load and ensure an even transmission of forces. The maintenance of the VarioWeb system is very economical and flexible. Thanks to the modular design, only the defective parts have to be replaced.
Adjustable and safe

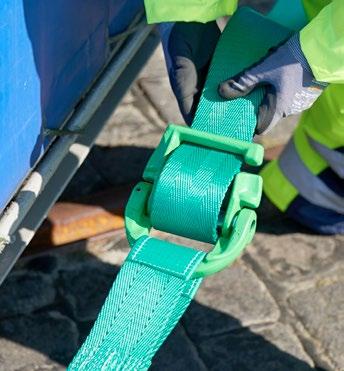

The VarioWeb elements are drop-forged of special-quality steel and are very robust. They have no burrs and no edges that can damage the strap and are shaped such that the straps have full contact with the load. This minimises the wear on the edge and considerably extends the service life of your lifting gear. The load capacity indicator, identified by the colour of the strap in accordance with DIN EN 1492-1, precludes mix-ups. Of course we manufacture the VarioWeb fittings precisely according to your wishes and deliver them fully assembled.
Features and benefits:
- Continuously adjustable multi-leg slings;
- Lifting of asymmetrical loads;
- Particularly robust: forged fittings protect the strap from wear thanks to an intelligent design;
- Replacement of parts based on the modular principle;
- Identification with a plaque
Model |
Capacity [kg] |
Components |
L1 min. [m] |
Can be shortened to [mm] |
Approx. weight per running m [kg] |
Art.№ |
---|---|---|---|---|---|---|
VW1-1000-1ASH | 1.000 | 1xKR · 1xVW · 1xTA · 1xVB · 1xASH | 2 | 960 | 2,82 | W1.1A10.00 |
VW1-2000-1ASH | 2.000 |
1xKR · 1xVW · 1xTA · 1xVB · 1xASH |
2 |
1290 | 6,15 | W1.1A20.00 |
VW1-1000-1LS |
1.000 |
1xKR · 1xVW · 1xTA · 2xVB · 1xLS |
2 |
730 | 2,62 | W1.1L10.00 |
VW1-2000-1LS |
2.000 |
1xKR · 1xVW · 1xTA · 2xVB · 1xLS |
2 |
880 | 5,35 | W1.1L20.00 |
VW2-1400-1ASH | 1.400 | 1xKR · 1xVW · 2xTA · 2xVB · 2xASH | 20 | 960 | 5,24 | W2.1A14.00 |
VW2-2800-1ASH | 2.800 | 1xKR · 1xVW · 2xTA · 2xVB · 2xASH |
2 |
1290 | 11,50 | W2.1A28.00 |
VW2-1400-1LS |
1.400 |
1xKR · 1xVW · 3xTA · 4xVB · 2xLS |
2 |
730 | 5,04 | W2.1L14.00 |
VW2-2800-1LS |
2.800 |
1xKR · 1xVW · 3xTA · 4xVB · 2xLS |
2 |
880 | 10,30 | W2.1L28.00 |
VW2-1400-2ASH |
1.400 |
1xKR · 2xVW · 2xTA · 2xVB · 2xASH |
2 |
960 | 5,24 | W2.2A14.00 |
VW2-2800-2ASH |
2.800 |
1xKR · 2xVW · 2xTA · 2xVB · 2xASH |
2 |
1290 | 11,50 | W2.2A28.00 |
VW2-1400-2LS |
1.400 |
1xKR · 2xVW · 2xTA · 4xVB · 2xLS |
2 |
730 | 5,04 | W2.2L14.00 |
VW2-2800-2LS |
2.800 |
1xKR · 2xVW · 2xTA · 4xVB · 2xLS |
2 |
880 | 10,30 | W2.2L28.00 |
VW4-2100-2ASH | 2.100 | 1xKRR · 2xVW · 4xTA · 4xVB · 4xASH | 2 | 1120 | 8,28 | W4.2A21.00 |
VW4-4200-2ASH | 4.200 | 1xKRR · 2xVW · 4xTA · 4xVB · 4xASH | 2 | 1510 | 18,60 | W4.2A42.00 |
VW4-2100-2LS | 2.100 |
1xKRR · 2xVW · 4xTA · 8xVB · 4xLS |
2 | 890 | 7,58 | W4.2L21.00 |
VW4-4200-2LS | 4.200 | 1xKRR · 2xVW · 4xTA · 8xVB · 4xLS | 2 | 1060 | 18,63 | W4.2L42.00 |
VW4-2100-4ASH | 2.100 | 1xKRR · 4xVW · 4xTA · 4xVB · 4xASH | 2 | 1120 | 10,48 | W4.4A21.00 |
VW4-4200-4ASH | 4.200 | 1xKRR · 4xVW · 4xTA · 4xVB · 4xASH | 2 | 1510 | 23,60 | W4.4A42.00 |
VW4-2100-4LS | 2.100 | 1xKRR · 4xVW · 4xTA · 8xVB · 4xLS | 2 | 890 | 10,08 | W4.4L21.00 |
VW4-4200-4LS | 4.200 | 1xKRR · 4xVW · 4xTA · 8xVB · 4xLS | 2 | 1060 |
20,00 |
W4.4L42.00 |
