Сountry of origin | Germany |
---|---|
Brand | SpanSet |
Purpose | The protection against „sharp edges“ |
Material | HMPE |
NoCut®sleeve – all-round cut protection for heavy-duty round slings

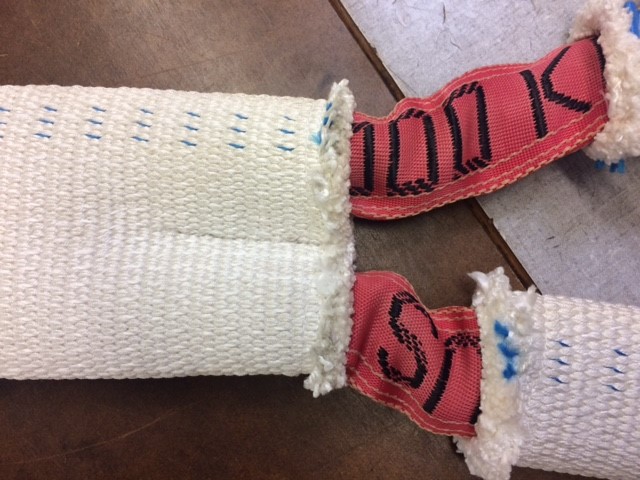

NoCut® sleeve also offers the perfect all-round cut protection for our heavy-duty round slings. Simply pulled onto the round sling, the protective sleeve made from HPME fibres protects heavyduty round slings with a load capacity of up to 25 t at the sharp edge of the load. NoCut® sleeve can also be fitted by the user as shown in Figure 3. Single legs of a round sling can also be fitted with NoCut® sleeve at the factory as shown in Figure 5. Ask us about it!
All-round protection with high cut resistance
The super-flexible NoCut® sleeve protective sleeve can also be easily positioned on the load in very tight spaces. During lifting procedures, the protective sleeve sits firmly on the load, while the round sling can move inside the sleeve. The design of the sleeve offers equally high cut resistance all around, which means that it can be used on both sides. In addition to a longer service life, the design also offers advantages in terms of occupational safety. Since the sleeve can be used on both sides, application errors on sharp-edged loads can be excluded.
Features and benefits:
- Low dead weight;
- Supple and flexible;
- High cut protection due to ribbed reinforcement;
- Versatile, as it can be used on both sides;
- Tested and certified;
- 2-ply, tear-resistant label
Suitable for MagnumPlus |
Nominal lifting capacity [kg] |
Designation NoCut sleeve |
Approx. inside width [mm] |
Approx. outside width [mm] |
Approx. outside height [mm] |
Approx. weight per running m [kg] |
Art.№ |
---|---|---|---|---|---|---|---|
Type: NoCut sleeve №3 |
|||||||
MagnumPlus 10000 |
10.000 |
NCS-195 | 195 | 205 |
13 |
1,6 | NCS.195.00 |
MagnumPlus 15000 |
15.000 |
NCS-255 |
255 |
265 |
13 |
2,0 |
NCS.255.00 |
MagnumPlus 20000 |
20.000 |
NCS-315 |
315 |
340 |
13 |
2,7 |
NCS.315.00 |
MagnumPlus 25000 |
25.000 |
NCS-315 |
315 |
340 |
13 |
2,7 |
NCS.315.00 |
Type: NoCut sleeve №5 |
|||||||
MagnumPlus 10000 |
10.000 |
NCS-135 |
135 | 145 | 13 |
1,1 |
NCS.135.00 |
MagnumPlus 15000 |
15.000 |
NCS-135 |
135 | 145 | 13 |
1,1 |
NCS.135.00 |
MagnumPlus 20000 |
20.000 |
NCS-165 |
165 | 175 | 13 |
1,4 |
NCS.165.00 |
MagnumPlus 25000 |
25.000 |
NCS-165 |
165 |
175 |
13 |
1,4 |
NCS.165.00 |
MagnumPlus 30000 |
30.000 |
NCS-195 |
195 | 205 | 13 |
1,6 |
NCS.195.00 |
MagnumPlus 40000 |
40.000 |
NCS-255 |
255 | 265 | 13 |
2,0 |
NCS.255.00 |
MagnumPlus 50000 |
50.000 |
NCS-255 |
255 | 265 | 13 |
2,0 |
NCS.255.00 |
NoCut®pad – protective plates against the sharp edge

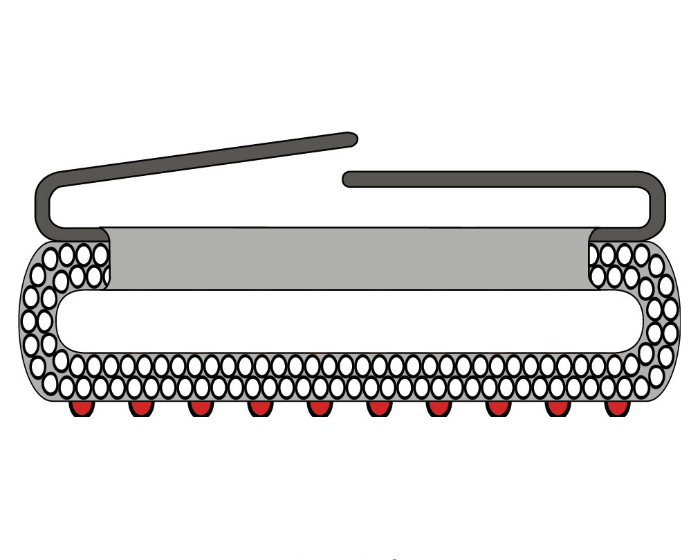

Alongside the NoCut® sleeve protective sleeve, SpanSet developed NoCut® pad, which is also made from woven HPME fibres. In the pad version, NoCut® sleeve is fitted with an inner fabric bridge equipped with fastening elements at both ends. Three alternatives are offered: Velcro strap, Velcro strap with a frame buckle or 2-piece metal buckle (frame or triple bridge).
NoCut® pad is fitted precisely where the lifting gear comes into contact with the sharp edge. A major advantage for the user, as this requires less material in addition to providing added safety when lifting sharp-edged loads. The size of the edge protection can be exactly dimensioned for the danger area and precisely positioned on the sharp edge. Although NoCut® pads normally come in short lengths, there are additional attachment loops available for the longer variants.
NoCut® pad comes in a 2- and 4-ply version. The 4-ply NoCut® pads offer an exceedingly high level of cut protection, so that the user can also carry out critical lifting procedures safely. As standard, the pads are produced in lengths from 500 mm to 1,500 mm in 250-mm increments.
NoCut® product finder Protect your SpanSet heavy-duty round slings with NoCut® pad against sharp edges. Even the extremely compact Magnum-X round sling can be used to lift loads of up to 30 t with the protective plates. The NoCut® product finder can easily help you find the right „pad“ for your round sling. In just a few steps, you can define the suitable NoCut® product.
Features and benefits:
- Perfect for use with sharp edges;
- Very low dead weight;
- Flexible construction;
- High operational safety due to tested quality;
- High cut resistance;
- Sewn label with handling instructions
Model | Number of layers |
Approx. inside width [mm] |
Approx. outside width [mm] |
Fastening method |
---|---|---|---|---|
NCP-145-KB | 2 | 135 | 145 | Velcro fastener |
NCP-175-KB |
2 |
165 |
175 |
Velcro fastener |
NCP-205-KB |
2 |
195 |
205 |
Velcro fastener |
NCP-265-KB |
2 |
255 |
265 |
Velcro fastener |
NCP-340-KB |
2 |
330 |
340 |
Velcro fastener |
NCP-145-KR | 2 | 135 | 145 | Velcro fastener with clasp |
NCP-145-KR | 4 | 135 | 145 | Velcro fastener with clasp |
NCP-175-KR | 2 | 165 | 175 | Velcro fastener with clasp |
NCP-175-KR | 4 | 165 | 175 | Velcro fastener with clasp |
NCP-205-KR | 2 |
195 |
205 |
Velcro fastener with clasp |
NCP-205-KR |
4 |
195 |
205 |
Velcro fastener with clasp |
NCP-265-KR | 2 | 255 |
265 |
Velcro fastener with clasp |
NCP-265-KR |
4 |
255 |
265 |
Velcro fastener with clasp |
NCP-340-KR |
2 | 330 | 340 | Velcro fastener with clasp |
NCP-145-ST | 2 | 135 | 145 | Snap buckles |
NCP-145-ST | 4 | 135 | 145 | Snap buckles |
NCP-175-ST | 2 | 165 | 175 | Snap buckles |
NCP-175-ST | 4 | 165 | 175 | Snap buckles |
NCP-205-ST |
2 | 195 | 205 | Snap buckles |
NCP-205-ST |
4 |
195 |
205 |
Snap buckles |
NCP-265-ST |
2 |
255 |
265 |
Snap buckles |
NCP-265-ST |
4 | 255 | 265 | Snap buckles |
NCP-340-ST |
2 | 330 | 340 |
Snap buckles |
