Сountry of origin Netherlands
Brand Terrier
Use Designed for lifting, handling and transporting of (oil) drums, where the drums have to stay in a laying position
Safety factor 5:1
Temperature range From -40°C to + 100°C
Note Easy to exchange parts which are available upon request

Terrier lifting clamps are working in harsh and dangerous areas on a daily basis. So absolute safety and safe lifting is our number one priority. All lifting clamps are tested on our in-house testing facilities up to 2 times the Working Load Limit (WLL). Terrier Lifting Clamps are designed on a break factor of even 5 times the WLL.

Each clamp has red signal colouring on lifting eye and locking lever for extra safety and is supplied with a test certificate. When using Terrier clamps please make sure to read safety instruction.

Vertical safety lifting clamps have been specifically and exclusively designed for the vertical lifting of steel drums. The TVK clamps consist of a body, cam & cam pins. The cam at the TVK clamp also functions as a lifting shackle and ensures that the drum is held firmly while it is being lifted.

Features and benefits:

  • Lightweight design for easy handling in tight spaces between other drums
  • Tough quality heavy duty welded shell body
  • Equipped with a manual safety lock mechanism so that the clamp is locked in the open position
  • Maintenance-friendly, easy to exchange parts which are available upon request

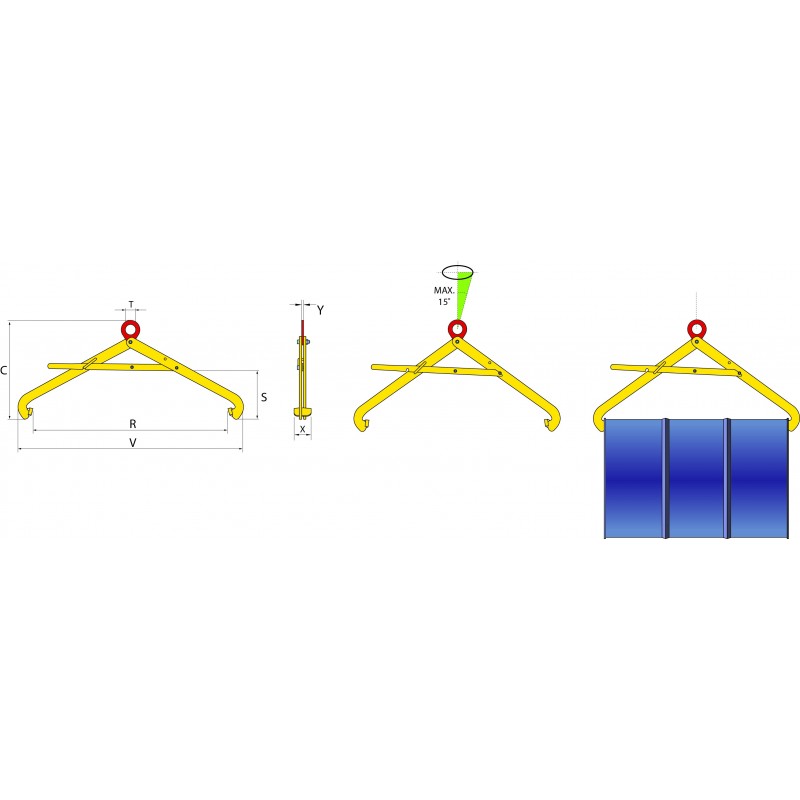

Art. № Type Capacity
[kg/pc]
Jaw opening
[mm]
U
[mm]
S
[mm]
V
[mm]
T
[mm]
X
[mm]
Y
[mm]
Weight
[kg/pc]
828200 TVSH 600 500-900 475 230 1080 50 82 10 7
