| Сountry of origin | Netherlands |
|---|---|
| Brand | Terrier |
| Use | For vertical lifting and transporting of all plates and structures without marking, scratching and or damaging the material surface |
| Safety factor | 5:1 |
| Temperature range | From -40°C to + 100°C |
| Note | STNMK types are supplied with enlarged jaw opening: 17 to 37 mm |
| Note | With 2 special synthetic anti-friction pads to guarantee non-marking |
| Note | Maintenance-friendly, easy to exchange parts which are available upon request |
Terrier lifting clamps are working in harsh and dangerous areas on a daily basis. So absolute safety and safe lifting is our number one priority. All lifting clamps are tested on our in-house testing facilities up to 2 times the Working Load Limit (WLL). Terrier Lifting Clamps are designed on a break factor of even 5 times the WLL.
Each clamp has red signal colouring on lifting eye and locking lever for extra safety and is supplied with a test certificate. When using Terrier clamps please make sure to read safety instruction.

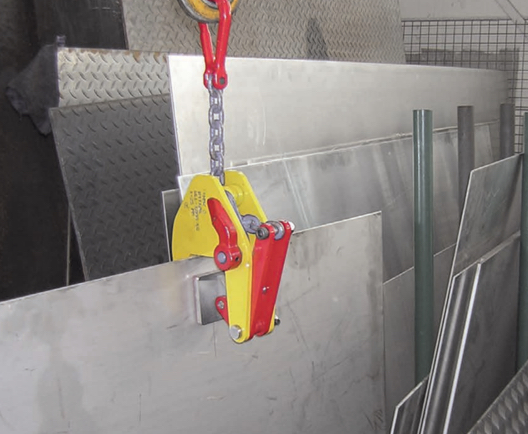

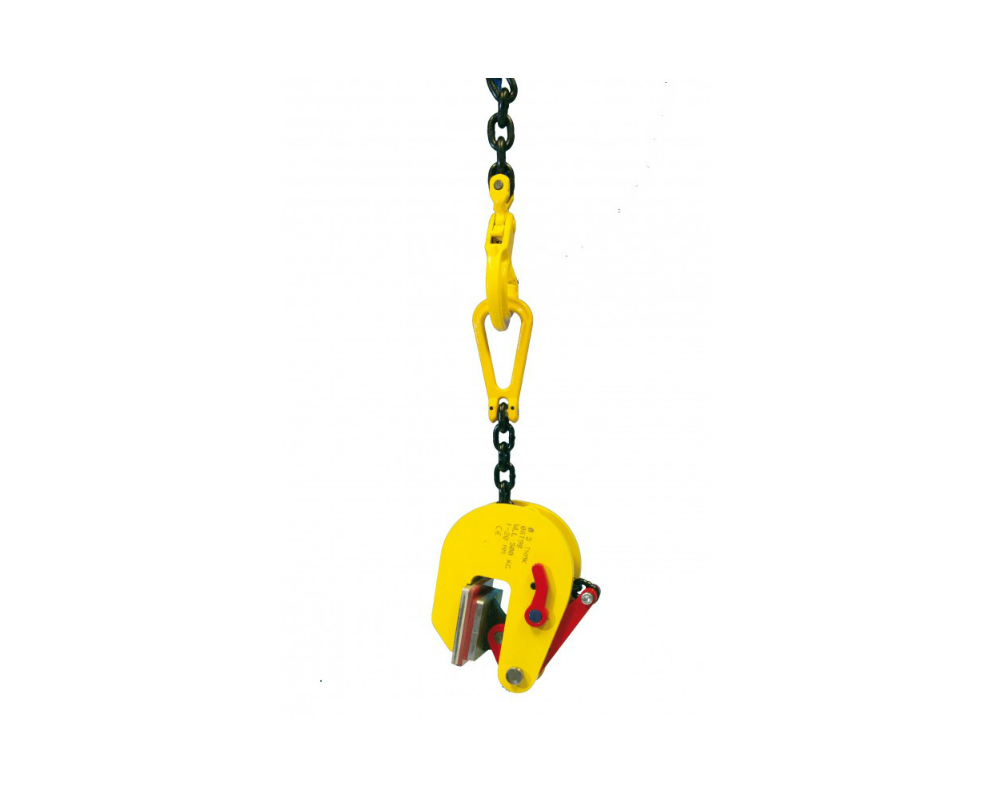

Vertical clamps are espcially designed for lifting (stainless) steel sheets, profiles or structures in a straight up direction. Terrier’s safety plate lifting clamps derive their name from the built-in safety mechanism, which consists of a locking device, a tension spring and a lever. Once the lever has been operated, the safety mechanism provides constant pre-tensioning of the cam on the steel-plate, thereby ensuring that the clamp does not slip when lifting force is applied. When a load is being lifted the clamping force on the cam is increased by the weight of the load.
Features and benefits:
- With 2 special synthetic anti-friction pads to guarantee non-marking
- Supplied with chain lifting shackle for flexible lifting
- Always equipped with a safety mechanism, ensuring the clamp does not slip when non-marKing lifting lifting force is applied and when load is being lowered
- Clamp is locked in closed as well as open position
- Lightweight, maintenance-friendly, heavy duty body
|

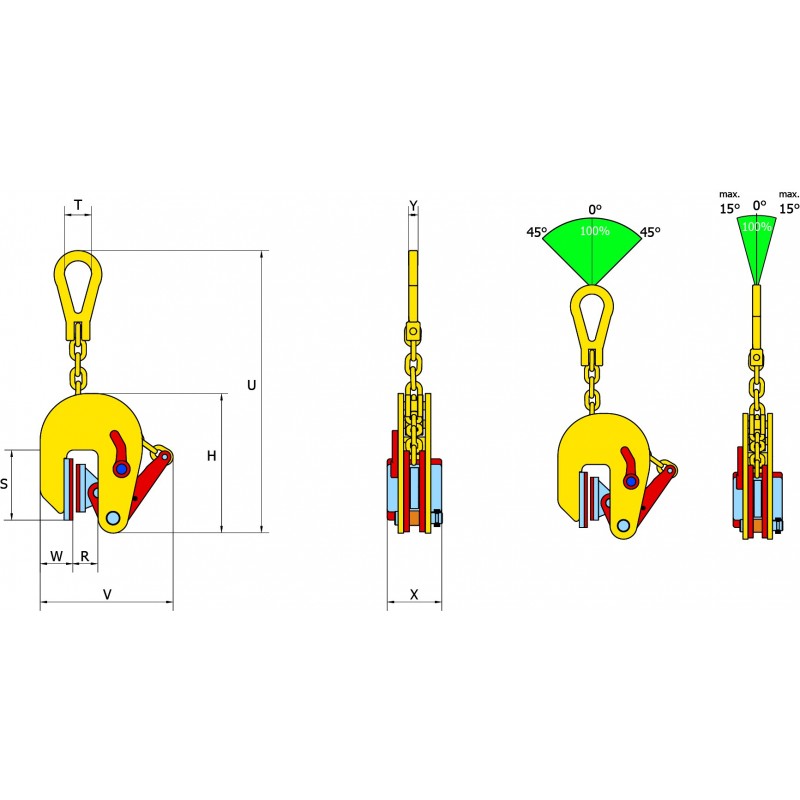

ART. № |
MODEL |
CAPACITY [KG/PC] |
JAW OPENING [MM] |
H [MM] |
S [MM] |
T [MM] |
U [MM] |
V [MM] |
W [MM] |
X [MM] |
Y [MM] |
WEIGHT [KG/PC] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 862035 | 0.5 TNMK | 500 | 0 - 20 | 205 | 102 | 40 | 462 | 224 | 48 | 80 | 14 | 6 |
| 862135 | 0.5 STNMK | 500 | 17- 37 | 205 | 102 | 40 | 462 | 241 | 48 | 80 | 14 | 6 |
| 862010 | 1 TNMK | 1000 | 0 -30 | 232 | 105 | 40 | 470 | 282 | 46 | 80 | 14 | 6.5 |
| 862037 | 1.5 TNMK | 1500 | 0 - 40 | 232 | 105 | 40 | 470 | 282 | 46 | 80 | 14 | 6.5 |
| 862038 | 2 TNMK | 2000 | 0 - 50 | 362 | 124 | 50 | 704 | 408 | 63 | 80 | 18 | 15 |
| 862039 | 3 TNMK | 3000 | 0 - 60 | 362 | 124 | 50 | 704 | 408 | 63 | 80 | 18 | 15.5 |
