Сountry of origin | Netherlands |
---|---|
Brand | Terrier |
Use | For vertical lifting, handling and transporting of Holland Profile (HP) shipbuilding structures from all positions |
Safety factor | 5:1 |
Temperature range | From -40°C to + 100°C |
Note | Lifting of longer sections should be done with a spreader beam |
Note | The surface of the material must have a hardness level of max. HRC 37/345 Hb |
Note | Maintenance-friendly, easy to exchange parts which are available upon request |
Terrier lifting clamps are working in harsh and dangerous areas on a daily basis. So absolute safety and safe lifting is our number one priority. All lifting clamps are tested on our in-house testing facilities up to 2 times the Working Load Limit (WLL). Terrier Lifting Clamps are designed on a break factor of even 5 times the WLL.
Each clamp has red signal colouring on lifting eye and locking lever for extra safety and is supplied with a test certificate. When using Terrier clamps please make sure to read safety instruction.

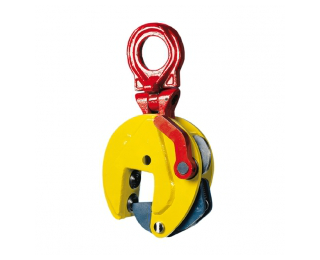

Vertical clamps are espcially designed for lifting (stainless) steel sheets, profiles or structures in a straight up direction. Terrier’s safety plate lifting clamps derive their name from the built-in safety mechanism, which consists of a locking device, a tension spring and a lever. Once the lever has been operated, the safety mechanism provides constant pre-tensioning of the cam on the steel-plate, thereby ensuring that the clamp does not slip when lifting force is applied. When a load is being lifted the clamping force on the cam is increased by the weight of the load.
Features and benefits:
- With articulated lifting shackle for universal lifting flexibility at various angles

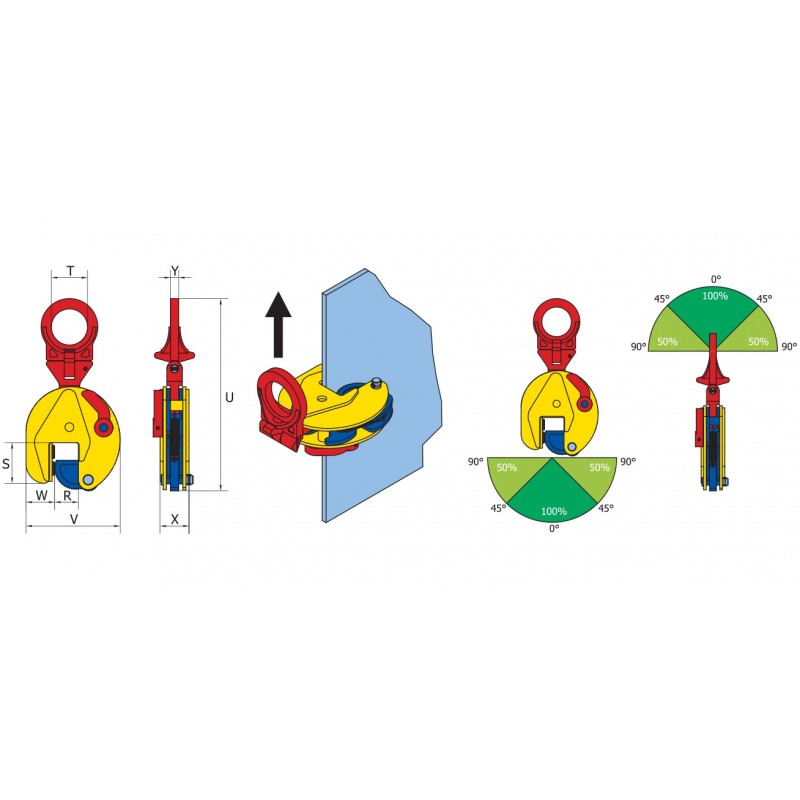

- The articulated lifting shackle guarantees a pressure grip in every position, even when side loading up to 90 degrees . Note a lower load capacity when lifting in an angle higher than 45 degrees . Please check the WLL reduction below
- Standard with 2 pivots for extra powerful clamping force
- Always equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied VertiCal lifting and when load is being lowered
- Clamp is locked in closed as well as open position
- Lightweight design for easy handling
- Tough quality heavy duty welded shell body
- Maintenance-friendly, easy to exchange parts which are available upon request
ART. № |
MODEL |
CAPACITY [KG/PC] |
JAW OPENING [MM] |
S [MM] |
T [MM] |
U [MM] |
V [MM] |
W [MM] |
X [MM] |
Y [MM] |
WEIGHT [KG/PC] |
---|---|---|---|---|---|---|---|---|---|---|---|
860300 | 3 TSHPU | 3000 | 0 - 35 | 93 | 70 | 369 | 182 | 58 | 54 | 16 | 8 |
860500 | 5 TSHPU | 5000 | 0 - 45 | 110 | 70 | 434 | 228 | 58 | 86 | 20 | 17;3 |
