| Сountry of origin | Netherlands |
|---|---|
| Brand | Terrier |
| Use | For Vertical lifting, transporting and turning of all steel plates and structures |
| Safety factor | 5:1 |
| Temperature range | From -40°C to + 100°C |
| Note | TSE / STS types are supplied with enlarged jaw opening |
| Note | The surface of the material must have a hardness level of max. HRC 37/345 Hb |
| Note | Maintenance-friendly, easy to exchange parts which are available upon request |
| Remote control | Available for types 2 TSE and 3 TSE |
Terrier lifting clamps are working in harsh and dangerous areas on a daily basis. So absolute safety and safe lifting is our number one priority. All lifting clamps are tested on our in-house testing facilities up to 2 times the Working Load Limit (WLL). Terrier Lifting Clamps are designed on a break factor of even 5 times the WLL.
Each clamp has red signal colouring on lifting eye and locking lever for extra safety and is supplied with a test certificate. When using Terrier clamps please make sure to read safety instruction.

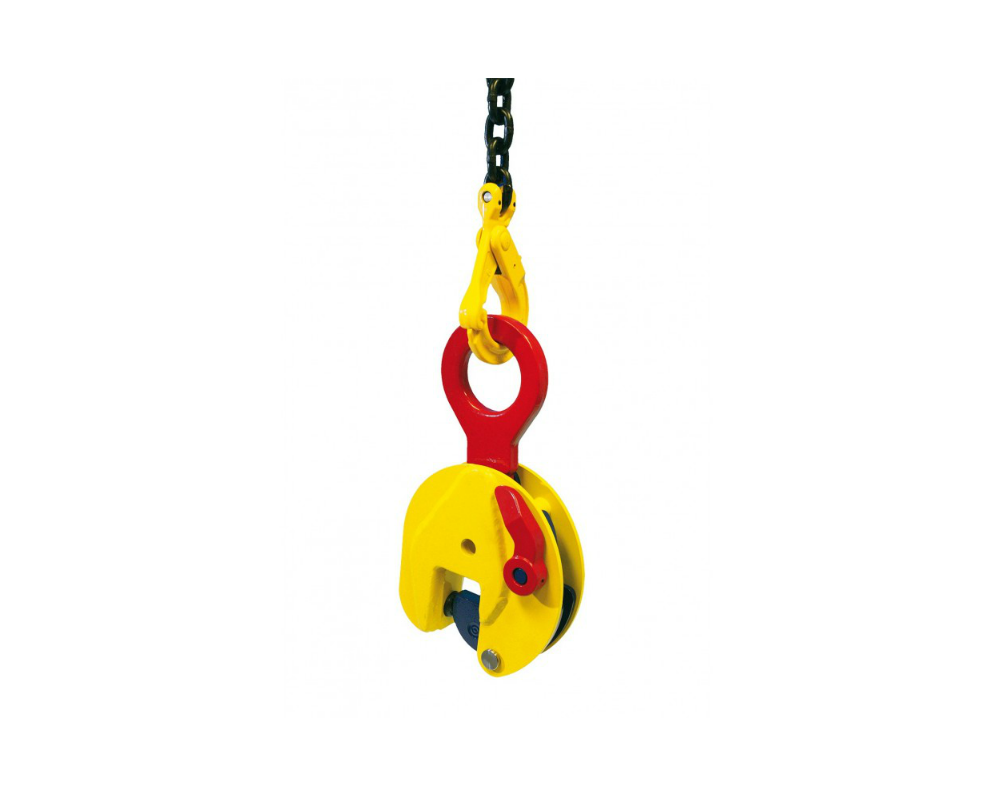

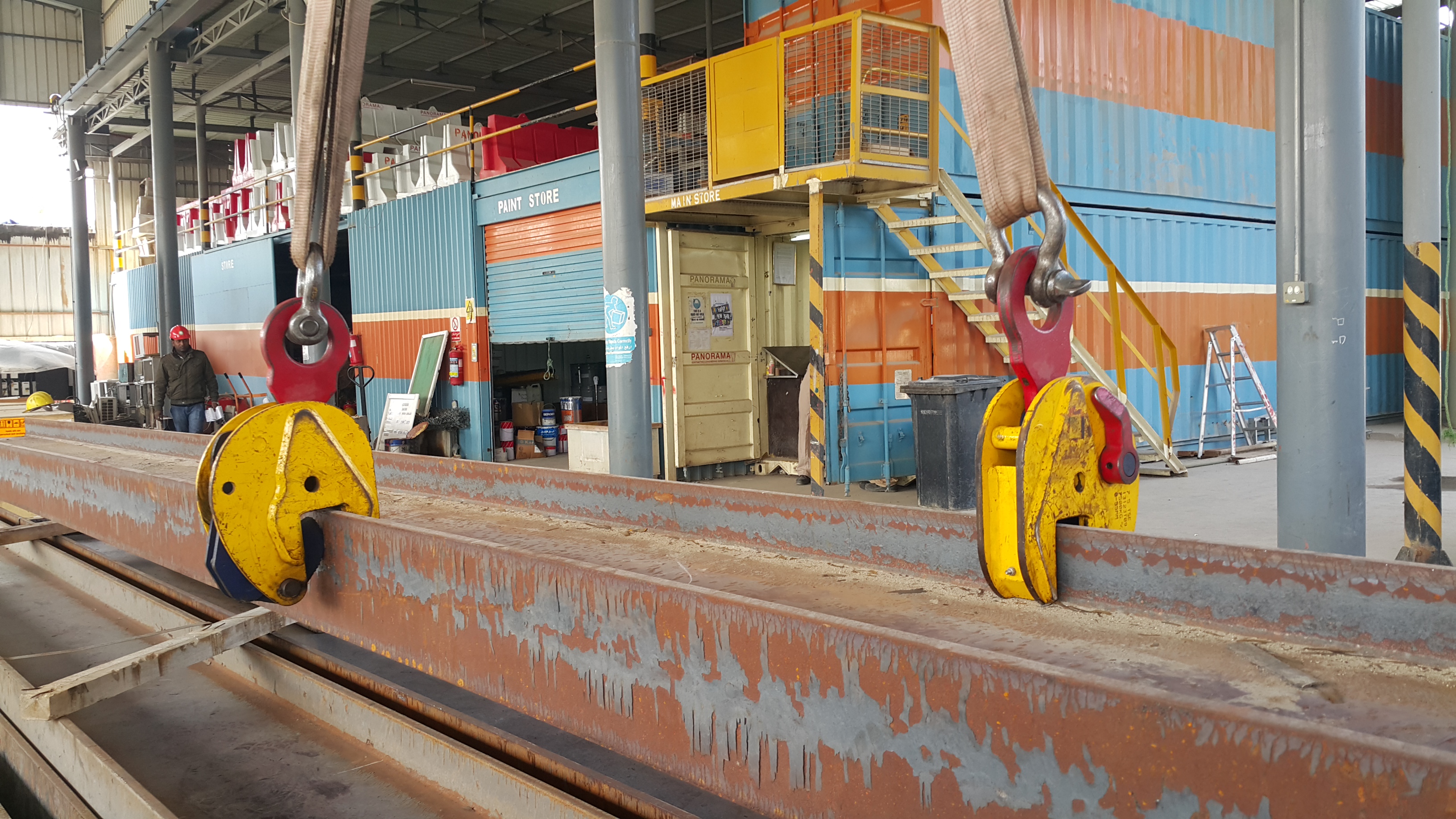

Vertical clamps are espcially designed for lifting (stainless) steel sheets, profiles or structures in a straight up direction. Terrier’s safety plate lifting clamps derive their name from the built-in safety mechanism, which consists of a locking device, a tension spring and a lever. Once the lever has been operated, the safety mechanism provides constant pre-tensioning of the cam on the steel-plate, thereby ensuring that the clamp does not slip when lifting force is applied. When a load is being lifted the clamping force on the cam is increased by the weight of the load.
Features and benefits:
- Lightweight design for easy handling
- Tough quality heavy duty welded shell body
- Always equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered
- Clamp is locked in closed as well as open position
- Maintenance-friendly, easy to exchange parts which are available upon request

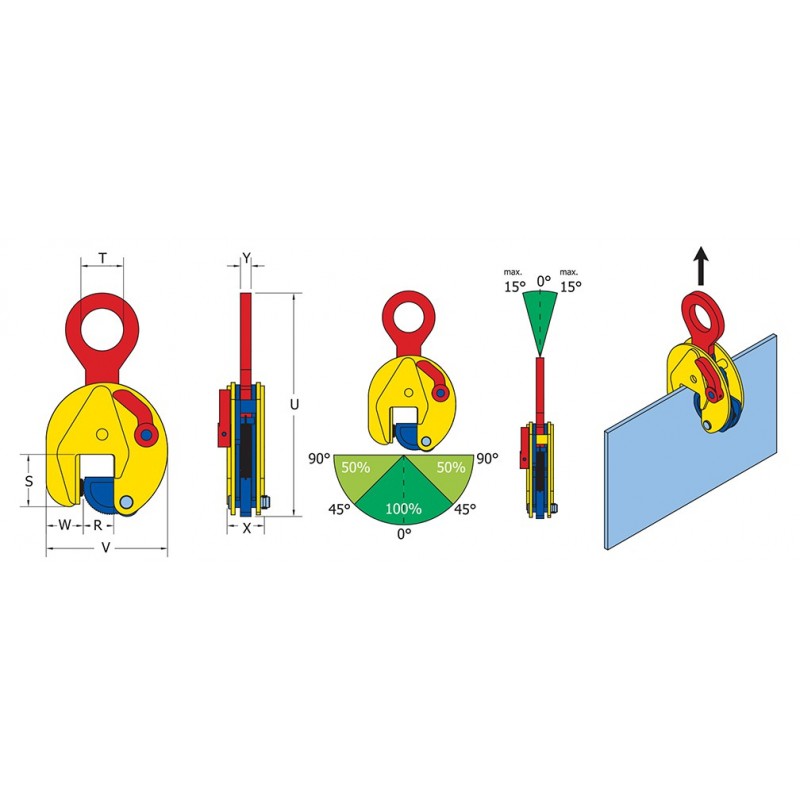

| Art. № | Model |
Capacity [kg] |
Jaw opening [mm] |
S [mm] |
T [mm] |
U [mm] |
V [mm] |
W [mm] |
X [mm] |
Y [mm] |
Weight [kg/pc] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 850000 | 0.75 TS | 750 | 0 - 13 | 47 | 30 | 202 | 100 | 37 | 37 | 10 | 1.7 |
| 850880 | 1 TSE | 1000 | 0 - 25 | 56 | 45 | 263 | 141 | 37 | 47 | 15 | 3.5 |
| 850901 | 2 TSE * | 2000 | 0 - 35 | 78 | 64 | 336 | 183 | 56 | 56 | 16 | 7 |
| 850331 | 3 TSE * | 3000 | 0 - 35 | 78 | 64 | 336 | 183 | 56 | 56 | 16 | 7 |
| 850441 | 4.5 TS | 4500 | 0 - 25 | 85 | 70 | 423 | 203 | 60 | 77 | 20 | 15 |
| 850451 | 4.5 TSE | 4500 | 0 - 45 | 85 | 70 | 425 | 228 | 60 | 78 | 20 | 16 |
| 850301 | 6 TS | 6000 | 0 - 32 | 114 | 75 | 490 | 225 | 78 | 78 | 20 | 19 |
| 851411 | 6 TSE | 6000 | 0 - 50 | 114 | 75 | 490 | 259 | 82 | 78 | 20 | 21 |
| 850401 | 7.5 TS | 7500 | 0 - 40 | 111 | 75 | 530 | 246 | 76 | 82 | 20 | 24 |
| 851501 | 7.5 TSE | 7500 | 0 - 55 | 111 | 75 | 522 | 267 | 70 | 86 | 20 | 26 |
| 851551 | 9 TS | 9000 | 0 - 55 | 111 | 75 | 522 | 267 | 70 | 86 | 20 | 27 |
| 850501 | 12 TS | 12000 | 0 - 52 | 148 | 85 | 617 | 295 | 100 | 94 | 44 | 37 |
| 915000 | 15 TS | 15000 | 0 - 76 | 209 | 86 | 810 | 373 | 136 | 106 | 49 | 70 |
| 917000 | 17 TS | 17000 | 0 - 76 | 209 | 86 | 810 | 373 | 136 | 106 | 49 | 71 |
| 920000 | 20 TS | 20000 | 0 - 80 | 250 | 100 | 933 | 563 | 153 | 140 | 66 | 149 |
| 925000 | 25 TS | 25000 | 5 - 85 | 250 | 100 | 925 | 563 | 148 | 140 | 66 | 149 |
| 930000 | 30 TS | 30000 | 10 - 90 | 250 | 100 | 918 | 568 | 153 | 142 | 66 | 155.5 |
| 852200 | 6 STS | 6000 | 40 - 90 | 114 | 75 | 486 | 275 | 70 | 78 | 20 | 21 |
| 854300 | 7.5 STS | 7500 | 50-100 | 111 | 75 | 524 | 312 | 70 | 86 | 20 | 26.5 |
| 853305 | 9 STS | 9000 | 50-100 | 111 | 75 | 522 | 312 | 70 | 86 | 20 | 27.5 |
| 852401 | 12 STS | 12000 | 50-100 | 152 | 85 | 615 | 344 | 100 | 94 | 44 | 41 |
| 921500 | 15 STS | 15000 | 80-150 | 224 | 86 | 800 | 450 | 136 | 106 | 49 | 76 |
| 922000 | 20 STS | 20000 | 80-150 | 249 | 100 | 924 | 640 | 153 | 140 | 66 | 160 |
| 922500 | 25 STS | 25000 | 80-150 | 249 | 100 | 924 | 640 | 153 | 140 | 66 | 160 |
| 923000 | 30 STS | 30000 | 80-150 | 249 | 100 | 906 | 645 | 156 | 142 | 66 | 165.5 |
