Сountry of origin | Netherlands |
---|---|
Brand | Terrier |
Use | For vertical lifting, transporting and turning of all steel plates and structures |
Safety factor | 5:1 |
Temperature range | From -40°C to + 100°C |
Note | TSEMP / STSMP types are supplied with enlarged jaw opening |
Note | The surface of the material must have a hardness level of max. HRC 37/345 Hb |
Note | Maintenance-friendly, easy to exchange parts which are available upon request |
Remote control | Available for types 2 TSEMP and 3 TSEMP |
Terrier lifting clamps are working in harsh and dangerous areas on a daily basis. So absolute safety and safe lifting is our number one priority. All lifting clamps are tested on our in-house testing facilities up to 2 times the Working Load Limit (WLL). Terrier Lifting Clamps are designed on a break factor of even 5 times the WLL.
Each clamp has red signal colouring on lifting eye and locking lever for extra safety and is supplied with a test certificate. When using Terrier clamps please make sure to read safety instruction.

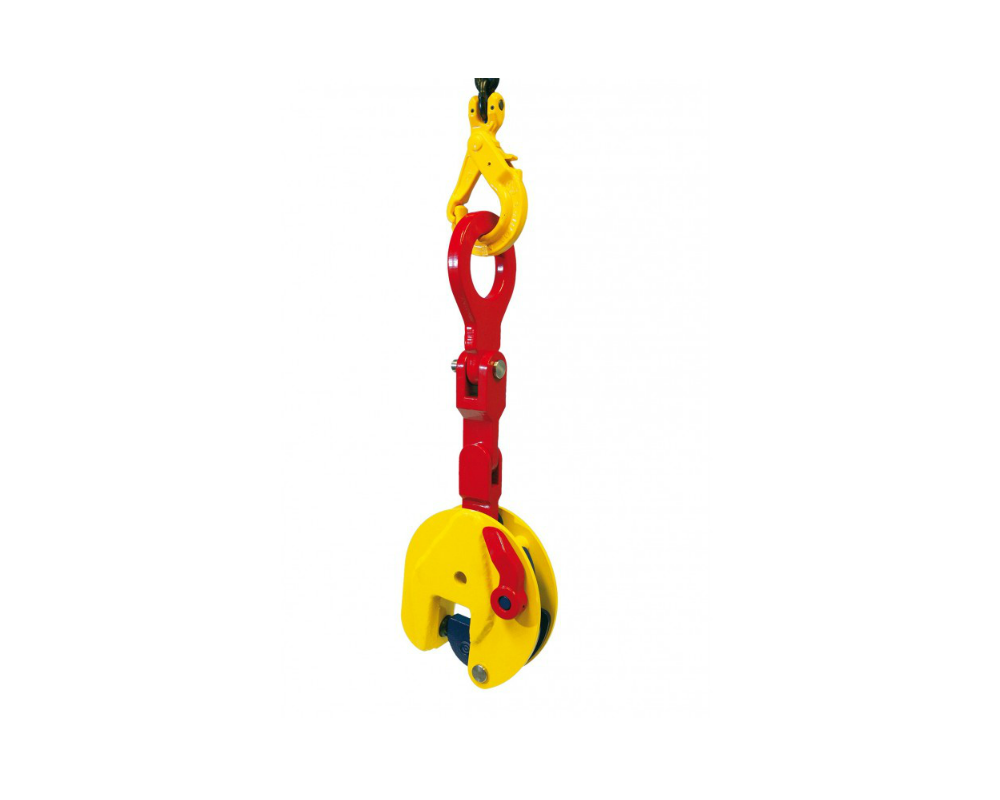

Vertical clamps are espcially designed for lifting (stainless) steel sheets, profiles or structures in a straight up direction. Terrier’s safety plate lifting clamps derive their name from the built-in safety mechanism, which consists of a locking device, a tension spring and a lever. Once the lever has been operated, the safety mechanism provides constant pre-tensioning of the cam on the steel-plate, thereby ensuring that the clamp does not slip when lifting force is applied. When a load is being lifted the clamping force on the cam is increased by the weight of the load.
Features and benefits:
- With three way articulated linkage arrangement lifting shackle
- Enjoy all the benefits of the TS clamps with extra reach and lifting flexibility
- When attached to a fixed load bearing arm (e .g . spreader bar) the clamp will retain its flexibility and no chain is needed
- Due to length of the three way linkage arrangement the clamp can be lowered further between standing plates or structures
- Always equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered
- Clamp is locked in closed as well as open position
- Lightweight design for easy handling
- Tough quality heavy duty welded shell body
- Maintenance-friendly, easy to exchange parts which are available upon request

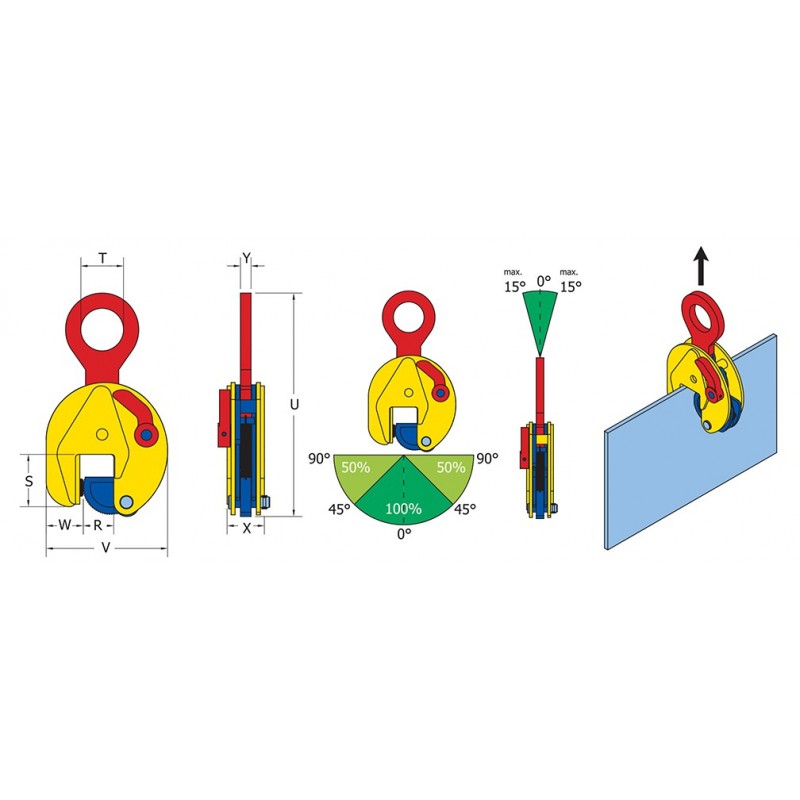

ART. № | MODEL |
CAPACITY [KG/PC] |
JAW OPENING [MM] |
S [MM] |
T [MM] |
U [MM] |
V [MM] |
W [MM] |
X [MM] |
Y [MM] |
WEIGHT [KG/PC] |
---|---|---|---|---|---|---|---|---|---|---|---|
850010 | 0.75 TSMP | 750 | 0 - 13 | 47 | 30 | 307 | 100 | 37 | 37 | 10 | 2 |
850818 | 1 TSEMP | 1000 | 0 - 25 | 56 | 45 | 403 | 141 | 37 | 47 | 15 | 4.5 |
850911 | 2 TSEMP | 2000 | 0 - 35 | 78 | 64 | 516 | 183 | 56 | 56 | 16 | 8 |
850221 | 3 TSEMP | 3000 | 0 - 35 | 78 | 64 | 516 | 183 | 56 | 56 | 16 | 8 |
851401 | 4.5 TSEMP | 4500 | 0 - 45 | 85 | 70 | 650 | 228 | 60 | 78 | 20 | 19 |
850311 | 6 TSMP | 6000 | 0 - 32 | 114 | 75 | 760 | 225 | 78 | 78 | 20 | 24 |
851511 | 6 TSEMP | 6000 | 0 - 50 | 114 | 75 | 760 | 259 | 82 | 78 | 20 | 25.5 |
850411 | 7.5 TSMP | 7500 | 0 - 40 | 111 | 75 | 800 | 246 | 76 | 82 | 20 | 29 |
851510 | 7.5 TSEMP | 7500 | 0 - 55 | 111 | 75 | 792 | 267 | 70 | 86 | 20 | 30.5 |
851515 | 9 TSMP | 9000 | 0 - 55 | 111 | 75 | 792 | 267 | 70 | 86 | 20 | 31 |
852210 | 6 STSMP | 6000 | 40 - 90 | 114 | 75 | 756 | 275 | 70 | 78 | 20 | 26 |
854310 | 7.5 STSMP | 7500 | 50-100 | 111 | 75 | 695 | 312 | 70 | 86 | 20 | 31.5 |
853315 | 9 STSMP | 9000 | 50-100 | 111 | 75 | 792 | 312 | 70 | 86 | 20 | 32.5 |
