| Сountry of origin | Netherlands |
|---|---|
| Brand | Terrier |
| Use | For vertical lifting, transporting and turning of stainless steel plates and structures |
| Safety factor | 5:1 |
| Temperature range | From -40°C to + 100°C |
| Note | TSU-R / TSEU-R come with articulated lifting shackle for universal lifting flexibility at various angles |
| Note | The surface of the material must have a hardness level of max. HRC 37/345 Hb |
| Note | Maintenance-friendly, easy to exchange parts which are available upon request |
Terrier lifting clamps are working in harsh and dangerous areas on a daily basis. So absolute safety and safe lifting is our number one priority. All lifting clamps are tested on our in-house testing facilities up to 2 times the Working Load Limit (WLL). Terrier Lifting Clamps are designed on a break factor of even 5 times the WLL.
Each clamp has red signal colouring on lifting eye and locking lever for extra safety and is supplied with a test certificate. When using Terrier clamps please make sure to read safety instruction.
Vertical clamps are espcially designed for lifting (stainless) steel sheets, profiles or structures in a straight up direction. Terrier’s safety plate lifting clamps derive their name from the built-in safety mechanism, which consists of a locking device, a tension spring and a lever. Once the lever has been operated, the safety mechanism provides constant pre-tensioning of the cam on the steel-plate, thereby ensuring that the clamp does not slip when lifting force is applied. When a load is being lifted the clamping force on the cam is increased by the weight of the load.
Features and benefits:
- Pivot and cam are made of stainless steel
- Body and lock lever are nickel plated to prevent corrosion due to carbon
- contamination

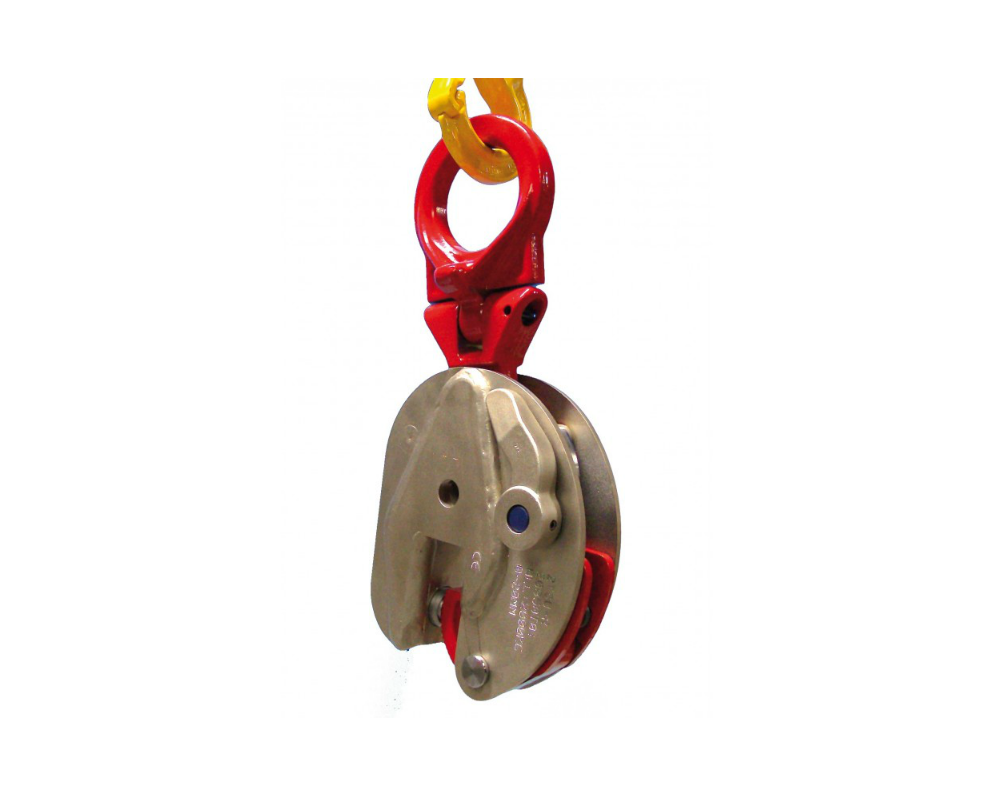

- TSU-R / TSEU-R come with articulated lifting shackle for universal lifting flexibility at various angles
- TS-R / TSE-R come with standard lifting shackle
- Always equipped with a safety mechanism, ensuring the clamp does not slip when
- lifting force is applied and when load is being lowered
- Clamp is locked in closed as well as open position
- Lightweight design for easy handling
- Tough quality heavy duty welded shell body
- Maintenance-friendly, easy to exchange parts which are available upon request

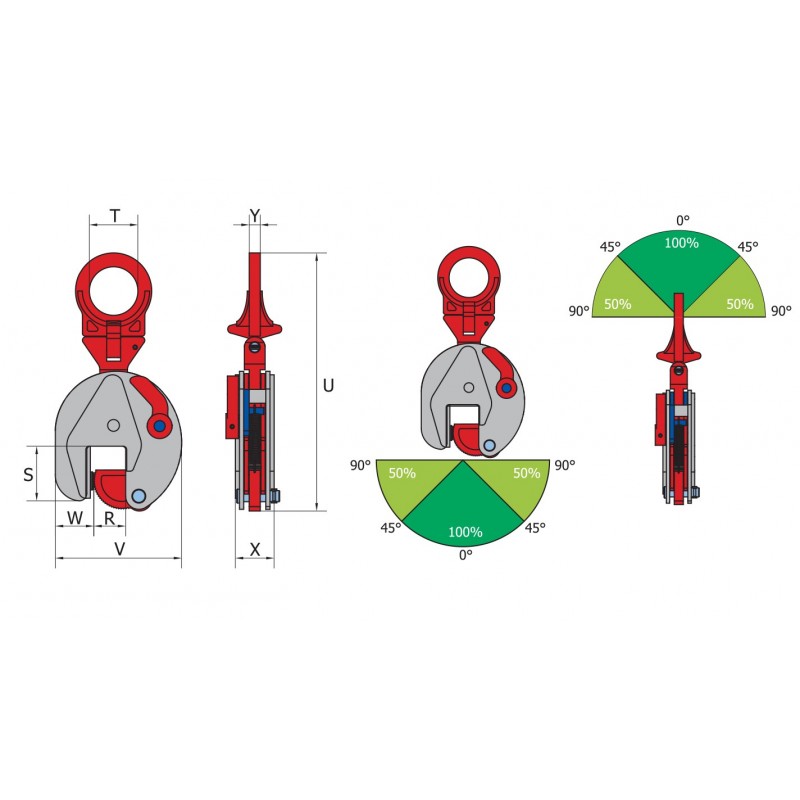

| ART. № |
MODEL |
CAPACITY [KG/PC] |
JAW OPENING [MM] |
S [MM] |
T [MM] |
U [MM] |
V [MM] |
W [MM] |
X [MM] |
Y [MM] |
WEIGHT [KG/PC] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 861075 | 0.75 TS-R | 750 | 0 - 13 | 47 | 30 | 202 | 100 | 37 | 37 | 10 | 1.7 |
| 861100 | 1 TSE-R | 1000 | 0 - 25 | 56 | 45 | 263 | 141 | 37 | 47 | 15 | 3.5 |
| 861200 | 2 TSE-R | 2000 | 0 - 35 | 78 | 64 | 336 | 183 | 56 | 56 | 16 | 7 |
| 861300 | 3 TSE-R | 3000 | 0 - 35 | 78 | 64 | 336 | 183 | 56 | 56 | 16 | 7 |
| 861450 | 4.5 TSE-R | 4500 | 0 - 45 | 85 | 70 | 425 | 228 | 60 | 78 | 20 | 16 |
| 861600 | 6 TSE-R | 6000 | 0 - 50 | 114 | 75 | 490 | 259 | 82 | 78 | 20 | 21 |
| 861750 | 7.5 TSE-R | 7500 | 0 - 55 | 111 | 75 | 522 | 267 | 70 | 86 | 20 | 26 |
| 862075 | 0.75 TSU-R | 750 | 0 - 13 | 47 | 30 | 203 | 100 | 37 | 37 | 10 | 1.8 |
| 862100 | 1 TSEU-R | 1000 | 0 - 25 | 56 | 50 | 292 | 141 | 37 | 47 | 15 | 3.8 |
| 862200 | 2 TSEU-R | 2000 | 0 - 35 | 78 | 70 | 372 | 183 | 56 | 56 | 16 | 8 |
| 862300 | 3 TSEU-R | 3000 | 0 - 35 | 78 | 70 | 372 | 183 | 56 | 56 | 16 | 8 |
| 862450 | 4.5 TSEU-R | 4500 | 0 - 45 | 85 | 70 | 431 | 228 | 60 | 78 | 20 | 16.5 |
| 862600 | 6 TSEU-R | 6000 | 0 - 50 | 114 | 78 | 527 | 259 | 82 | 78 | 32 | 24 |
| 862750 | 7.5 TSEU-R | 7500 | 0 - 55 | 111 | 78 | 560 | 267 | 70 | 86 | 32 | 28 |
