| Сountry of origin | Netherlands |
|---|---|
| Brand | Terrier |
| Use | For vertical lifting, transporting and turning of all steel plates and structures from all positions |
| Safety factor | 5:1 |
| Temperature range | From -40°C to + 100°C |
| Note | TSEU / STSU types are supplied with enlarged jaw opening |
| Note | The surface of the material must have a hardness level of max. HRC 37/345 Hb |
| Note | Maintenance-friendly, easy to exchange parts which are available upon request |
| Remote control | Available for types 2 TSEU and 3 TSEU |
Terrier lifting clamps are working in harsh and dangerous areas on a daily basis. So absolute safety and safe lifting is our number one priority. All lifting clamps are tested on our in-house testing facilities up to 2 times the Working Load Limit (WLL). Terrier Lifting Clamps are designed on a break factor of even 5 times the WLL.
Each clamp has red signal colouring on lifting eye and locking lever for extra safety and is supplied with a test certificate. When using Terrier clamps please make sure to read safety instruction.

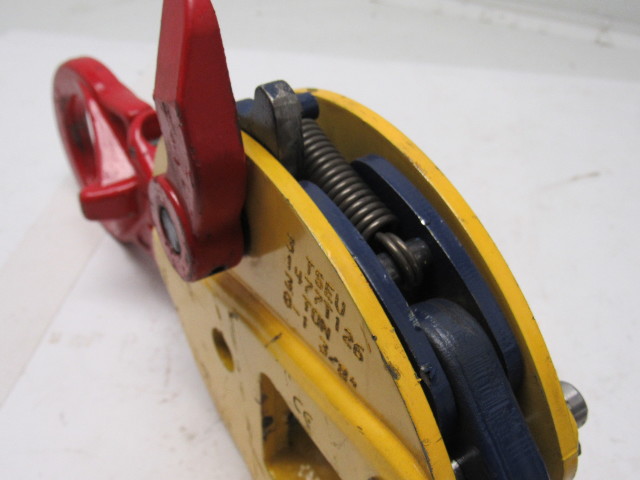

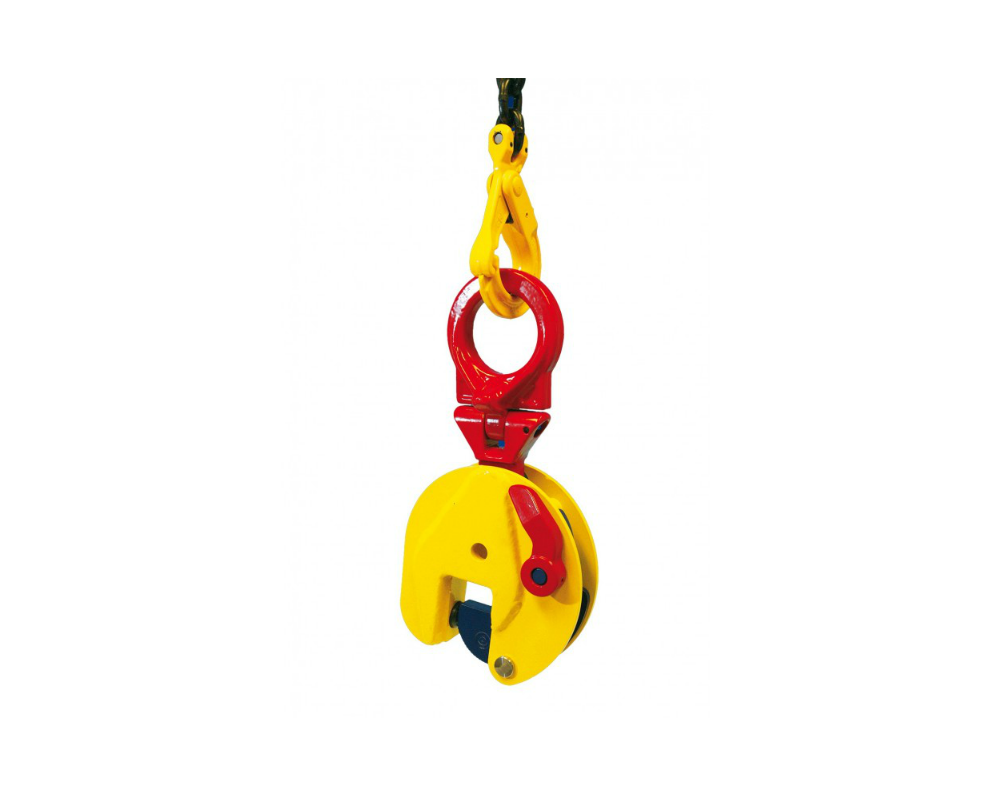

Vertical clamps are espcially designed for lifting (stainless) steel sheets, profiles or structures in a straight up direction. Terrier’s safety plate lifting clamps derive their name from the built-in safety mechanism, which consists of a locking device, a tension spring and a lever. Once the lever has been operated, the safety mechanism provides constant pre-tensioning of the cam on the steel-plate, thereby ensuring that the clamp does not slip when lifting force is applied. When a load is being lifted the clamping force on the cam is increased by the weight of the load.
Features and benefits:
- With articulated lifting shackle for universal lifting flexibility at various angles

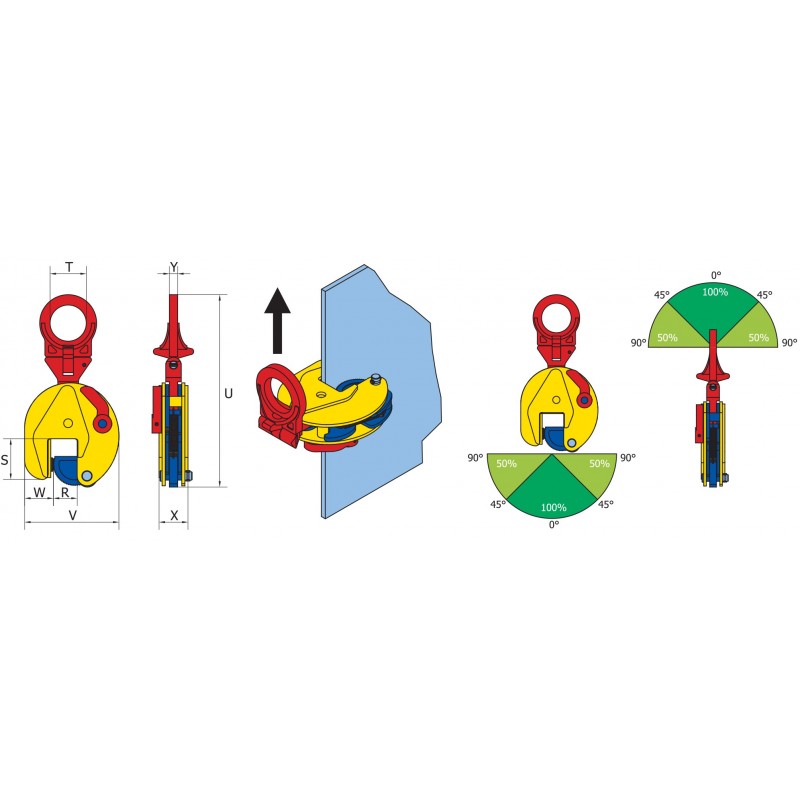

- The articulated lifting shackle guarantees a pressure grip in every position, even when side loading up to 90 degrees . Note a lower load capacity when lifting in an angle higher than 45 degrees . Please check the WLL reduction below
- Longer plates can be lifted without the use of a spreader beam when using two clamps on a two legged chain sling
- Always equipped with a safety mechanism, ensuring the clamp does not slip when VertiCal lifting lifting force is applied and when load is being lowered
- Clamp is locked in closed as well as open position
- Lightweight, maintenance-friendly, heavy duty body
| ART. № |
MODEL |
CAPACITY [KG] |
JAW OPENING [MM] |
S [MM] |
T [MM] |
U [MM] |
V [MM] |
W [MM] |
X [MM] |
Y [MM] |
WEIGHT [KG/PC] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 855000 | 0.75 TSU | 750 | 0 - 13 | 47 | 30 | 203 | 100 | 37 | 37 | 10 | 1.8 |
| 865800 | 1 TSEU | 1000 | 0 - 25 | 56 | 50 | 292 | 141 | 37 | 47 | 15 | 3.8 |
| 855601 | 2 TSEU | 2000 | 0 - 35 | 78 | 70 | 372 | 183 | 56 | 56 | 16 | 8 |
| 865331 | 3 TSEU | 3000 | 0 - 35 | 78 | 70 | 372 | 183 | 56 | 56 | 16 | 8 |
| 865441 | 4.5 TSU | 4500 | 0 - 25 | 85 | 70 | 429 | 203 | 60 | 77 | 20 | 16 |
| 865301 | 4.5 TSEU | 4500 | 0 - 45 | 85 | 70 | 431 | 228 | 60 | 78 | 20 | 16.5 |
| 865401 | 6 TSU | 6000 | 0 - 32 | 114 | 78 | 528 | 225 | 78 | 78 | 32 | 22 |
| 865411 | 6 TSEU | 6000 | 0 - 50 | 114 | 78 | 527 | 259 | 82 | 78 | 32 | 24 |
| 865601 | 7.5 TSU | 7500 | 0 - 40 | 111 | 78 | 567 | 246 | 76 | 82 | 32 | 27 |
| 855400 | 7.5 TSEU | 7500 | 0 - 55 | 111 | 78 | 560 | 267 | 70 | 86 | 32 | 28 |
| 855405 | 9 TSU | 9000 | 0 - 55 | 111 | 78 | 560 | 267 | 70 | 86 | 32 | 29 |
| 865901 | 12 TSU | 12000 | 0 - 52 | 148 | 85 | 648 | 295 | 100 | 94 | 48 | 41 |
| 955150 | 15 TSU | 15000 | 0 - 76 | 209 | 85 | 816 | 373 | 136 | 106 | 48 | 73 |
| 955170 | 17 TSU | 17000 | 0 - 76 | 209 | 85 | 816 | 373 | 136 | 106 | 48 | 74 |
| 955200 | 20 TSU | 20000 | 0 - 80 | 250 | 100 | 948 | 563 | 153 | 140 | 71 | 160 |
| 955250 | 25 TSU | 25000 | 5 - 85 | 250 | 100 | 948 | 563 | 148 | 140 | 71 | 160 |
| 955300 | 30 TSU | 30000 | 10-90 | 250 | 100 | 944 | 568 | 153 | 142 | 71 | 167 |
| 856200 | 6 STSU | 6000 | 40 - 90 | 114 | 78 | 523 | 275 | 70 | 78 | 32 | 24 |
| 856300 | 7.5 STSU | 7500 | 50-100 | 111 | 78 | 560 | 312 | 70 | 86 | 32 | 30 |
| 855305 | 9 STSU | 9000 | 50-100 | 111 | 78 | 560 | 312 | 70 | 86 | 32 | 31 |
| 856401 | 12 STSU | 12000 | 50-100 | 152 | 85 | 644 | 344 | 100 | 94 | 48 | 45 |
| 966150 | 15 STSU | 15000 | 80-150 | 224 | 85 | 808 | 450 | 136 | 106 | 48 | 78 |
| 966200 | 20 STSU | 20000 | 80-150 | 249 | 100 | 940 | 640 | 153 | 140 | 71 | 171 |
| 966250 | 25 STSU | 25000 | 80-150 | 249 | 100 | 940 | 640 | 153 | 140 | 71 | 171 |
| 966300 | 30 STSU | 30000 | 80-150 | 249 | 100 | 946 | 645 | 156 | 142 | 71 | 176.5 |
