| Сountry of origin | Germany |
|---|---|
| Brand | THIELE |
| Loading direction | Full WLL in any load direction |
| Purpose | Fit most lifting and lashing applications |
| Safety factor | 4:1 |
| Finish | RAL 3003 |
| Testing | 100% Magnetic crack tested |

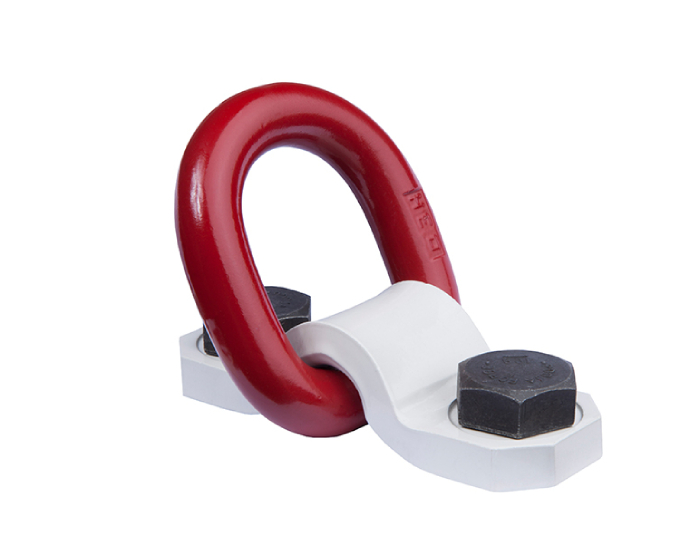

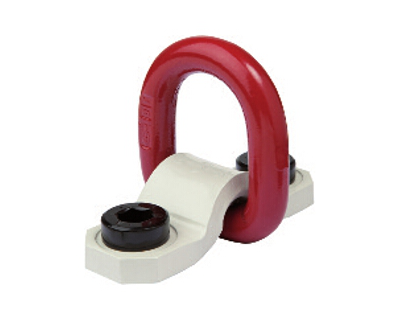

The screw-type lifting points TWN 0127 are predominantly used for the transportation of moulds, tools, dies, machine elements and steel constructions. The D-links enable an easy assembling to lifting components. The manufacturing and testing requirements comply with the DIN EN 1677-1.
|
Screw Size d [mm] |
Art.№ |
Working Load Limit [t max.] |
Thread Length G [mm] |
E [mm] | F [mm] | C [mm] | B [mm] | L [mm] | D [mm] | SW [mm] |
A [mm] |
Weight [kg] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| М20 | F35157 | 3,15 | 39 | 68 | 48 | 44 | 48 | 130 | 18 | 30 | 90 | 1,10 |
| М24 | F35158 | 5,30 | 36 | 113 | 69 | 60 | 66 | 160 | 24 | 36 | 110 | 2,70 |
