Сountry of origin | Germany |
---|---|
Brand | THIELE |
Loading direction | Full WLL in any load direction |
Purpose | Fit most lifting and lashing applications |
Safety factor | 4:1 |
Finish | RAL 3003 |
Testing | 100% Magnetic crack tested |

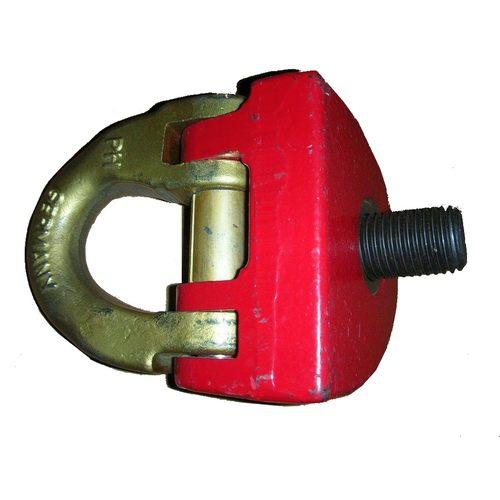

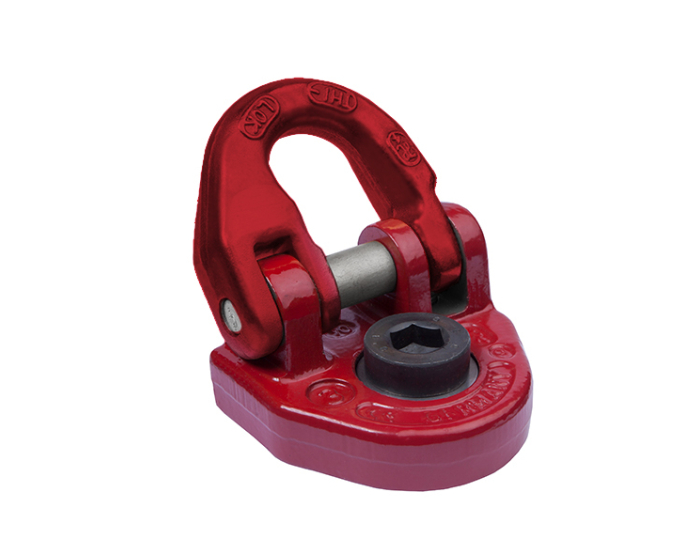

The screw-type rotating lifting points TWN 0121 are predominantly used in mold and tool making. The sliding disc enables a twist-free alignment of the chain strands. The eyelet allows easy assembling with other lifting components. The manufacturing and testing requirements are based on the DIN EN 1677-1.
Model |
Screw Size d [mm] |
Art.№ |
Working Load Limit [t max.] |
Thread Length G [mm] |
E [mm] | F [mm] | A [mm] | C [mm] | H [mm] | B [mm] | D [mm] | A [mm] |
SW [mm] |
Weight [kg] |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0121/1 | M16 | F35000 | 1,12 | 25 | 65 | 30 | 61 | 65 | 38 | 22 | 12 | 35,50 |
12 |
0,70 |
0121 | M20 | F35010 | 2,00 | 30 | 85 | 40 | 79 | 82 | 49 | 28 | 15 |
46 |
14 |
1,50 |
0121/1 | M24 | F35020 | 3,15 | 36 | 98 | 45 | 92 | 101 | 59 | 33 | 19 | 52 |
17 |
2,60 |
0121/1 | M30 | F35030 | 5,30 | 50 | 120 | 53 | 113 | 125 | 72 | 45 | 25 | 62 | 22 | 4,60 |
