| Сountry of origin | Germany |
|---|---|
| Brand | THIELE |
| Loading direction | Full WLL in any load direction |
| Purpose | Fit most lifting and lashing applications |
| Safety factor | 4:1 |
| Finish | RAL 3003 |
| Testing | 100% Magnetic crack tested |

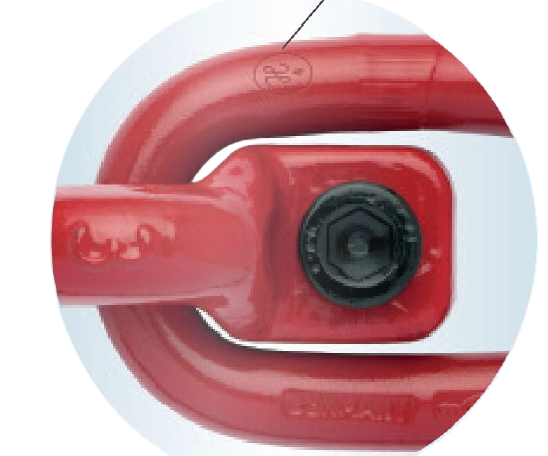

The screw-on lifting points TWN 0122 are predominantly used for the transportation of heavy moulds, tools, dies, machine elements and steel constructions. The intermediate links allow an easy assembling with other lifting components. The manufacturing and testing requirements comply with the DIN EN 1677-1.
|
Screw Size d [mm] |
Art.№ |
Working Load Limit [t max.] |
Thread Length G [mm] |
E [mm] |
F [mm] |
A [mm] |
B [mm] |
L [mm] |
D [mm] |
H [mm] |
T [mm] |
C [mm] |
SW [mm] |
Weight [kg] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M16 | F35070 | 3,15 | 25 | 112 | 57 | 90 | 40 | 130 | 18 | 55 | 85 | 38 | 12 | 1,47 |
| M20 | F35075 | 5,30 | 36 | 149 | 80 | 115 | 50 | 162 | 22 | 69 | 115 | 45 | 14 | 2,70 |
| M30 | F35080 | 8,00 | 50 | 183 | 93 | 150 | 65 | 212 | 26 | 89 | 140 | 55 | 22 | 5,94 |
| M36 | F35095 | 15,00 | 53 | 217 | 105 | 175 | 80 | 255 | 36 | 112 | 160 | 72 | 27 | 11,08 |
| М42 | F35098 | 21,20 | 67 | 262 | 132 | 200 | 100 | 295 | 45 | 130 | 200 | 90 | 32 | 20,09 |
| М45 | F35101 | 25,00 | 67 | 262 | 132 | 200 | 100 | 295 | 45 | 130 | 200 | 90 | 32 | 20,55 |
| М56 | F35102 | 31,50 | 88 | 336 | 193 | 230 | 110 | 330 | 48 | 143 | 270 | 100 | 36 |
31,60 |
| М56 | F35285 | 36,00 | 88 | 336 | 193 | 230 | 110 | 330 | 48 | 143 | 270 | 100 | 36 | 31,60 |
