| Сountry of origin | Germany |
|---|---|
| Brand | THIELE |
| Loading direction | Full WLL in any load direction |
| Purpose | Fit most lifting and lashing applications |
| Safety factor | 4:1 |
| Finish | RAL 5002, zinc lamella coating |
| Testing | 100% Magnetic crack tested |

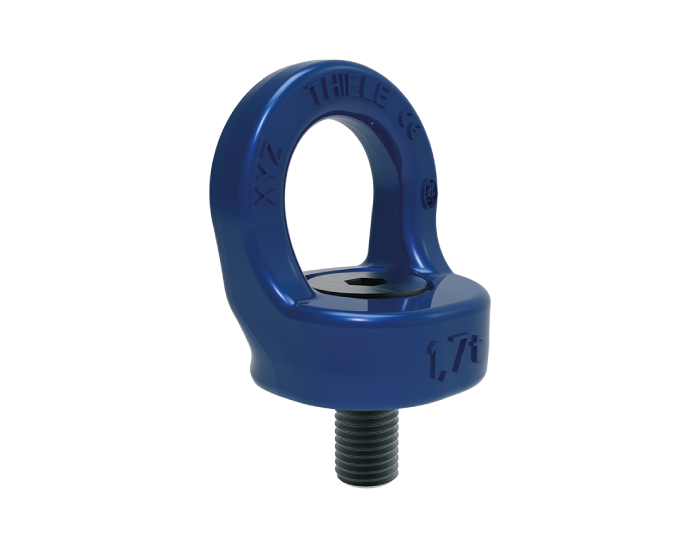

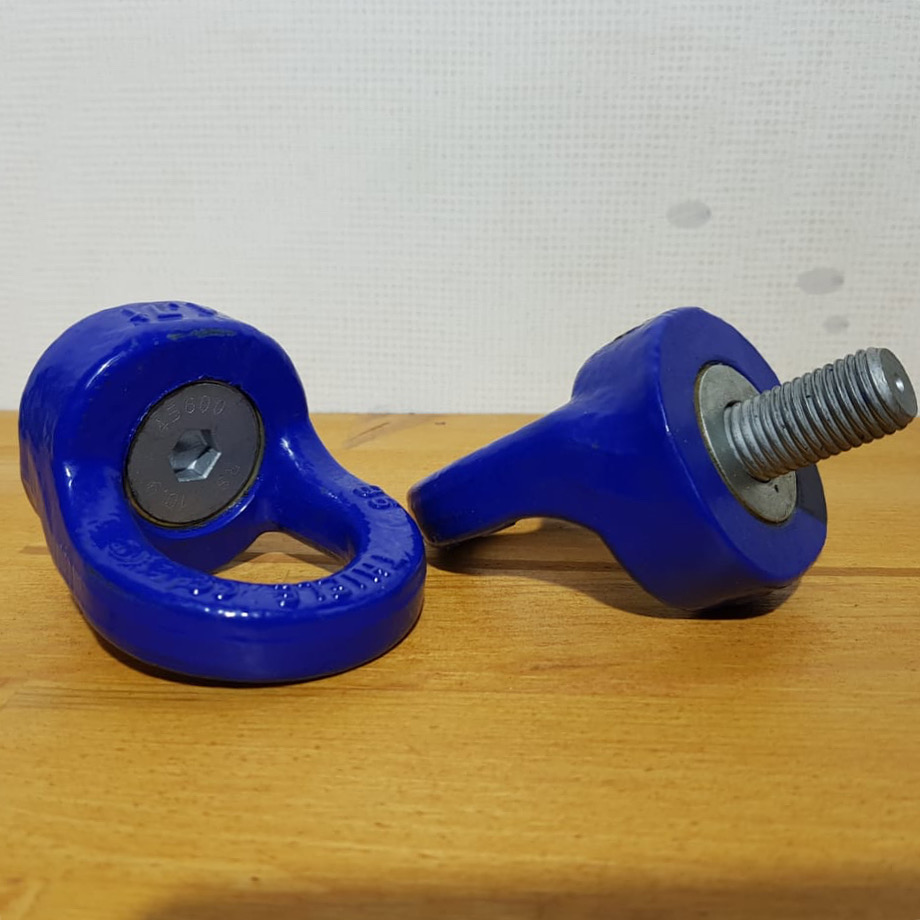

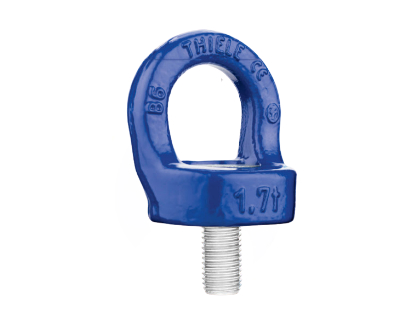

The screw-on XKE-Points with ball-bearing TWN 1884 are predominantly used in molds- and tool-making. The ball-bearing allows the load to be rotated and turned under load. The eccentrically positioned eye makes it easy to connect lifting equipment. The XKE-points have a multiple times higher load capacity than DIN 580-eye bolts and can be loaded in every direction. The eccentrically arranged eyelet enables an easy assembly with a standard Allen key.
The manufacturing and testing requirements are based on the DIN EN 1677-1.
|

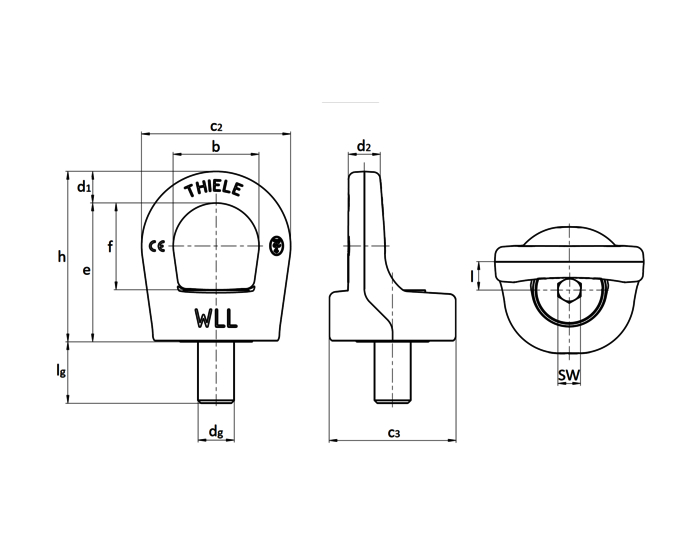

Screw Size d [мм] |
Working Load Limit [t max.] |
Article |
Thread Length Lg [мм] |
B [mm] |
C2 [mm] |
C3 [mm] |
E [mm] |
F [mm] |
H [mm] |
D1 [mm] |
D2 [mm] |
L [mm] |
SW [mm] |
Weight [kg] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M8 | 0,3 |
F38005 |
16 | 26 | 45 | 37 | 40 | 26 | 50 |
9.5 |
9.5 |
8 | 6 | 0,18 |
| M10 | 0,6 |
F38006 |
16 | 26 | 45 | 37 | 40 | 26 | 50 |
9.5 |
9.5 |
8 | 6 | 0,18 |
| M12 | 1,00 |
F38007 |
18 | 30 | 51 | 43 | 47 | 30 | 57 | 11 | 11 | 10 | 8 | 0,29 |
| М16 | 1,70 | F38010 | 27 | 38 | 66 | 56 | 62 | 38 | 76 | 14 | 14 | 13 | 10 | 0,66 |
| М20 | 2,60 | F38020 | 33 | 42 | 74 | 61 | 70 | 42 | 86 | 16 | 16 | 15 | 12 | 0,99 |
| M24 | 3.50 |
F38030 |
39 | 51 | 85 | 65 | 82 | 51 | 99 | 17 | 17 | 16 | 14 | 1,34 |
| M30 | 6,00 |
F38040 |
45 | 62 | 104 | 82 | 97 | 62 | 118 | 21 | 22 | 20 | 19 | 2,29 |
| M36 | 8,00 |
F38050 |
55 | 75 | 131 | 92 | 116 | 75 | 144 | 28 | 28 | 25 | 19 | 4,18 |
| M42 | 11,50 |
F38060 |
64 | 95 | 173 | 122 | 142 | 95 | 181 | 39 | 39 | 33 | 22 | 8,89 |
| M45 | 13,00 |
F38070 |
74 | 95 | 173 | 122 | 142 | 95 | 181 | 39 | 39 | 33 | 24 | 9,12 |
| M48 | 14,50 |
F38080 |
74 | 95 | 173 | 122 | 142 | 95 | 181 | 39 | 39 | 33 | 27 | 9,21 |
