| Сountry of origin | Germany |
|---|---|
| Brand | THIELE |
| Loading direction | Full WLL in any load direction |
| Purpose | Fit most lifting and lashing applications |
| Safety factor | 4:1 |
| Finish | RAL 5002, zinc lamella coating |
| Testing | 100% Magnetic crack tested |

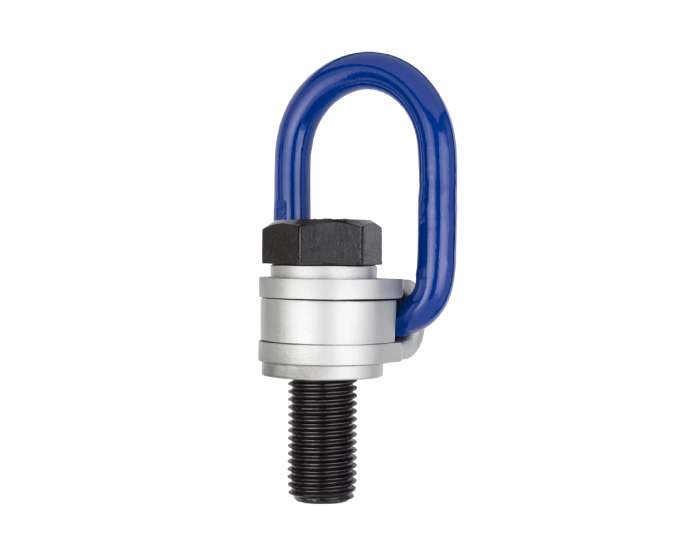

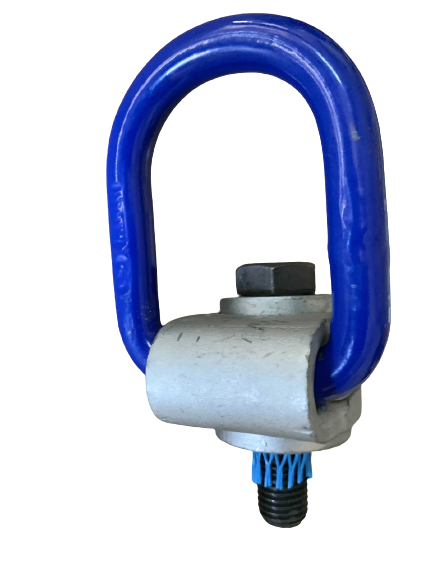

The screw-type XS-Points TWN 1890 are predominantly used in mold making, tool making and vehicle construction. The extra large D-links enable an easy assembling to other lifting components. The bracket can be easily aligned in direction of force. The shape of the XS-Points allows the use of variable screw lengths.
The manufacturing and testing requirements are based on the DIN EN 1677-1.
|
Screw Size d [mm] |
Art.№ |
Working Load Limit [t max.] |
Thread Length G [mm] |
E [mm] |
F [mm] |
C [mm] |
L [mm] |
T [mm] |
B [mm] |
H [mm] |
D [mm] |
SW [mm] |
A [mm] |
Weight [kg] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M8 | F352398 | 0,30 | 17 | 71 | 38 | 43 | 17 | 53 | 35 | 35 | 9 | - | 32 | 0,29 |
| М10 | F35243 | 0,63 | 17 | 71 | 37 | 43 |
17 |
53 |
35 |
35 | 9 | 16 | 32 | 0,30 |
| М12 | F35244 | 1,00 | 22 | 71 | 36 | 43 | 17 | 53 | 35 | 36 | 9 | 18 | 32 | 0,31 |
| М16 | F35245 | 1,70 | 28 | 98 | 46 | 64 | 25 | 70 |
50 |
52 |
13 |
24 | 48 | 0,95 |
| М20 | F35246 | 2,50 | 38 | 98 | 44 | 64 | 26 | 70 | 50 | 54 | 13 | 30 | 48 | 1,10 |
| М24 | F35247 | 4,00 | 40 | 134 | 70 | 71 | 28 | 102 | 58 | 65 | 16 | 36 | 50 | 1,70 |
| М30 | F35249 | 6,00 | 44 | 149 | 73 | 88 | 35 | 110 |
70 |
75 |
20 |
46 | 65 | 3,10 |
| М36 | F35250 | 8,00 | 64 | 149 | 70 | 88 | 35 | 110 | 70 | 79 | 20 | 55 | 67 | 3,50 |
| М42 | F35251 | 10,00 | 74 | 191 | 98 | 106 | 43 | 145 | 84 | 93 | 24 | 65 | 81 | 6,10 |
