| Сountry of origin | Germany |
|---|---|
| Brand | THIELE |
| Purpose | Chain sling component |
| Safety factor | 4:1 |
| Colour | RAL 5002 |

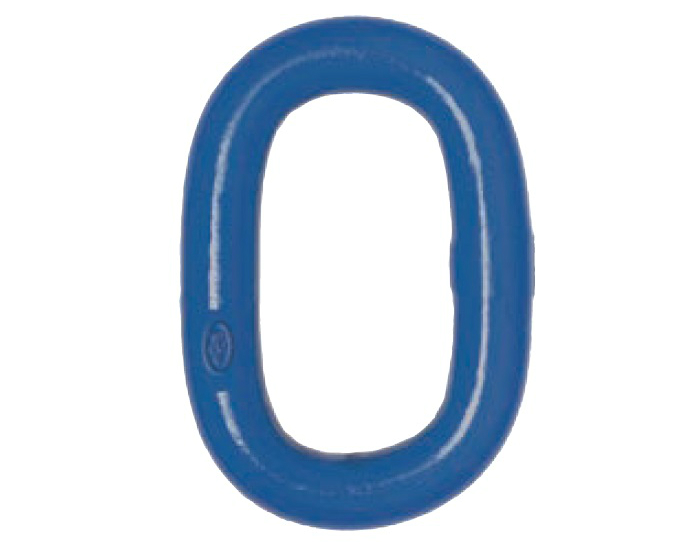

The grade 100 intermediate links TWN 1795 are used to manufacture chain slings. The dimensions are according to the DIN 5688-3 and enable the use of connecting links, e.g. XL-LOKs TWN 1820. The manufacturing and testing requirements are based on DIN EN 1677 parts 1 and 4, under consideration of grade 100 load capacities.
| Trade Size | Art.№ |
Working Load Limit [t max.] |

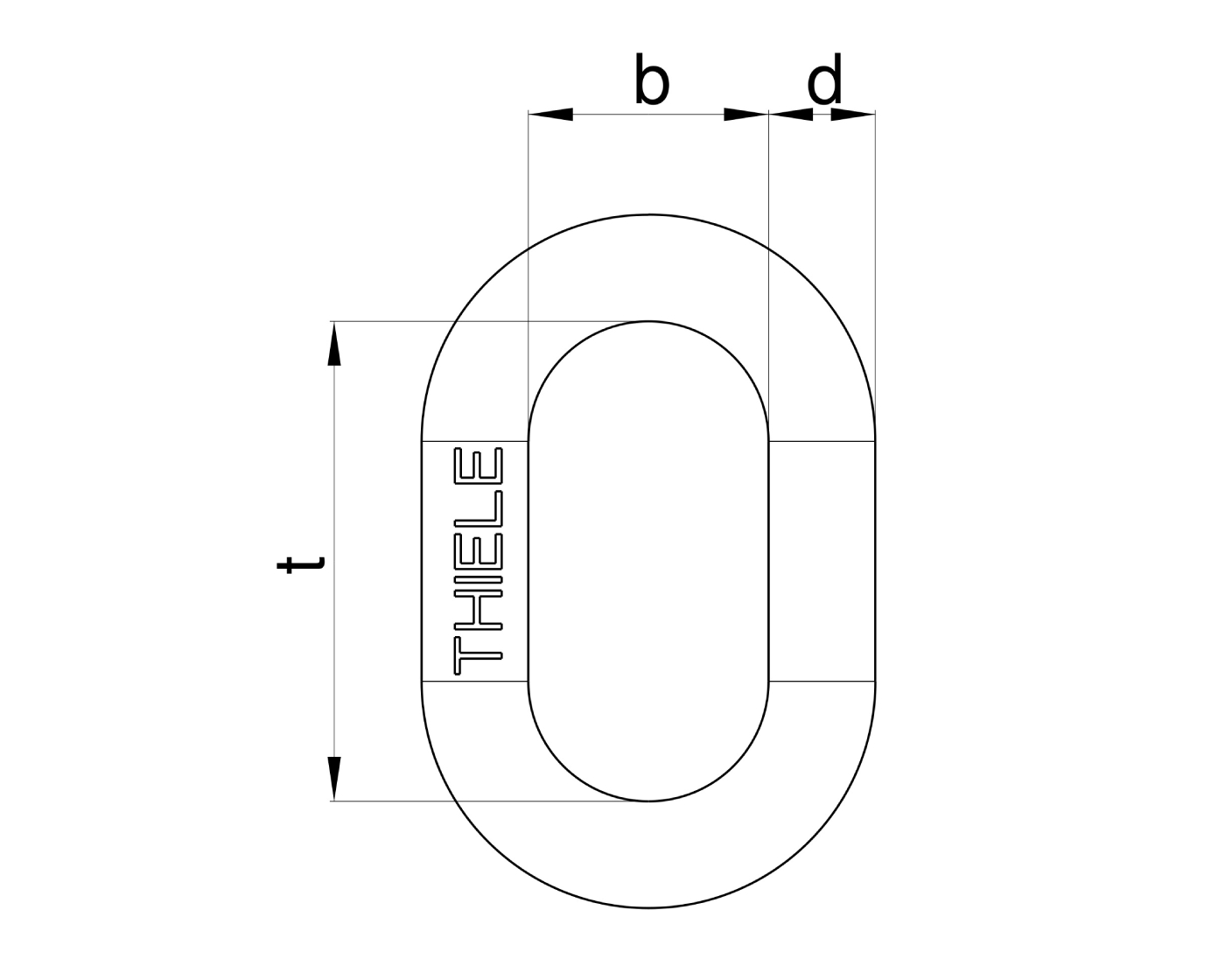

D [mm] |
T [mm] |
B [mm] |
Weight [kg] |
|---|---|---|---|---|---|---|
| B8 | F179508 | 1,40 | 8 | 36 | 18 | 0,05 |
| B10 | F179510 | 2,50 | 10 | 46 | 23 | 0,09 |
| B13 | F179513 | 4,00 | 13 | 60 | 30 | 0,20 |
| B16 | F179516 | 6,70 | 16 | 70 | 35 | 0,36 |
| B20 | F179520 | 10,00 | 20 | 90 | 45 | 0,73 |
| B22 | F179522 | 12,50 | 22 | 100 | 50 | 0,97 |
| B26 | F179526 | 16,00 | 26 | 120 | 60 | 1,60 |
| B28 | F179528 | 19,00 | 28 | 130 | 65 | 1,90 |
| B32 | F179532 | 26,50 | 32 | 140 | 70 | 2,90 |
| B36 | F179536 | 31,30 | 36 | 160 | 80 | 4,20 |
| B40 | F179540 | 40,00 | 40 | 180 | 90 | 5,80 |
| B45 | F179545 | 50,00 | 45 | 200 | 100 | 8,20 |
