| Сountry of origin | Germany |
|---|---|
| Brand | THIELE |
| Purpose | Chain sling component |
| Safety factor | 4:1 |
| Colour | RAL 5002 |

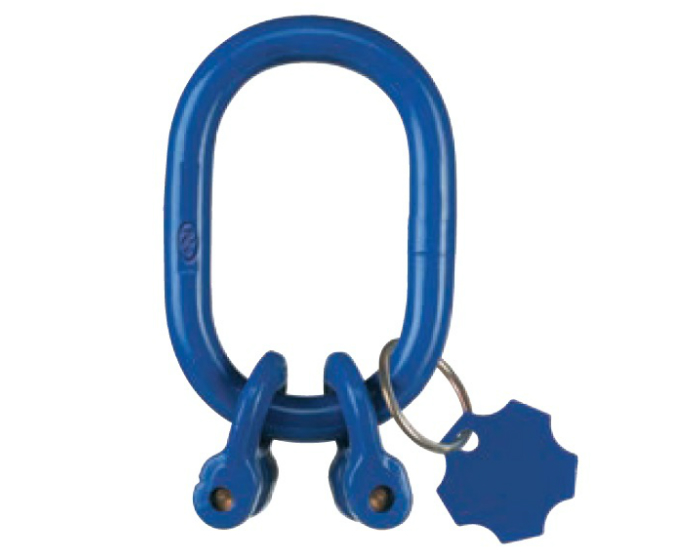

The grade 100 fixed size master links TWN 1810/2 are used to assemble 2-leg chain slings. The permanently installed ring shackles allow the assembly of lifting chains of the appropriate nominal size only. The dimensions of the fixed size master links type A comply with the DIN 5688-3. The manufacturing and testing requirements are based on the DIN EN 1677 parts 1 and 4, under consideration of grade 100 load capacities. Welded-in identification tags contain all the necessary data for the operator.
| Trade Size | Art.№ |
Working Load Limit [t max.] 0°< β ≤ 45° [t] max |

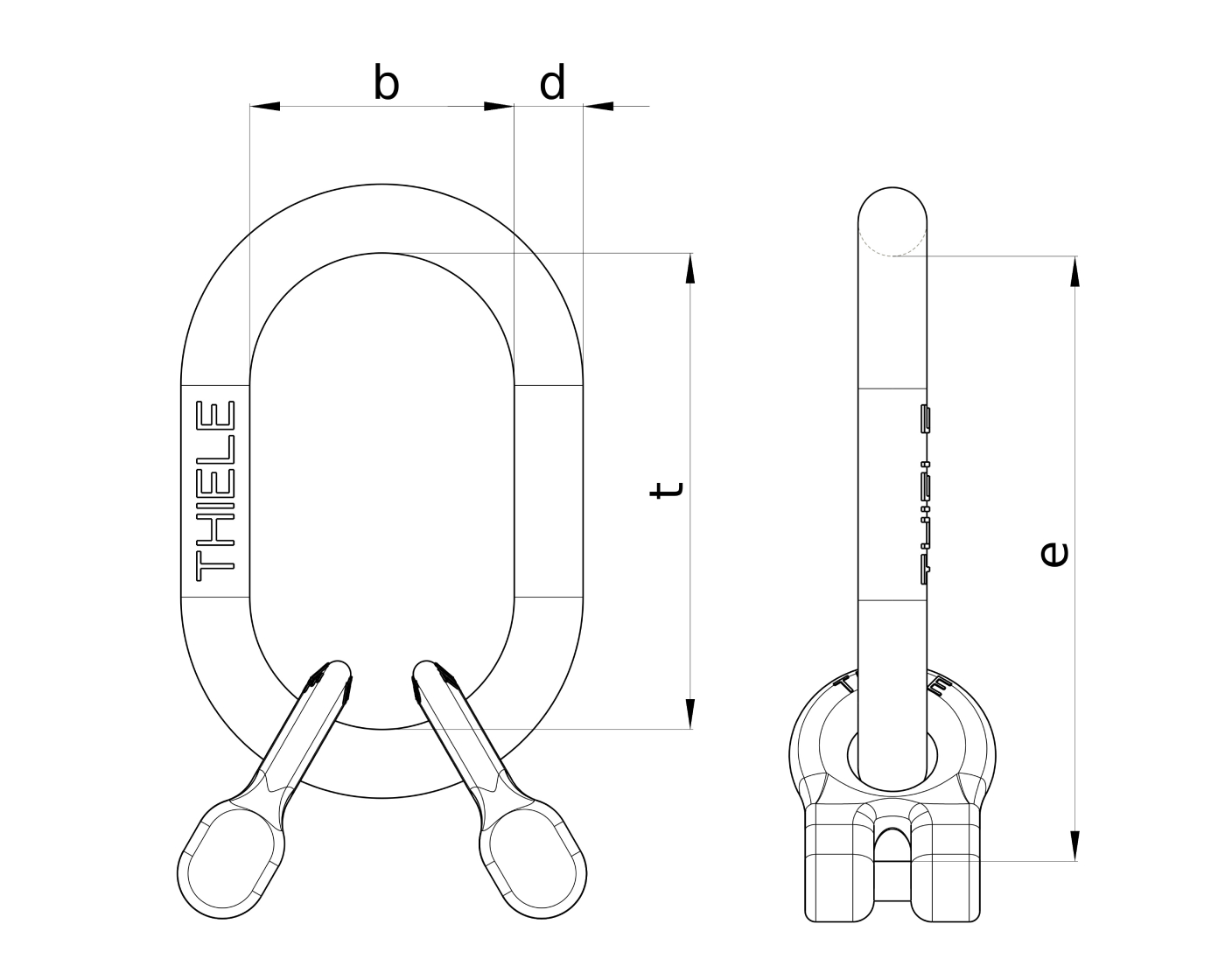

D [mm] | T [mm] | B [mm] | E [mm] |
Suitable for Crane Hooks acc. DIN 15401 [No.] |
Weight [kg] |
|---|---|---|---|---|---|---|---|---|
| 6-10 | F1810206 | 2,00 | 13 |
90 |
50 |
121 |
1,6 | 0,50 |
| 8-10 | F1810208 | 3,55 | 18 |
130 |
70 |
167 |
4 | 1,20 |
| 10-10 | F1810210 | 5,60 | 20 |
140 |
80 |
186 |
5 | 1,90 |
| 13-10 | F1810213 | 9,00 | 26 |
180 |
100 |
239 |
8 | 4,00 |
| 16-10 | F1810216 | 14,00 | 32 |
230 |
125 |
296 |
12 | 7,60 |
| 22-10 | F1810222 | 26,50 | 45 |
320 |
175 |
420 |
- | 19,80 |
