| Сountry of origin | Germany |
|---|---|
| Brand | THIELE |
| Purpose | Chain sling component |
| Safety factor | 4:1 |
| Colour | RAL 5002 |

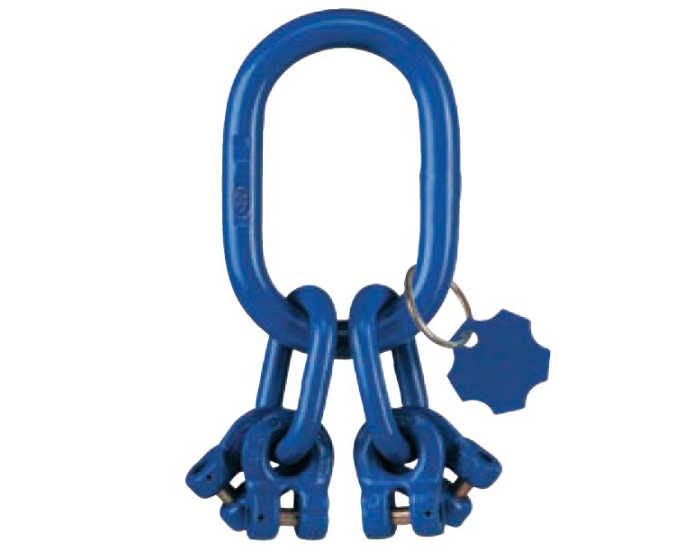

The grade 100 fixed size master links TWN 1810/4 are used to assemble 3- and 4-leg chain slings. The permanently installed ring shackles allow the assembly of lifting chains of the appropriate nominal size only. The dimensions of the fixed size master links type A comply with the DIN 5688-3. The manufacturing and testing requirements are based on the DIN EN 1677 parts 1 and 4, under consideration of grade 100 capacities. Welded-in identification tags contain all the necessary data for the operator.
| Trade Size | Art.№ |
Working Load Limit [t max.] 0°< β ≤ 45° [t] max. |

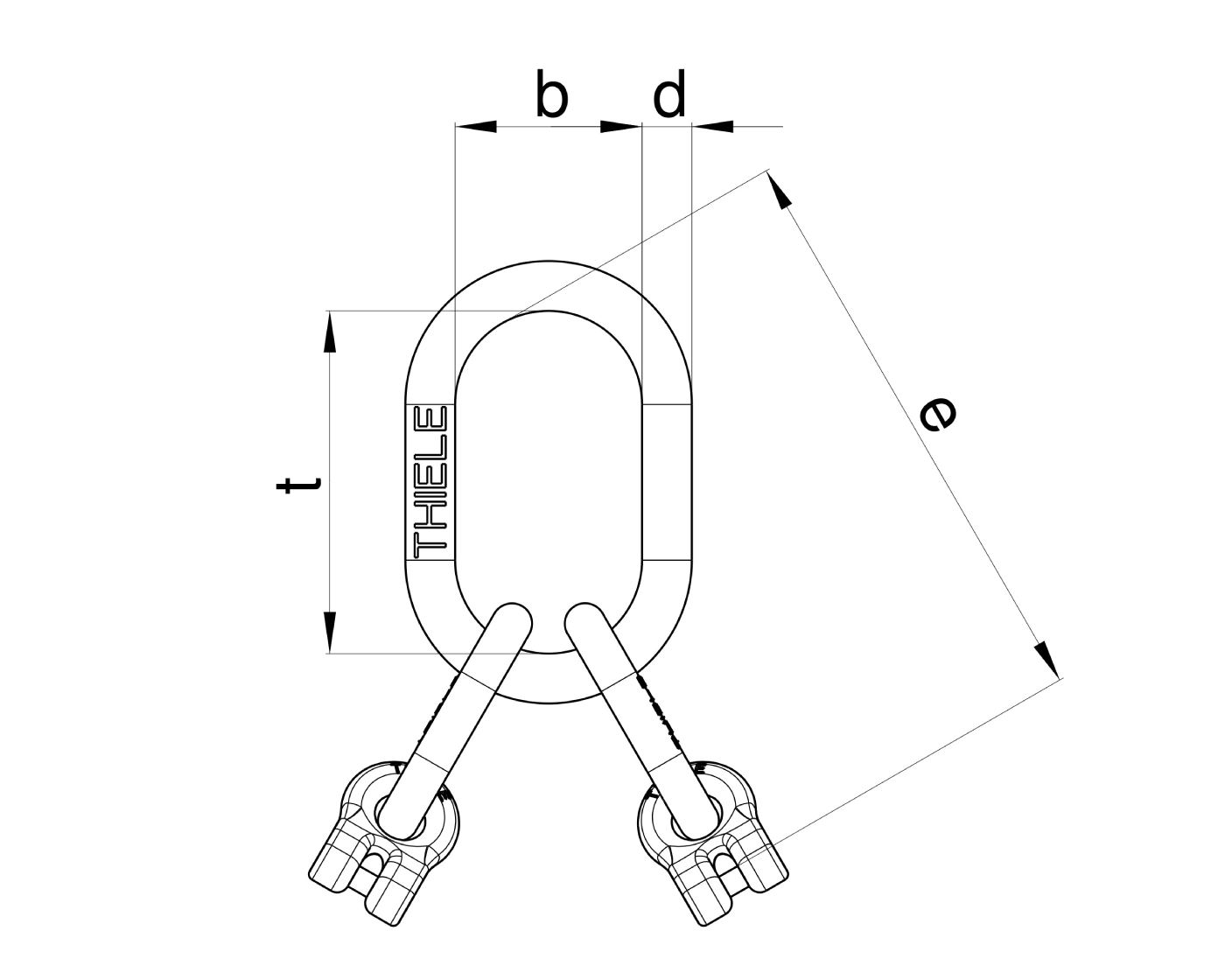

D [mm] | T [mm] | B [mm] | E [mm] |
Suitable for Crane Hooks acc. DIN 15401 [No.] |
Weight [kg] |
|---|---|---|---|---|---|---|---|---|
| 6-10 | F1810406 | 3,00 | 16 |
110 |
60 |
201 |
2,5 | 1,40 |
| 8-10 | F1810408 | 5,30 | 20 |
140 |
80 |
247 |
5 | 2,70 |
| 10-10 | F1810410 | 8,00 | 26 |
180 |
100 |
316 |
8 | 5,40 |
| 13-10 | F1810413 | 14,00 | 32 |
230 |
125 |
409 |
12 | 11,20 |
| 16-10 | F1810416 | 21,20 | 40 |
290 |
160 |
495 |
20 | 19,40 |
| 22-10 | F1810422 | 40,00 | 50 |
340 |
190 |
620 |
43,20 |
