| Сountry of origin | Germany |
|---|---|
| Brand | THIELE |
| Purpose | Chain / wire rope / soft sling component |
| Safety factor | 4:1 |
| Colour | RAL 5002 |

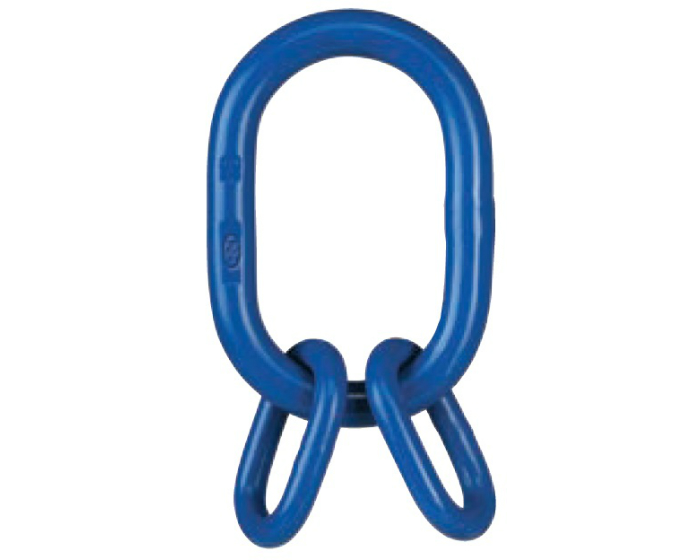

The grade 100 master link assemblies TWN 1814 are used to assemble 3- and 4-leg chain slings. The manufacturing and testing requirements are based on the DIN EN 1677 parts 1 and 4. The dimensions comply with the DIN 5688-3 and enable the use of connecting links, e.g. XL-LOKs TWN 1820. Furthermore, the master link assemblies can be used e.g. to assemble wire rope slings according to the DIN EN 13414-1.
|

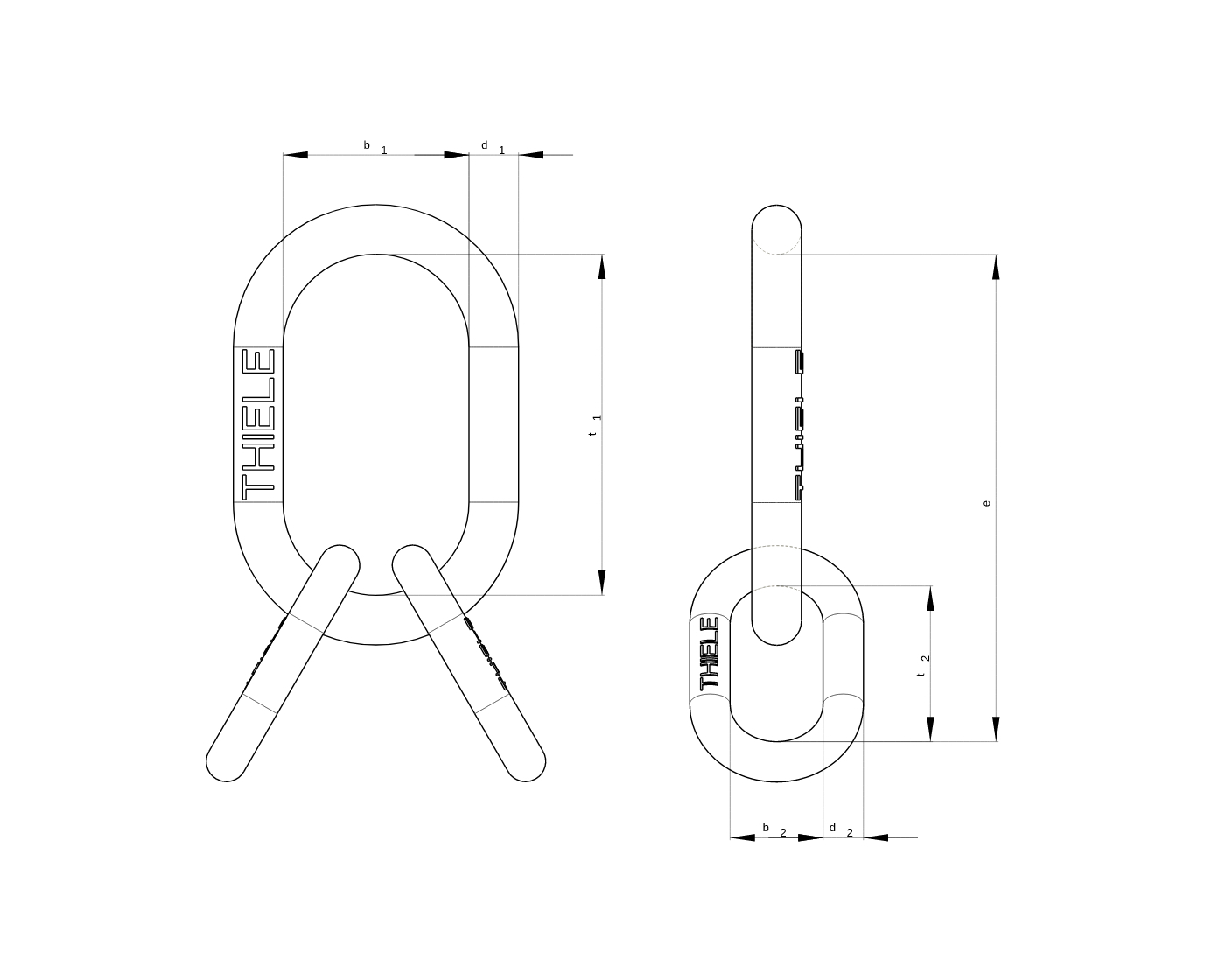

Trade Size |
Art.№ |
Working Load Limit [t max.] |
D1 [mm] |
T1 [mm] |
B1 [mm] |
E [mm] |
D2 [mm] |
T2 [mm] |
B2 [mm] |
Вес [kg] |
|---|---|---|---|---|---|---|---|---|---|---|
| 6-10 | F1814016 | 4,00 |
16 |
110 |
60 |
170 | 13,0 | 60 | 30 | 1,00 |
| 8-10 | F1814020 | 6,00 |
20 |
140 |
80 |
210 |
16,0 | 70 | 35 | 1,80 |
| 10-10 | F1814026 | 10,00 |
26 |
180 |
100 |
270 |
20,0 | 90 | 45 | 3,80 |
| 13-10 | F1814032 | 15,00 |
32 |
230 |
125 |
350 |
26,0 | 120 | 60 | 7,70 |
| 16-10 | F1814040 | 23,60 |
40 |
290 |
160 |
420 | 28,0 | 130 | 65 | 13,00 |
| 20-10 | F1814050A | 33,50 |
50 |
340 |
190 |
500 |
36,0 | 160 | 80 | 25,00 |
| 22-10 | F1814050 | 40,00 |
50 |
340 |
190 |
520 |
40,0 | 180 | 90 | 28,00 |
| 26-10 | F1814063 | 60,00 |
63 |
430 |
240 |
630 | 45,0 | 200 | 100 | 49,00 |
| 32-10 | F1814080 | 85,00 |
80 |
520 |
290 |
740 | 50,0 | 220 | 110 |
86,00 |
