| Сountry of origin | Germany |
|---|---|
| Brand | THIELE |
| Purpose | Wire rope component |
| Safety factor | 4:1 |
| Colour | RAL 5002 |

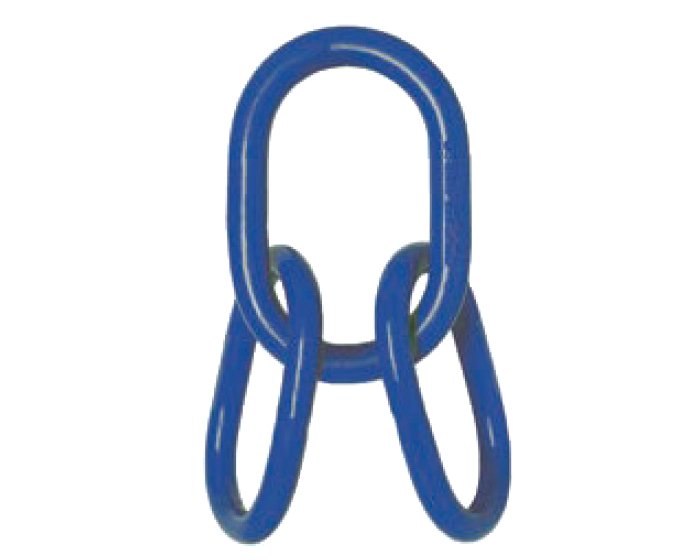

The grade 100 master link assemblies TWN 1815 are used to assemble 3- and 4-leg wire rope slings. The extra large intermediate links enable an easy assembly of wire rope slings. The manufacturing and testing requirements are based on the DIN EN 1677 parts 1 and 4, under consideration of grade 100 load capacities. The dimensions comply with the DIN 5688-3.

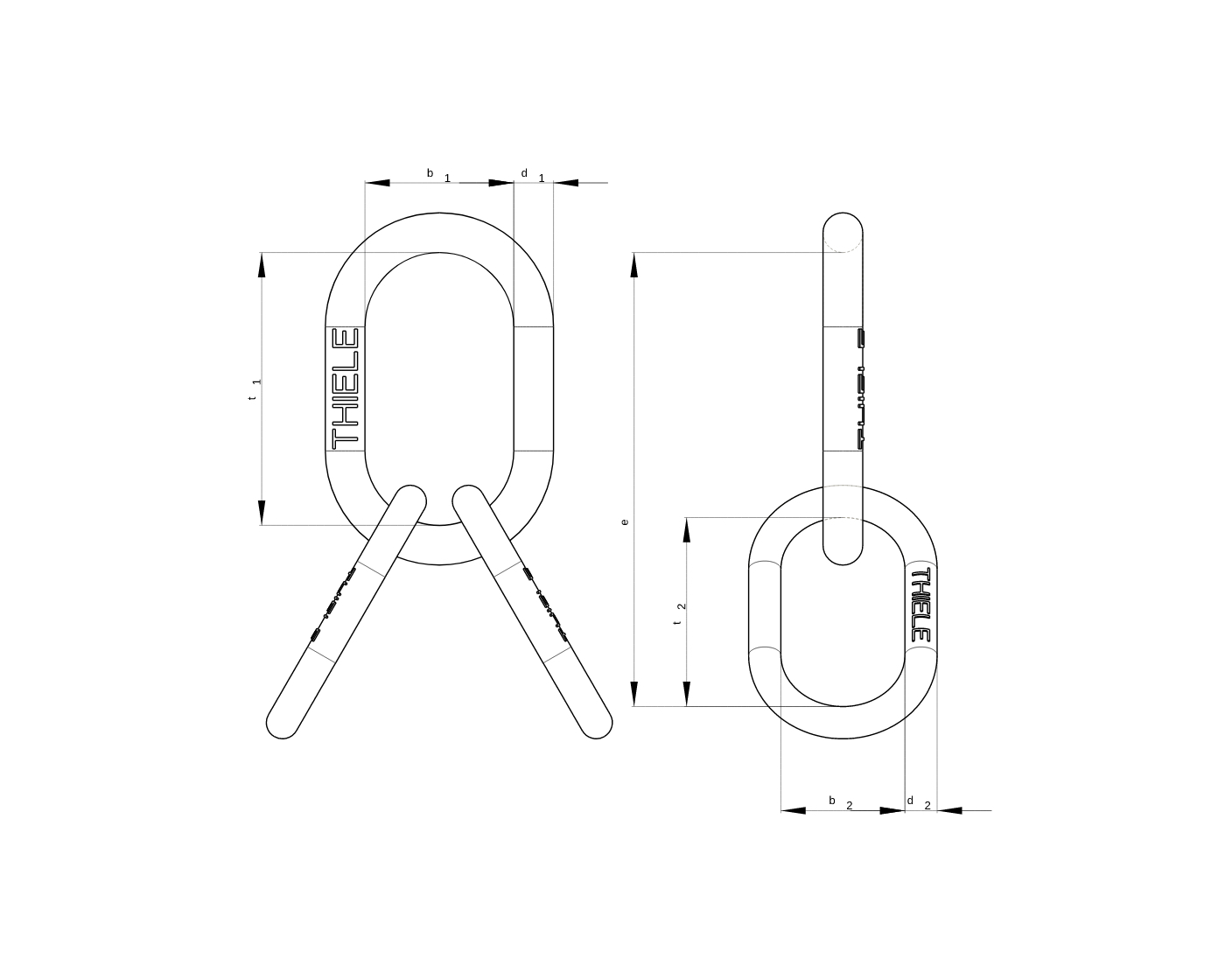

| Art.№ |
Working Load Limit [t max.] |
D1 [mm] |
T1 [mm] |
B1 [mm] |
E [mm] |
D2 [mm] |
T2 [mm] |
B2 [mm] |
Fiber Rope [mm] |
Steel Rope [mm] |
Weight [kg] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F1815016 | 3,50 |
16 |
110 |
60 |
200 | 13 | 90 | 50 | 12,00 | 11,00 | 1,11 |
| F1815018 | 5,00 |
18 |
130 |
70 |
240 | 16 | 110 | 60 | 14,00 | 14,00 | 1,85 |
| F1815022 | 6,00 |
22 |
160 |
90 |
290 |
18 | 130 | 70 | 16,00 | 16,00 | 3,08 |
| F1815026 | 9,30 |
26 |
180 |
100 |
340 | 22 | 160 | 90 | 20,00 | 18,00 | 5,40 |
| F1815032 | 13,90 |
32 |
230 |
125 |
410 |
26 | 180 | 100 | 24,00 | 22,00 | 9,10 |
| F1815036 | 20,00 |
36 |
250 |
140 |
480 |
32 | 230 | 125 | 28,00 | 28,00 | 15,00 |
| F1815045 | 26,30 |
45 |
320 |
175 |
540 |
36 | 250 | 140 | 32,00 | 32,00 | 24,40 |
| F1815050 | 40,00 |
50 |
340 |
190 |
660 |
45 | 320 | 175 | 40,00 | 40,00 | 40,40 |
| F1815056 | 50,20 |
56 |
380 |
210 |
720 |
50 | 340 | 190 | 44,00 | 44,00 | 55,40 |
| F1815063 | 62,60 |
63 |
430 |
240 |
810 |
56 | 380 | 210 | 52,00 | 48,00 | 78,40 |
| F1815085 | 127,20 |
85 |
520 |
290 |
1040 | 80 | 520 | 290 | 60,00 | 60,00 | 201,00 |
