| Сountry of origin | Germany |
|---|---|
| Brand | THIELE |
| Purpose | Chain sling component |
| Safety factor | 4:1 |
| Colour | RAL 5002 |

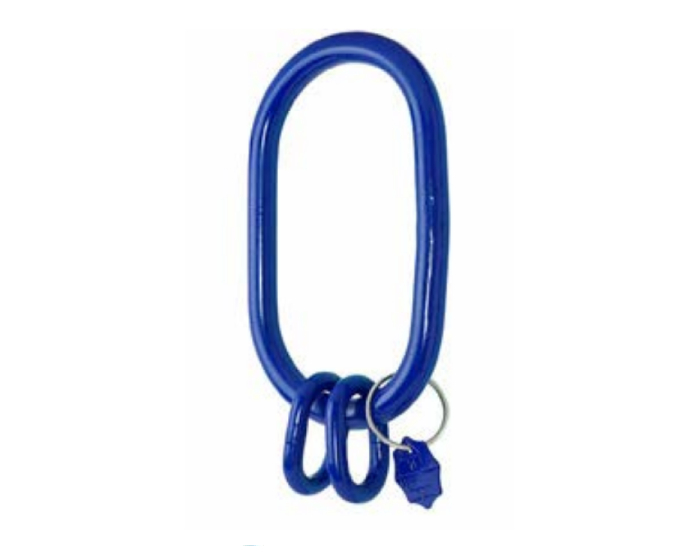

The grade 100 oversized master link assemblies TWN 1816 are used to assemble 2-leg chain slings and are used with big crane hooks according to the DIN 15401. The manufacturing and testing requirements are based on the DIN EN 1677 parts 1 and 4, under consideration of grade 100 load capacities. The dimensions comply with the DIN 5688-3. The intermediate links enable the use of connecting links, e.g. XL-LOKs TWN 1820.
| Trade Size |
ART.№ |
Working Load Limit 0°< β ≤ 45° [t] max. |

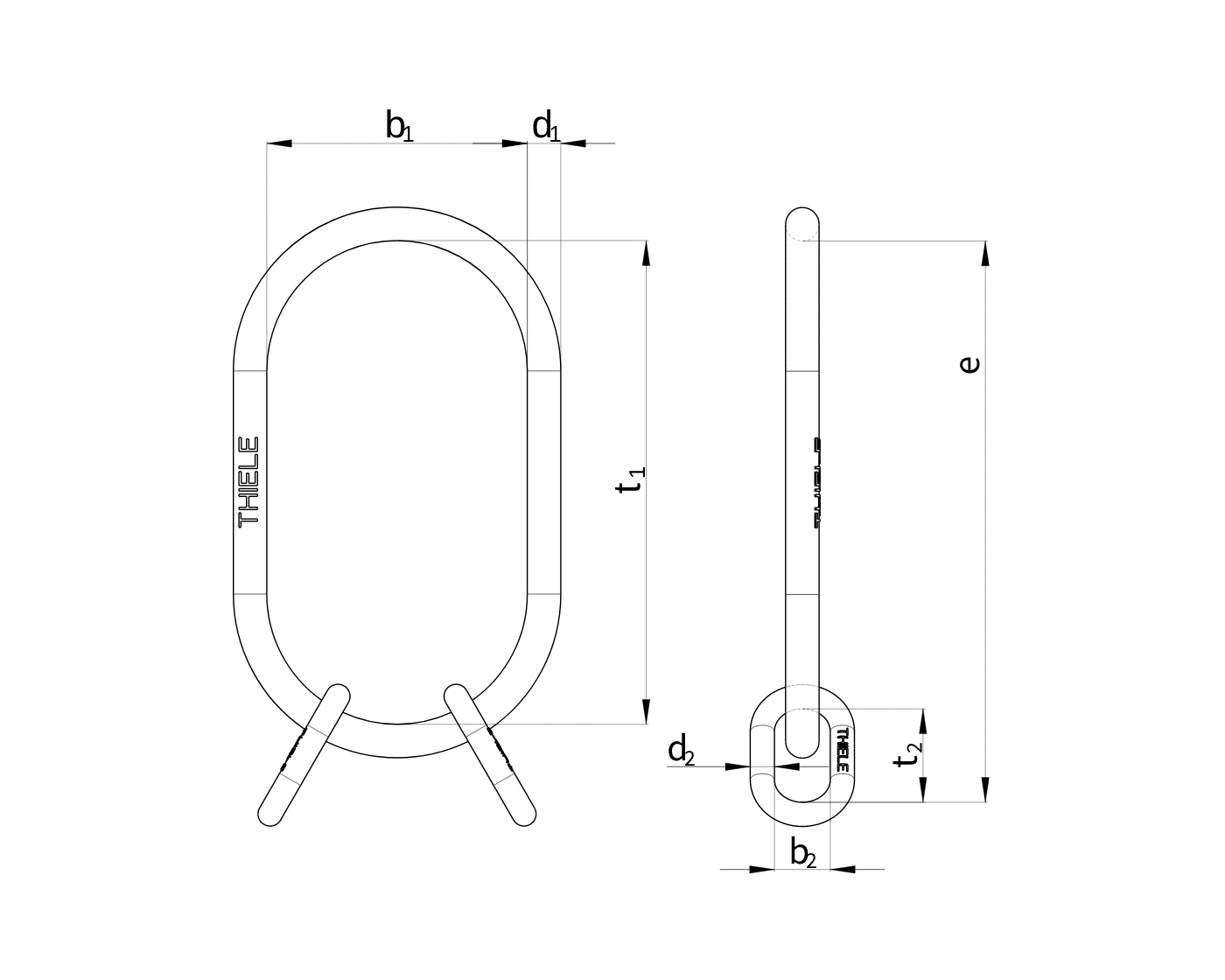

d1 [мм] |
t1 [мм] |
b1 [мм] |
e [мм] |
d2 [мм] |
t2 [мм] |
b2 [мм] |
Assignment to crane hooks acc. to the DIN 15401 [No.] |
Weight [kgs] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 8-10 | F18160816 | 3,55 | 22 | 260 | 140 | 330 | 16 | 70 | 35 | 16 | 2,96 |
| 8-10 | F18160825 | 3,55 | 24 | 340 | 180 | 410 | 16 | 70 | 35 | 25 | 4,14 |
| 10-10 | F18161025 | 5,60 | 28 | 340 | 180 | 410 | 16 | 70 | 35 | 25 | 5,43 |
| 13-10 | F18161325 | 9,00 | 32 | 340 | 180 | 430 | 20 | 90 | 45 | 25 | 7,68 |
| 16-10 | F18161625 | 14,00 | 40 | 340 | 180 | 440 | 22 | 100 | 50 | 25 | 11,90 |
| 20-10 | F18162025 | 22,40 | 45 | 340 | 180 | 480 | 32 | 140 | 70 | 25 | 18,60 |
