| Сountry of origin | Germany |
|---|---|
| Brand | THIELE |
| Purpose | Chain sling component |
| Safety factor | 4:1 |
| Colour | RAL 5002 |

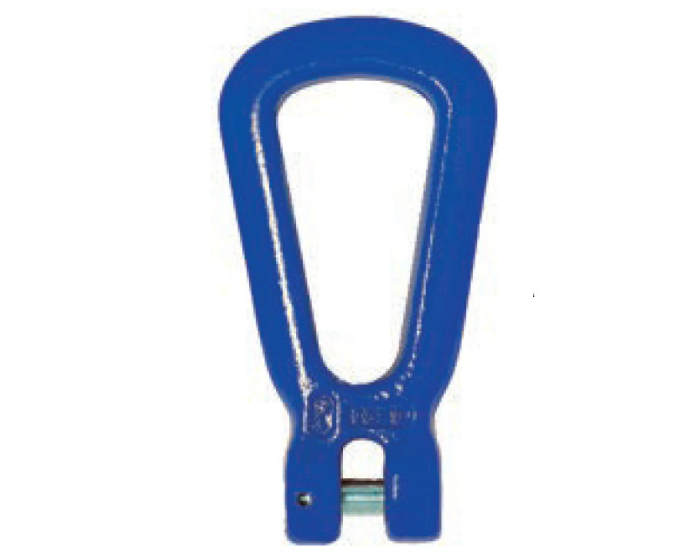

The grade 100 clevis master links TWN 1819 are predominantely used to assemble basket slings for bundling of loads. The manufacturing and testing requirements are based on the DIN EN 1677-1, under consideration of grade 100 load capacities.

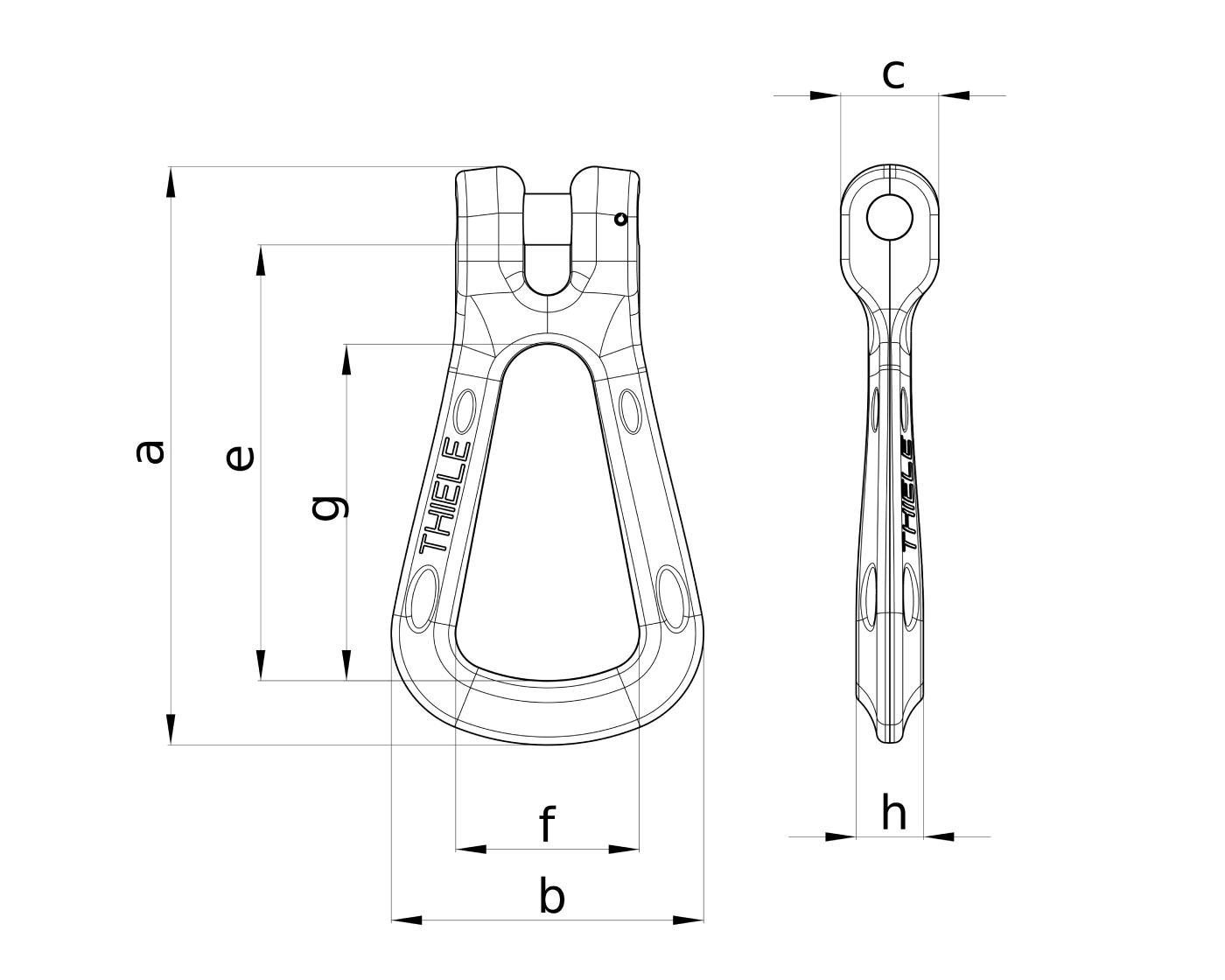

| Trade Size | Art.№ |
Working Load Limit [t max.] |
A [mm] |
B [mm] |
C [mm] |
E [mm] |
F [mm] |
G [mm] |
H [mm] |
Weight [kg] |
|---|---|---|---|---|---|---|---|---|---|---|
| 13-10 | F31025 | 6,70 | 189 | 102 | 32 |
142,5 |
60 | 110 | 22 | 1,11 |
