Сountry of origin Germany
Brand THIELE
Purpose Chain sling component
Safety factor 4:1
Colour RAL 5002

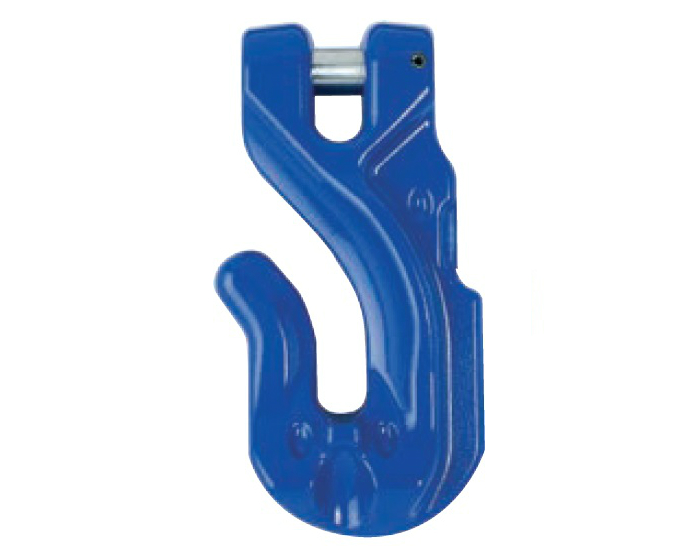

The grade 100 clevis shortening hooks TWN 1827 are used to adjust the strand lengths of chain slings and lashing chains. The clevis design enables the direct attachment to the chain. The manufacturing and testing requirements comply with the DIN EN 1677-1 and DIN 5692, under consideration of grade 100 load capacities. The shortening hook has been tested in combination with the lifting chain. The extra wide chain support ensures a particularly firm fit of the inserted chain link. At the same time the link is protected from getting damaged.

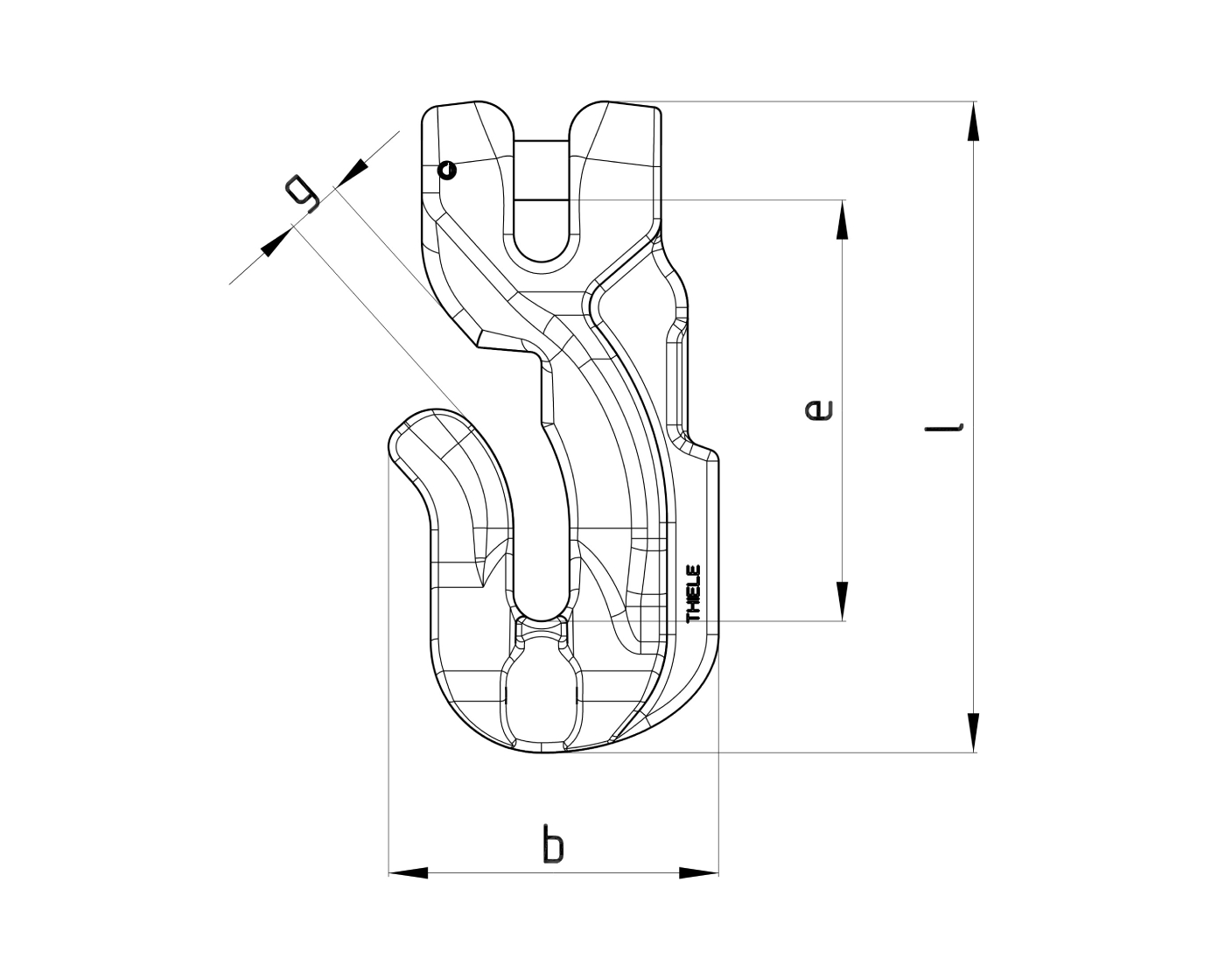

Trade Size
Art.№
Working Load Limit
[t max.]
E
[mm]
G
[mm]
L
[mm]
B
[mm]
Weight
[kg]
7-10  F33203 1,90 68,50 8,50 102,50 54 0,50
8-10 F33204 2,50 71 9,50 110 56 0,53
10-10 F33214 4,00 83 12,50 132 67 0,93
13-10 F33224 6,70 109 15,50 168 83 1,99
16-10 F33234 10,00 137 18,50 208 101 3,62
20-10 F33236 16,00 170  23,50    260 127 7,38
22-10 F33238 19,00 186 25,50 286  139 9,95
26-10 F33242 26,50 220 30 337 164 15,26
32-10 F33244 40,00 271 37 415 202 28,18
