| Сountry of origin | Germany |
|---|---|
| Brand | THIELE |

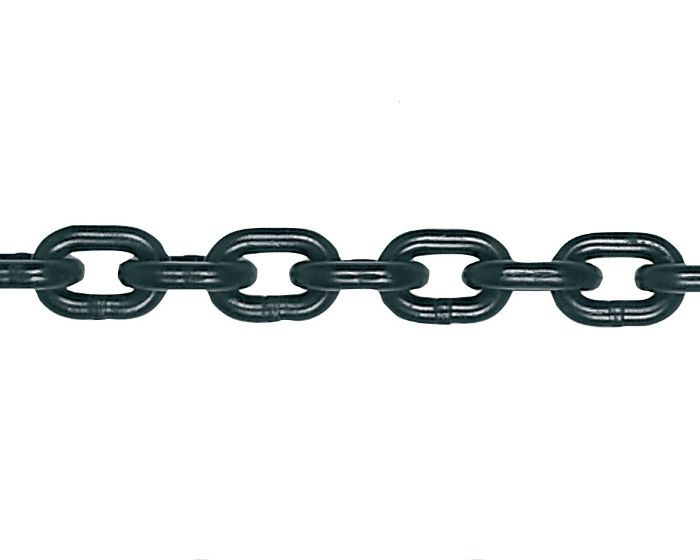

| Purpose | Round Link Chains for slings |
| Material | |
| Elongation at break (completed finish) | min. 20 % |
| Breaking Stress | min. 800 N/mm2 |
| Component Strength | |
| Temperature Application Range | -40 – 200 °C (100 %)1) 200 – 300 °C (90 %)1) 300 – 400 °C (75 %)1) |
| Colour Round Steel Link Chains (AQUA lacquer) | black painted (RAL 9005) |
| Colour Forgings | powder painted red (RAL 3003) |
| Standards | European and International |
Legal Marking of Grade 80 Chains by the German DGUV
The number 4 under the H represents a registration number of the German statutory accident insurance (DGUV) and helps to identify/locate the manufacturer in case of damage. The marking is also recognized by the international certification societies as well as by the work authorities ect., among others the A. I. B. in Brussels.
| Trade size |
Art.№ self-coloured |
Art.№ (RAL 9005) |
Art.№ (corrothiel) |

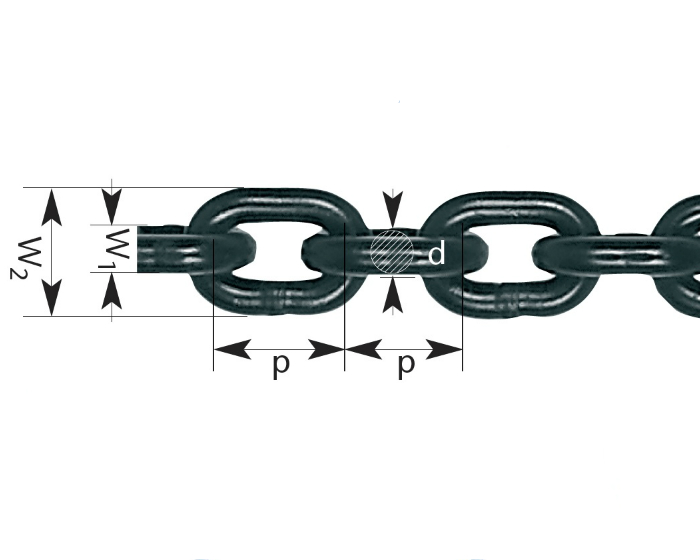

Nominal Size d [mm] |
Nominal Size tol [mm] |
Pitch p [mm] |
Pitch tol [mm] |
Inside Width w1 [mm min.] |
Outside Width w2 [mm max.] |
Working Load Limit [t max.] |
Weight [kg] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6-8 | F01452 | F01453 | F01454 | 6,00 | 0,24 | 18,00 | 0,5 | 7,80 | 22,20 | 1,12 | 0,8 |
| 7-8 | F01458 | F01459 | F01457 | 7,20 | 0,20 | 21,80 | 0,6 | 9,45 | 25,20 | 1,50 | 1,1 |
| 8-8 | F01464 | F01465 | F01429 | 8,00 | 0,32 | 24,00 | 0,7 | 10,40 | 29,60 | 2,00 | 1,4 |
| 10-8 | F01469 | F01470 | F01450 | 10,00 | 0,40 | 30,00 | 0,9 | 13,00 | 37,00 | 3,15 | 2,2 |
| 13-8 | F01474 | F01475 | F01476 | 13,00 | 0,52 | 39,00 | 1,2 | 16,90 | 48,10 | 5,30 | 3,8 |
| 16-8 | F01479 | F01480 | F01487 | 16,00 | 0,64 | 48,00 | 1,4 | 20,80 | 59,20 | 8,00 | 5,7 |
| 18-8 | F01484 | F01485 | F04580 | 18,00 | 0,90 | 54,00 | 1,6 | 23,40 | 66,60 | 10,00 | 7,3 |
| 20-8 | F01494 | F01495 | F04606 | 20,00 | 1,00 | 60,00 | 1,8 | 26,00 | 74,00 | 12,50 | 9,0 |
| 22-8 | F01499 | F01500 | F04629 | 22,00 | 1,10 | 66,00 | 2,0 | 28,60 | 81,40 | 15,00 | 10,9 |
| 26-8 | F01514 | F01515 | F04695 | 26,00 | 1,30 | 78,00 | 2,3 | 33,80 | 96,20 | 21,20 | 15,2 |
| 28-8 | F01519 | F01520 | F01521 | 28,00 | 1,40 | 84,00 | 2,5 | 36,40 | 104,00 | 25,00 | 17,6 |
| 32-8 | F01524 | F01525 | F01526 | 32,00 | 1,60 | 96,00 | 2,9 | 41,60 | 118,00 | 31,50 | 23,0 |
| 36-8 | F01529 | F01530 | F04814 | 36,00 | 1,80 | 108,00 | 3,0 | 46,80 | 133,00 | 40,00 | 29,0 |
| 40-8 | F01534 | F01535 | F04838 | 40,00 | 2,00 | 120,00 | 4,0 | 52,00 | 148,00 | 50,00 | 36,0 |
| 45-8 | F01539 | F01540 | F04889 | 45,00 | 2,30 | 135,00 | 4,0 | 58,50 | 167,00 | 63,00 | 45,5 |
| 50-8 | F01545 | F01546 | F04900 | 50,00 | 2,50 | 150,00 | 4,5 | 67,50 | 180,00 | 80,00 | 56,0 |
| 56-8 | F01555 | F01556 | F04908 | 56,00 | 2,80 | 170,00 | 5,0 | 75,60 | 201,60 | 100,00 | 72,5 |
| 63-8 | - | F01566 | - | 63,00 | 3,20 | 190,00 | 6,0 | 88,00 | 230,00 | 125,00 | 89,0 |
| 71-8 | - | F01598 | - | 71,00 | 3,60 | 210,00 | 6,0 | 99,00 | 260,00 | 160,00 | 110,0 |
Temperature Application Range
| Temperature Application Range | Working Load Limit |
|---|---|
| -40°C to 200°C | 100% |
| over 200°C to 300°C | 90% |
| over 300°C to 380°C | 75% |
Load Factor at Asymmetry
| No. of Legs | 1 |
2 |
2 |
3 |
3 | 4 | 4 |
|---|---|---|---|---|---|---|---|
| Inclination Angle ß | - | 0°– 45° | 46° – 60° | 0°– 45° | 46° – 60° | 0°– 45° | 46° – 60° |
| Load Factor | 1 | 1 | 1 | 1,4 | 1 | 1,4 | 1 |
