| Сountry of origin | Germany |
|---|---|
| Brand | THIELE |
| Purpose | Chain Sling Components |
| Safety factor | 4:1 |
| Colour | RAL 3003 |

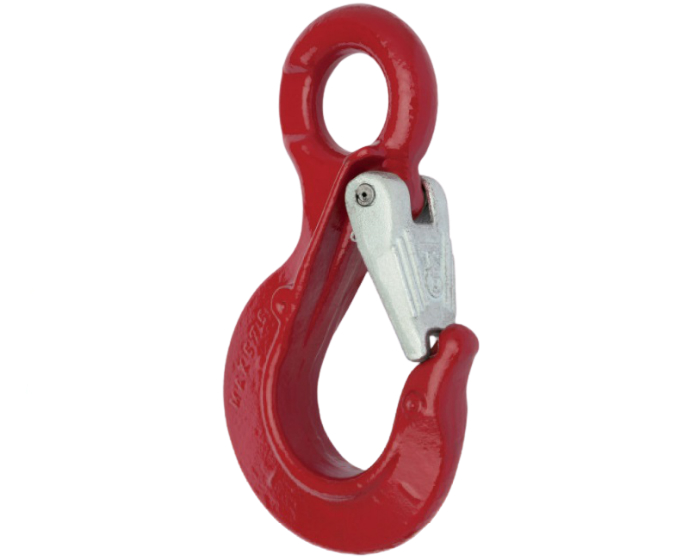

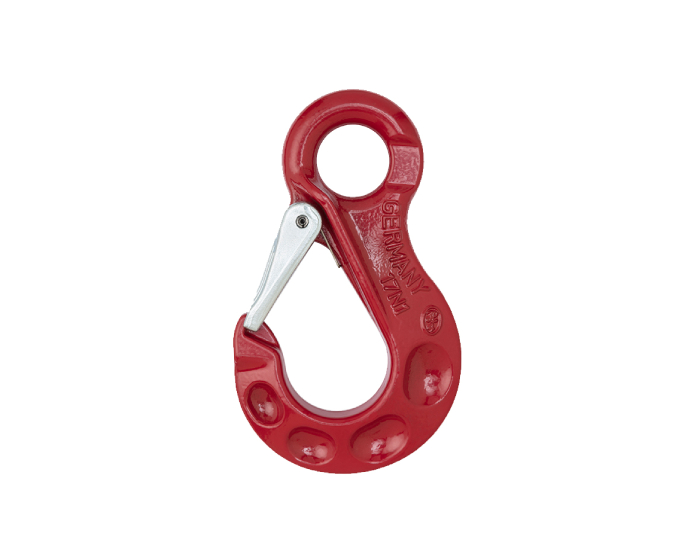

The grade 80 eye sling hooks TWN 0858/1 are used to assemble standard chain slings. The lifting chains are assembled by using connecting links, e.g. THI-LOK®s TWN 1320. The forged safety latch prevents an unintentional detachment from the load. The sling hooks comply with the DIN EN 1677-2.

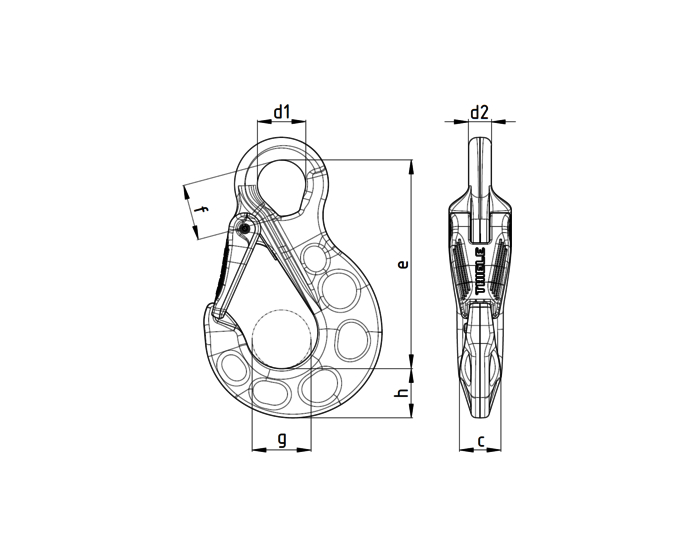

| Trade size | Art.№ |
Working Load Limit [t max.] |
E [mm] |
D1 [mm] |
D2 [mm] |
G [mm] |
H [mm] |
C [mm] |
Weight [kg] |
|---|---|---|---|---|---|---|---|---|---|
| 6-8 | F329010 | 1,12 | 91 | 21 | 11 | 24 | 20 | 17 | 0,36 |
| 8-8 | F329110 | 2,00 | 118 | 28 | 14 | 30 | 25 | 22 | 0,78 |
| 10-8 | F329210 | 3,15 | 145 | 36 | 18 | 37 | 32 | 28 | 1,49 |
| 13-8 | F329310 | 5,30 | 168 | 42 | 21 | 42 | 41 | 35 | 2,54 |
| 16-8 | F329410 | 8,00 | 210 | 54 | 25 | 51 | 50 | 41 | 4,64 |
| 18/20-8 | F329510 | 12,50 | 270 | 62 | 30 | 65 | 58 | 55 | 8,70 |
| 22-8 | F329710 | 15,00 | 271 | 65 | 30 | 70 | 62 | 54 | 9,86 |
| 26-8 | F329810 | 21,20 | 302 | 70 | 33 | 75 | 71 | 59 | 14,96 |
| 32-8 | F329910 | 31,50 | 350 | 80 | 38 | 90 | 86 | 67 | 23,80 |
The spare part sets TWN 1908/5 consist of a safety latch, spring and 2 dowel pins and are suitable for grade 80 hooks TWN 0858/1 and TWN 1340/1 and also fit the grade 100-sling hooks TWN 1840/1 and TWN 1841/1.
| Trade size | Art.№ | Packing unit |
Weight [kg] |
|---|---|---|---|
| 6-8 | F48730 | 1 set | 0,02 |
| 8-8 | F48732 | 1 set | 0,03 |
| 10-8 | F48734 | 1 set | 0,13 |
| 13-8 | F48736 | 1 set | 0,26 |
| 16-8 | F48738 | 1 set |
0,31 |
| 18/20-8 | F48742 | 1 set | 0,75 |
| 22-8 | F48744 | 1 set | 0,98 |
| 26-8 | F48746 | 1 set | 1,43 |
| 32-8 | F48747 | 1 set | 2,43 |
