| Сountry of origin | Germany |
|---|---|
| Brand | THIELE |
| Purpose | Chain sling components |
| Safety factor | 4:1 |
| Colour | RAL 3003 |

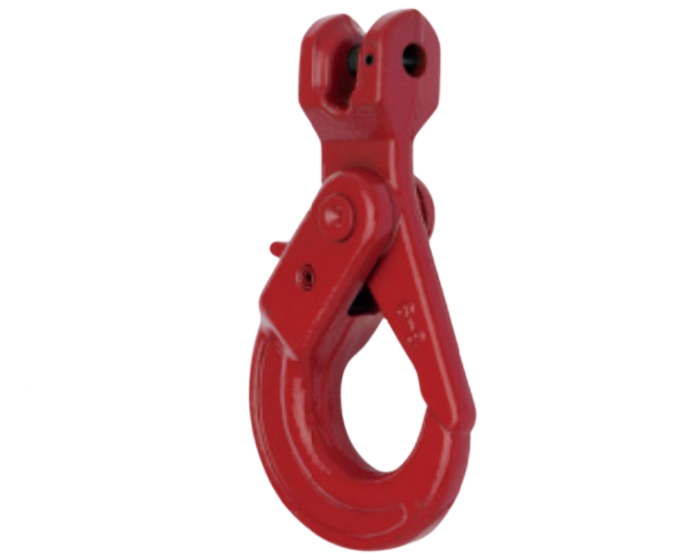

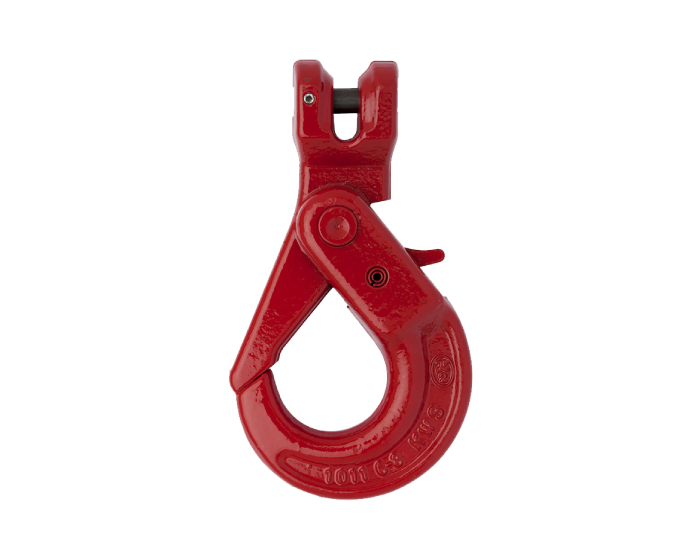

The grade 80 clevis self-locking hooks TWN 0799 are used to assemble chain slings and are often used in the construction industry. The clevis design enables the direct attachment to the lifting chain. The hooks lock automatically when under load and may only be reopened manually if not under load anymore. The self-locking hooks comply with the DIN EN 1677-3.
| Trade size | Art.№ |

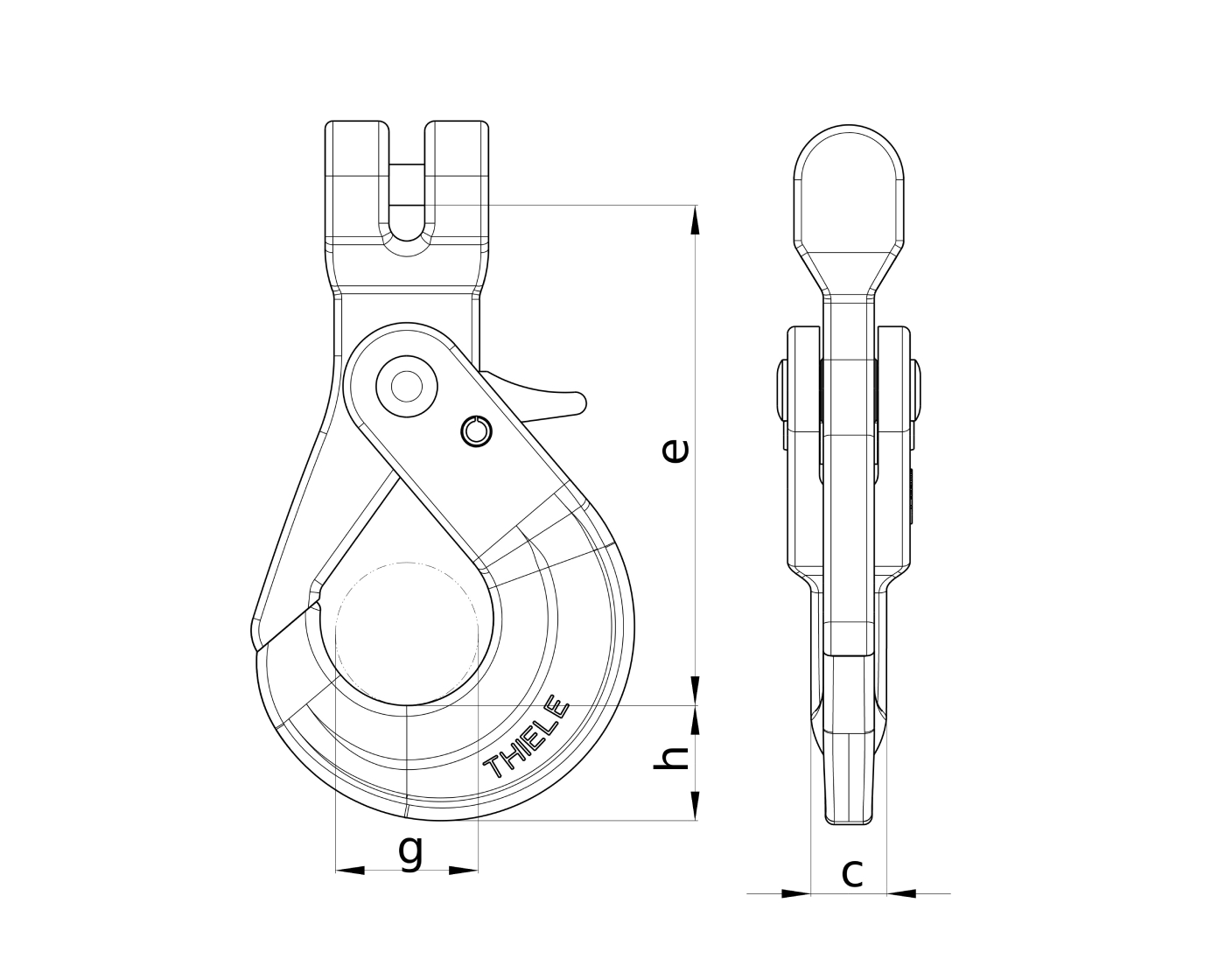

Working Load Limit [t max.] |
E [mm] |
G [mm] |
H [mm] |
C [mm] |
Weight [kg] |
|---|---|---|---|---|---|---|---|
| 6-8 | Z07279 | 1,12 | 98 | 28 | 22 | 15 | 0,57 |
| 8-8 | Z07280 | 2,00 | 122 | 33 | 25 | 20 | 0,93 |
| 10-8 | Z07281 | 3,15 | 150 | 45 | 35 | 27 | 1,75 |
| 13-8 | Z07282 | 5,30 | 185 | 54 | 41 | 33 | 3,25 |
| 16-8 |
Z07296 |
8,00 | 215 | 67 | 54 | 39 | 6,20 |
| 18/20-8 | F0922055 | 12,50 | 215 | 74 | 57 | 43 | 7,28 |
The spare part sets TWN 0967/0 consist of a bolt and a dowel pin and are suitable for grade 80 clevis self-locking hooks TWN 0799.
| Trade size | Art.№ | Packing unit |
Weight [kg] |
|---|---|---|---|
| 6-8 | F333700 | 1 set | 0,01 |
| 8-8 | F333711 | 1 set | 0,02 |
| 10-8 | F333721 | 1 set | 0,03 |
| 13-8 | F333730 |
1 set |
0,06 |
| 16-8 | F333741 | 1 set |
0,17 |
| 18/20-8 | F0922057 | 1 set | 0,22 |
TWN 0967/1
The trigger sets TWN 0967/1 consist of a retainer, spring and dowel pin and are suitable for grade 80 self-locking hooks TWN 0798 and TWN 0799.
| Trade size | Art.№ | Packing unit |
Weight [kgs] |
|---|---|---|---|
| 6-8 | F329090 | 1 set | 0,02 |
| 8-8 | F329190 | 1 set | 0,03 |
| 10-8 | F329290 | 1 set | 0,04 |
| 13-8 | F329390 | 1 set | 0,06 |
| 16-8 | F329490 | 1 set |
0,11 |
| 18/20-8 | F0922056 | 1 set | 0,27 |
