| Сountry of origin | Germany |
|---|---|
| Brand | THIELE |
| Purpose | Chain sling component |
| Safety factor | 4:1 |
| Colour | RAL 3003 |

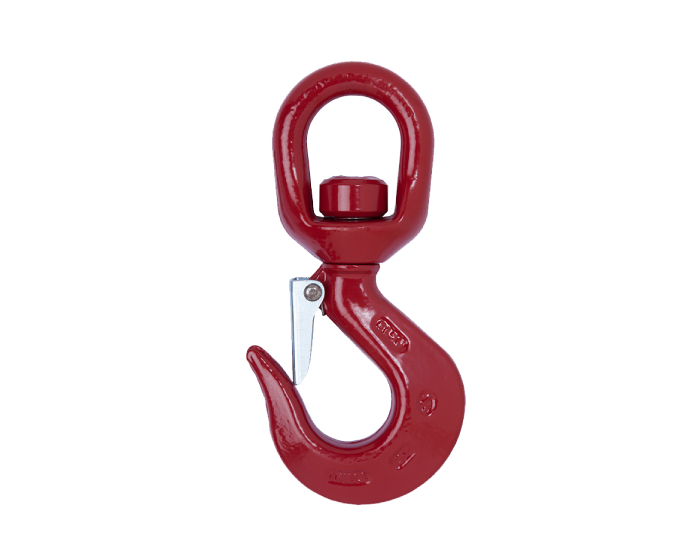

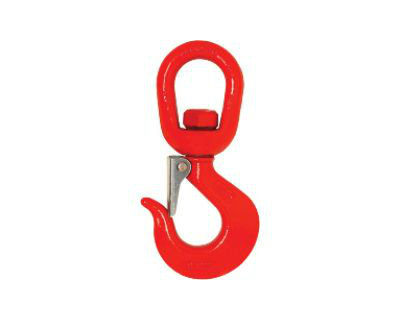

The grade 80 swivel hooks TWN 0854 are used to assemble chain slings. The swivels enable the chain strands to be aligned without twisting. The lifting chains are assembled by using connecting links, e.g. THI-LOK®s TWN 1320. The manufacturing and testing requirements comply with the DIN EN 1677-2.

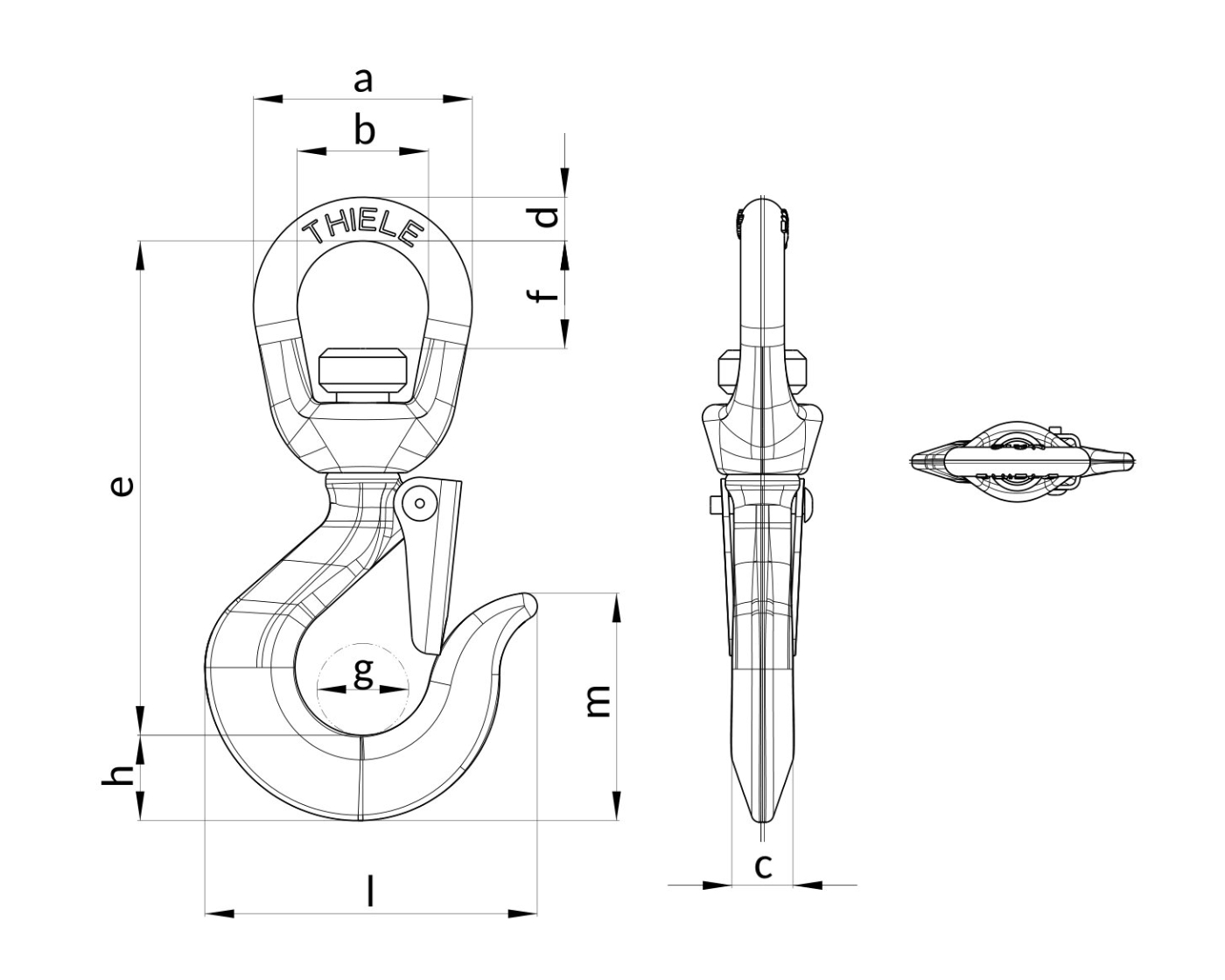

| Trade size | Art.№ |
Working Load Limit [t max.] |
D [mm] |
F [mm] |
B [mm] |
E [mm] |
G [mm] |
A [mm] |
C [mm] |
H [mm] |
I [mm] |
M [mm] |
Weight [kg] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0,75-8M | F32103 | 0,75 |
10 |
25 | 30 | 113,50 | 19 | 50 | 13 | 14 | 62,50 |
42,50 |
0,37 |
| 6-8 | F32100 | 1,12 | 10 | 25 | 30 | 113 | 21 | 50 | 14 |
19 |
73 |
52 | 0,38 |
| 8-8 | F32110 | 2,00 |
16 |
42 | 44 | 155 | 25 | 76 | 19 |
24,50 |
88 |
68 |
1,00 |
| 10-8 |
F32120 |
3,15 |
16 |
42 | 44 | 162 | 28 | 76 | 20.50 | 28,50 |
104 |
72 | 1,20 |
| 13-8 | F32130 | 5,30 |
19 |
43 | 51 | 190 | 34 | 89 | 28 | 33 |
120 |
87 | 2,08 |
| 16-8 | F32140 | 8,00 | 26 | 60 | 64 | 247 | 42 | 114 | 35 | 43 |
156 |
110 |
4,45 |
The spare part sets TWN 0920 - 0922 consist of a safety latch, spring and a semi-tubular rivet and are suitable for grade 80 swivel hooks TWN 0854 and eye sling hooks TWN 0855/1.
| Trade size | Art.№ | Packing unit |
Weight [kg] |
|---|---|---|---|
| 0,75-8 | F48420 | 1 set | 0,02 |
| 8-8 | F48423 | 1 set |
0,03 |
| 10-8 | F48426 | 1 set | 0,04 |
| 13-8 | F48429 | 1 set | 0,11 |
| 16-8 | F48469 | 1 set | 0,19 |
