| Сountry of origin | Germany |
|---|---|
| Brand | THIELE |
| Purpose | Сhain sling component |
| Safety factor | 4:1 |
| Colour | RAL 3003 |

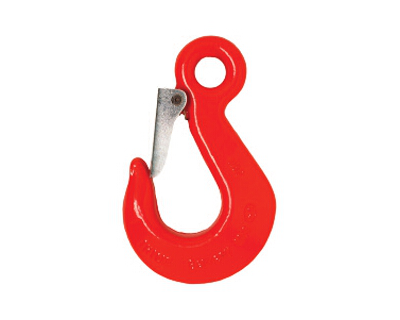

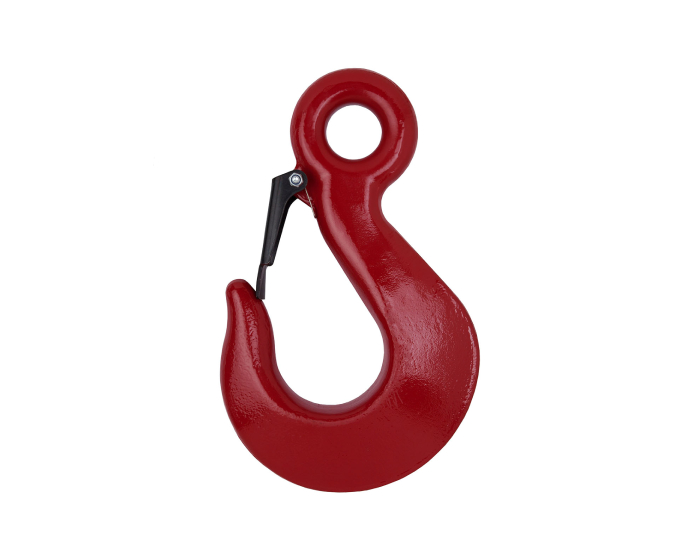

The grade 80 eye sling hooks TWN 0855/1 are used to assemble chain slings. The lifting chains are assembled by using connecting links, e.g. THI-LOK®s TWN 1320. The safety latch prevents unintentional detachment from the load. The sling hooks comply with the DIN EN 1677-2.

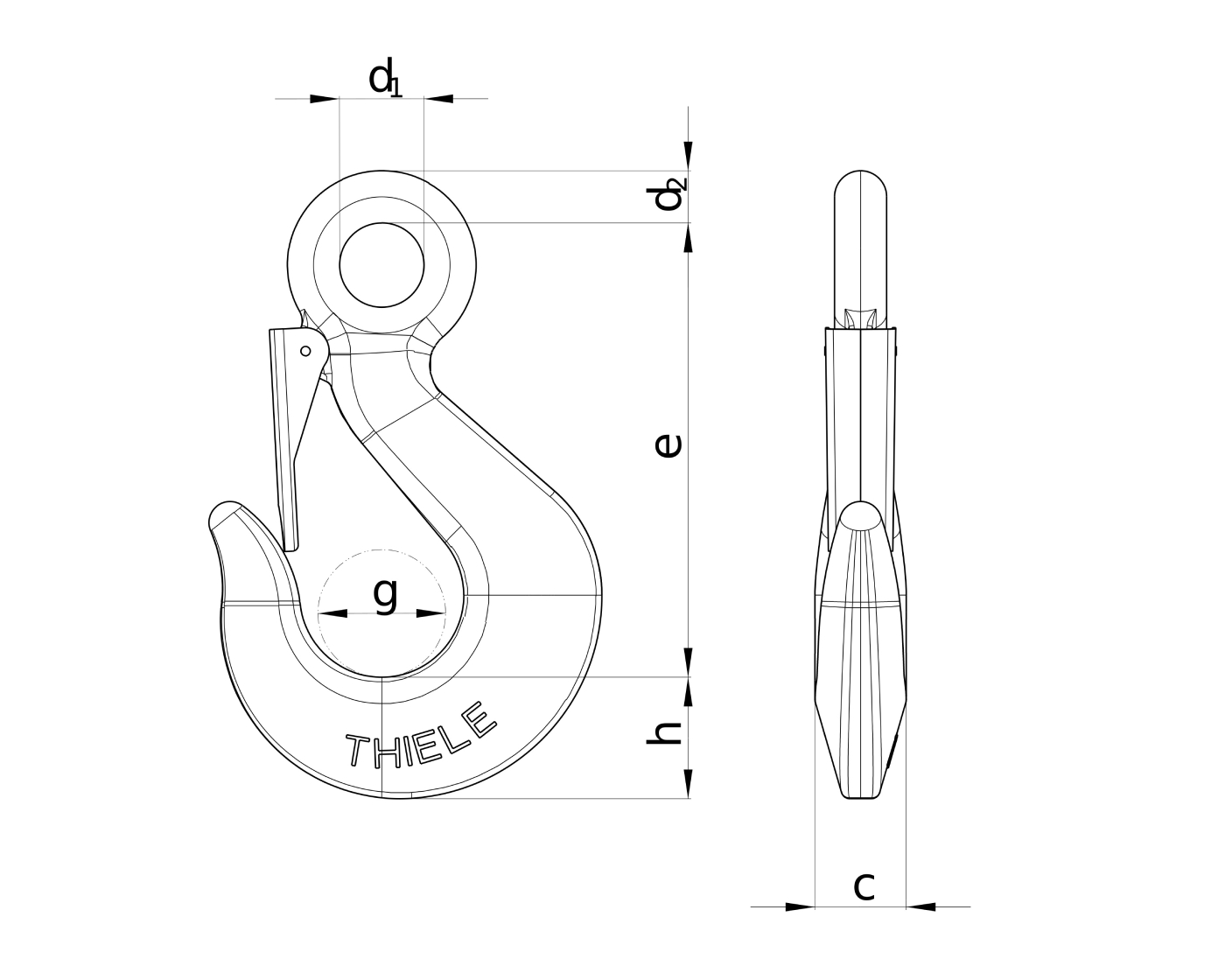

| Trade size | Art.№ |
Working Load Limit [t max.] |
E [mm] |
D1 [mm] |
G [mm] |
H [mm] |
C [mm] |
D2 [mm] |
Weight [kg] |
|---|---|---|---|---|---|---|---|---|---|
| 36-8 | Z06159 | 40,00 | 388 | 72 | 109 | 103 | 78 | 44,50 | 32,30 |
| 40-8 | Z06160 | 50,00 | 442 | 84 | 124 | 116 | 89 | 50,50 | 47,00 |
| 45-8 |
Z06161 |
63,00 | 494 | 90 | 138 | 130 | 99 | 56 | 64,40 |
| 50-8 |
Z06162 |
80,00 | 610 | 102 | 155 | 145 | 110 | 63 | 81,90 |
The spare part sets TWN 0920 - 0922 consist of a safety latch, spring and a semi-tubular rivet and are suitable for grade 80 swivel hooks TWN 0854 and eye sling hooks TWN 0855/1.
| Trade size | Art.№ | Packing unit |
Weight [kg] |
|---|---|---|---|
| 36-8 | Z06163 | 1 set | 0,80 |
| 40-8 | Z06164 | 1 set | 1,00 |
| 45-8 | Z06165 | 1 set | 1,40 |
| 50-8 | Z06166 | 1 set | 1,90 |
