| Сountry of origin | Germany |
|---|---|
| Brand | THIELE |
| Purpose | Chain sling component |
| Safety factor | 4:1 |
| Colour | RAL 3003 |

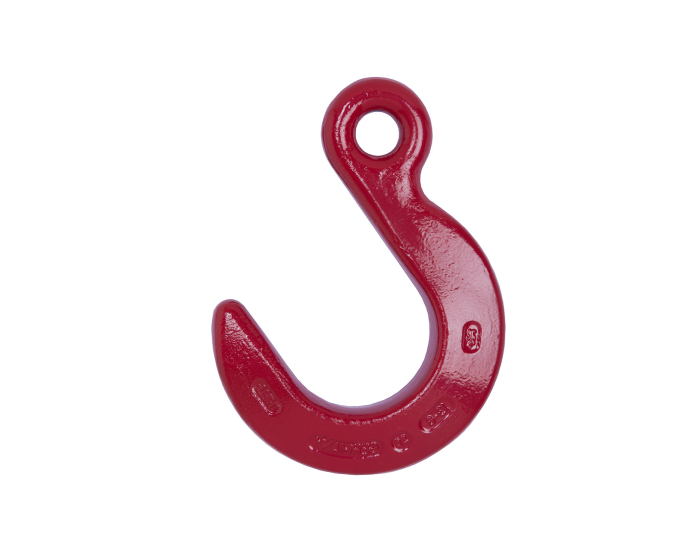

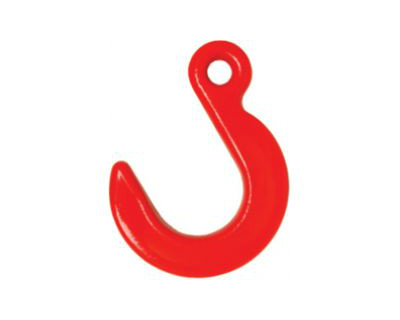

The grade 80 eye foundry hooks TWN 0856 are used to assemble chain slings, primarily for foundries. The associated lifting chains are assembled by using connecting links, e.g. THI-LOK®s TWN 1320. The manufacturing and testing requirements comply with the DIN EN 1677-1.
|

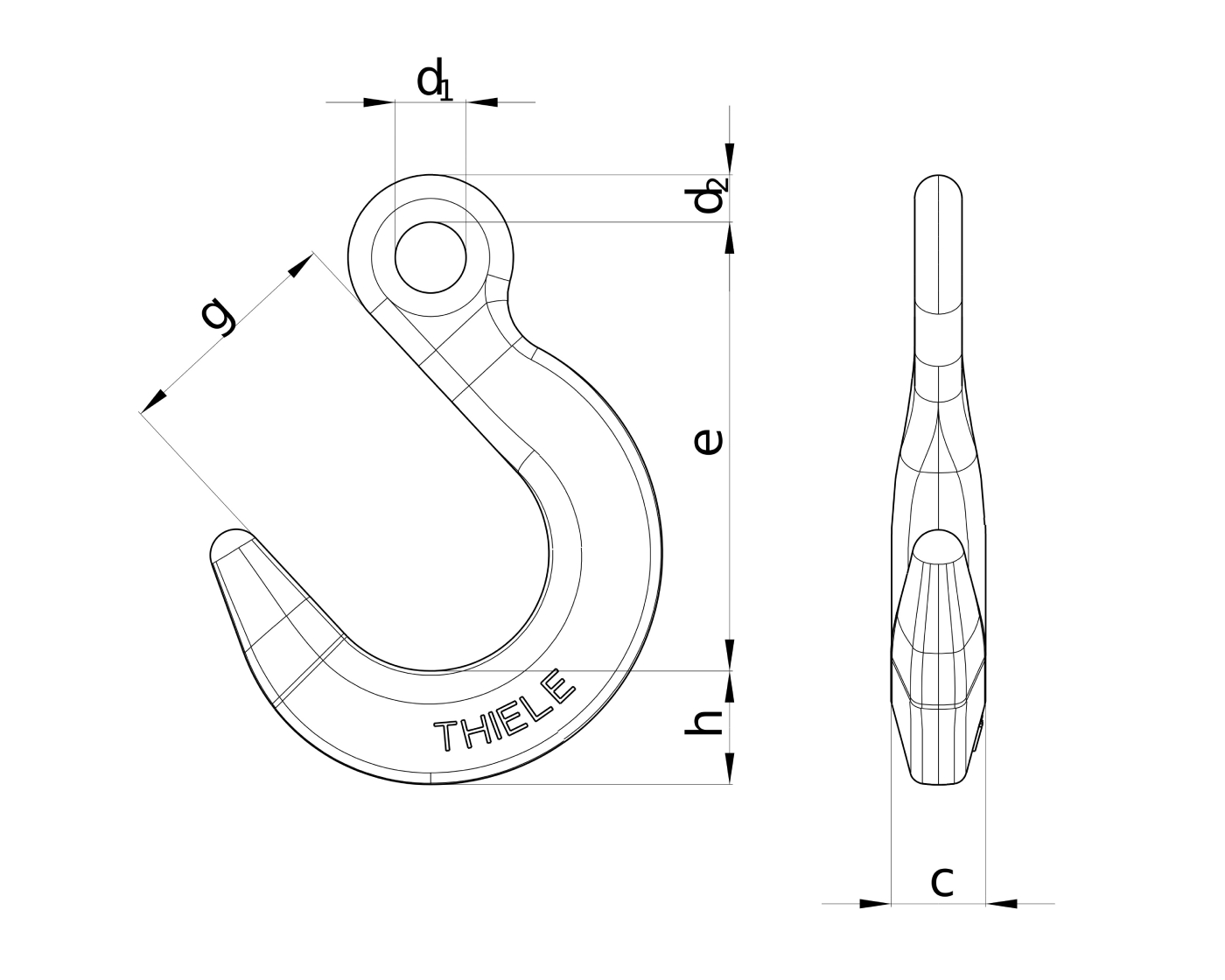

Trade size |
Model |
Art.№ |
Working Load Limit [t max.] |
E [mm] |
D1 [mm] |
G [mm] |
H [mm] |
C [mm] |
D2 [mm] |
Weight [kg] |
|---|---|---|---|---|---|---|---|---|---|---|
| 6-8 | TWN 0856A | Z00456 | 1,12 | 95 | 13 | 50 | 24 | 20 | 10 | 0,53 |
| 8-8 | TWN 0856A | F32360 | 2,00 | 125 | 18 | 66 | 33 | 27 | 14 | 1,06 |
| 10-8 | TWN 0856A | F32370 | 3,15 | 146 | 20 | 76 | 35 | 32 | 16,50 | 1,66 |
| 13-8 |
TWN 0856A |
F32380 | 5,30 | 175 | 26 | 89 | 41 | 38 | 20 | 3,16 |
| 16-8 | TWN 0856A | F32390 | 8,00 | 205 | 32 | 102 | 48 | 45 | 23 | 5,14 |
| 18/20-8 |
TWN 0856A |
F32400 | 12,50 | 235 | 40 | 114 | 54 | 51 | 25,50 | 7,42 |
| 22-8 |
TWN 0856 |
Z00457 | 15,00 | 265 | 47 | 127 | 70 | 65 | 30 | 10,88 |
| 26-8 | TWN 0856 | Z00458 | 21,20 | 305 | 52 | 136 | 80 | 72 | 35 | 16,49 |
| 32-8 | TWN 0856A | Z00459 | 31,50 | 327 | 60 | 162 | 93 | 83 | 38 | 24,44 |
