| Сountry of origin | Germany |
|---|---|
| Brand | THIELE |
| Purpose | Chain sling component |
| Safety factor | 4:1 |
| Colour | RAL 3003 |

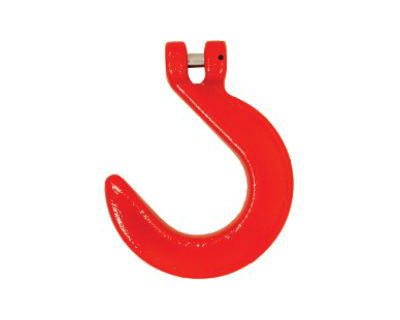

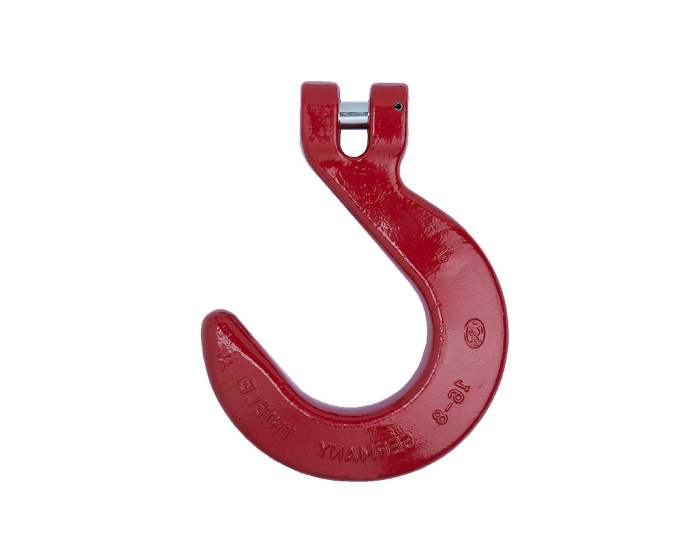

The grade 80 clevis foundry hooks TWN 0859 are used to assemble chain slings, primarily for foundries. The manufacturing and testing requirements comply with the DIN EN 1677-1.
| Trade size | Art.№ |
Working Load Limit [t max.] |

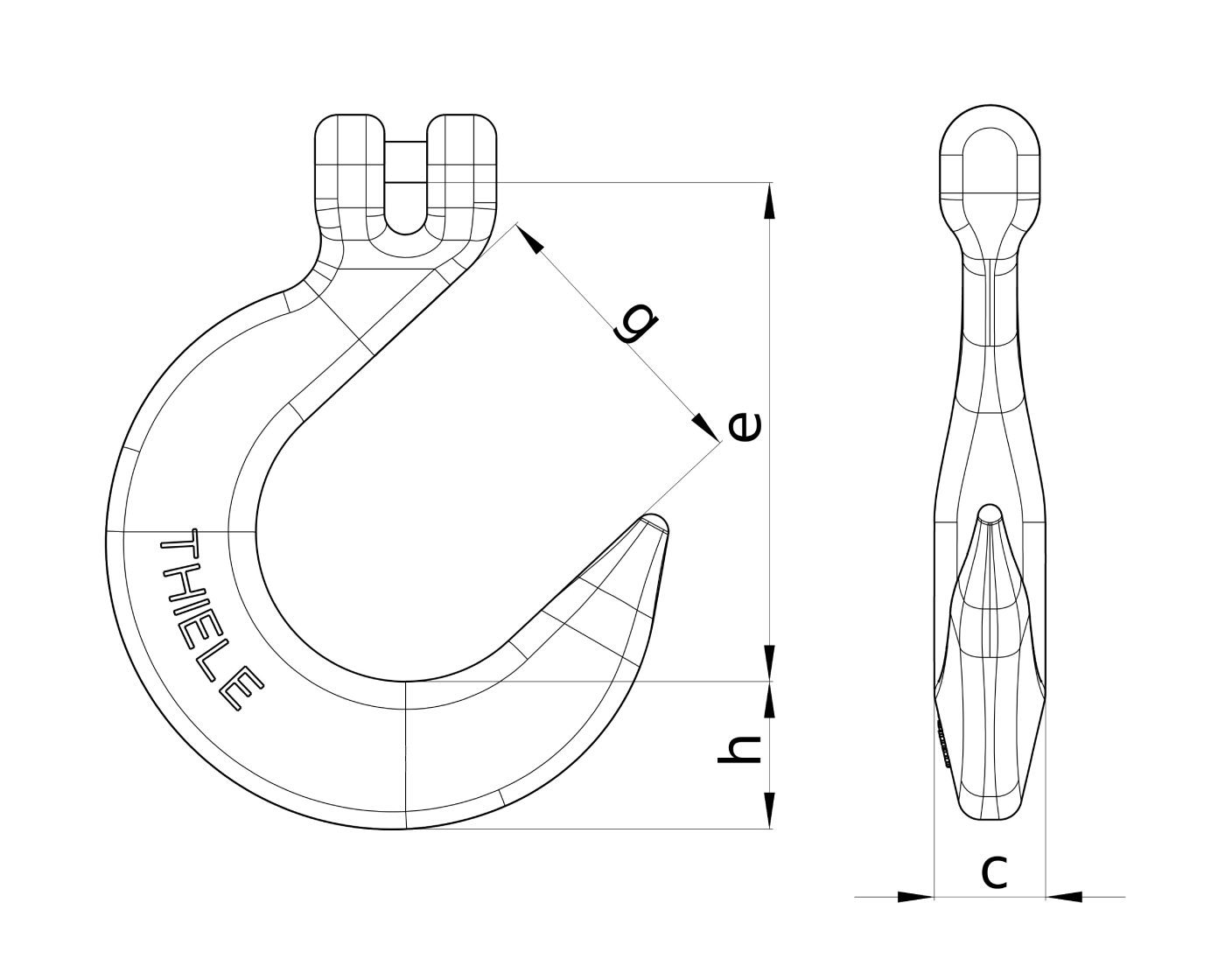

E [mm] |
G [mm] |
H [mm] |
C [mm] |
Weight [kgs] |
|---|---|---|---|---|---|---|---|
| 8-8 | F33310 | 2,00 | 110 | 66 | 33 | 27 | 1,00 |
| 10-8 | F33320 | 3,15 | 133 | 76 | 35 | 32 | 1,61 |
| 13-8 | F33330 | 5,30 | 159 | 89 | 41 | 38 | 3,40 |
| 16-8 | F33340 | 8,00 | 189 | 102 | 48 | 45 | 5,50 |
TWN 0904/0 Load Pin for Clevis Type Hooks
| Trade size | Art.№ | Packing unit |
Weight [kgs] |
|---|---|---|---|
| 8-8 | F48352 | 1 set | 0,01 |
| 10-8 | F48355 | 1 set | 0,03 |
| 13-8 | F48358 | 1 set | 0,07 |
| 16-8 | F48361 | 1 set | 0,11 |
