Сountry of origin Germany
Brand THIELE
Purpose Chain Sling Components
Safety factor 4:1
Colour RAL 3003

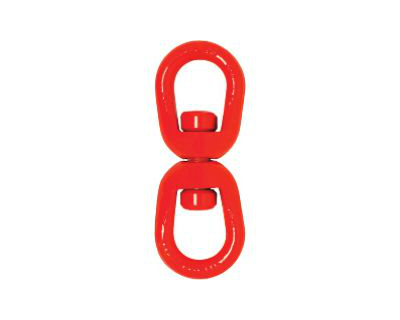

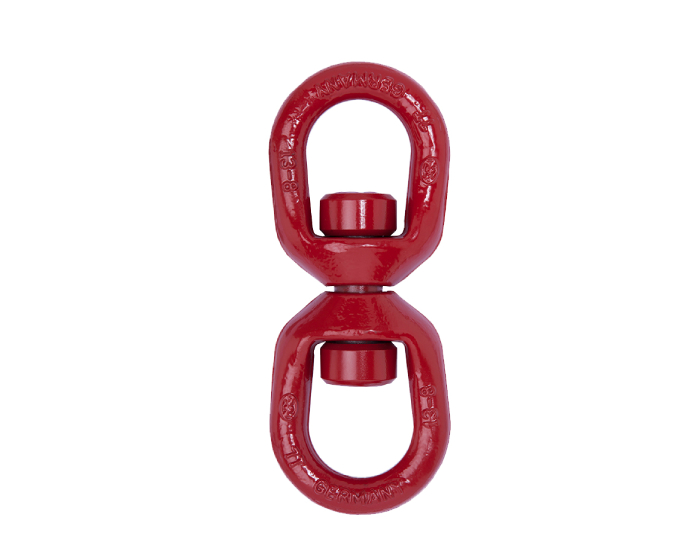

The grade 80 swivels TWN 0845 are used to assemble chain slings. The swivels enable the chain strands to be aligned without twisting. The lifting chains are assembled by using connecting links, e.g. THI-LOK®s TWN 1320. The manufacturing and testing requirements comply with the DIN EN 1677-1.

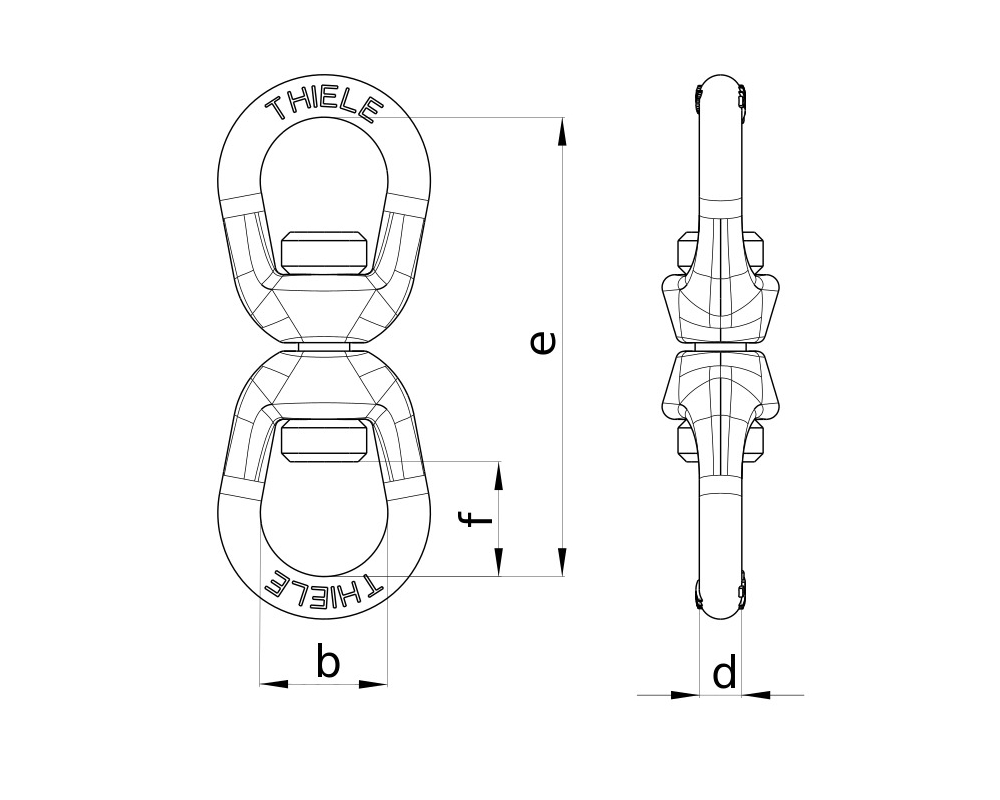

Trade size Art.№ Working Load Limit
[t max.]
E
[mm]
B
[mm]
F
[mm]
B
[mm]
Weight
[kg]
6-8 F34000 1,12 108 10 27 30 0,33
8-8 F34010 2,00 168 16 44 44 1,33
10-8 F34020 3,15 168 16
44 44 1,33
13-8 F34030 5,30 184 19    46 51 2,10
16-8 F34040 8,00 252 25 66 64 4,45
