Сountry of origin Germany
Brand Yale

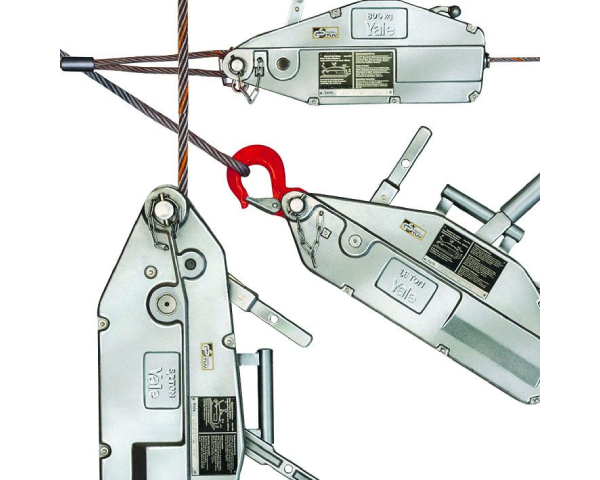

Purpose A versatile tool for pulling, lifting, lowering, tensioning and securing loads over long distances
Pulling force 800 – 3200 daN

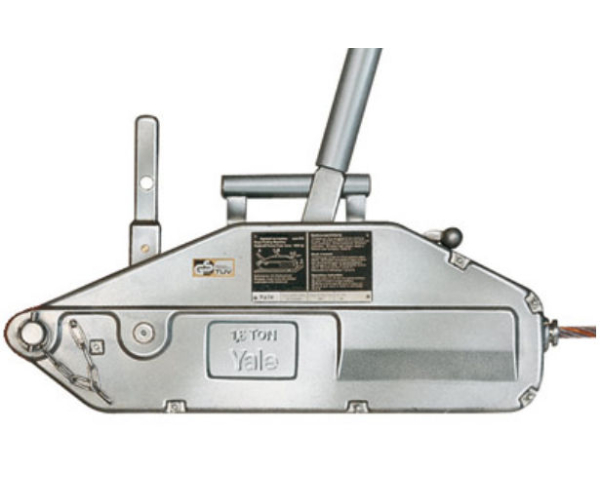

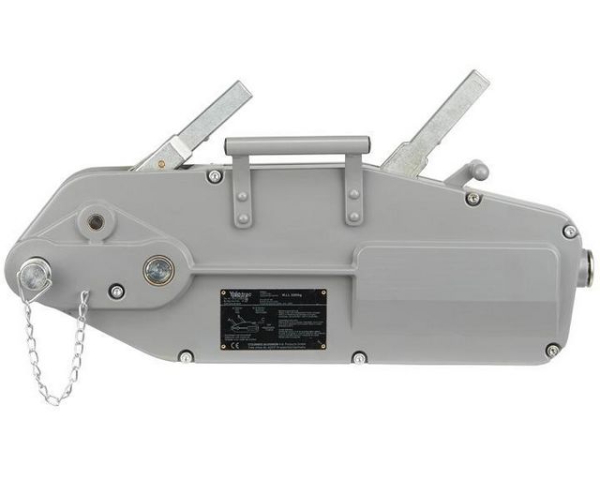

It has a light weight, compact, high tensile aluminium al-loy housing with a large flat bottom surface for increased stability in horizontal as well as vertical working position.

Features

  • Forward and reversing levers in tandem provide slim design and assure power transfer along the centre line.
  • Overload protection is by a shearing pin in the forward lever. Spare shear pins are conveniently located in the carrying handle or operating lever. A broken pin can be replaced without removing the load.
  • A lever disengages the rope clamp system allowing easy, smooth installation of the rope.
  • Yaletrac uses a special flexible rope. It has six strands with a steel core and is identified by an orange strand. The rope is tapered at one end for easy threading and fitted with an eye sling hook with safety latch on the other end.

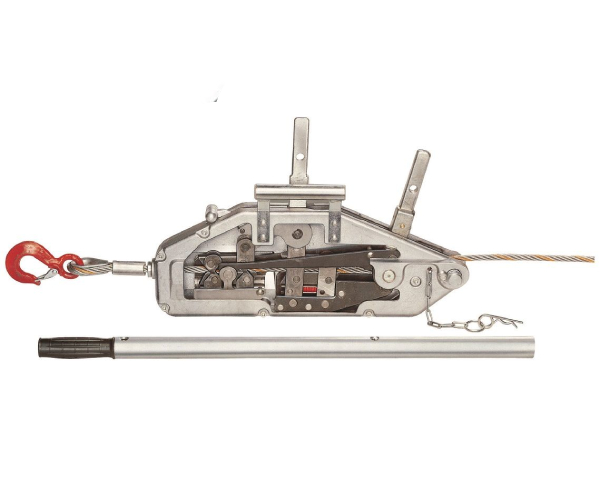

  • The parallel arrangement of the clamping system protects the rope by distributing the clamping forces evenly. A long rope advance per each lever stroke increases the working speed.
  • The large opening in the top of the unit allows easy cleaning: simply flush the unit with water, apply motor oil for lubrication and the Yaletrac is again ready for use.

Options

  • Eye sling hook with safety latch
  • Longer ropes
  • Drum reel
  • Storage box

Note

Yale hoists and trolleys are not designed for passenger elevation applications and must not be used for this purpose.
Complementary products available like cable grips, pulley blocks and textile slings.

Technical data Cable puller Yaletrac

Model
EAN-No.
4025092*
Capacity
WLL
Rope advance
per
double stroke
Lever pull
at WLL
Lever length
Rope
diameter
Weight
without rope
Rope
weight
- - kg mm daN mm mm kg kg/m
Y 08 *051811 800 60 24 800 8.4 7 0.29
Y 16 *051828 1600 60 30 790/1190 11.5 14 0.53
Y 32 *078870 3200 40 50 790/1190 16.0 21 1.0
