| Сountry of origin | Netherlands |
|---|---|
| Brand | Terrier |
| Use | For vertical lifting, transporting and turning of all steel plates and structures from all positions |
| Safety factor | 5:1 |
| Temperature range | From -40°C to + 100°C |
| Note | 3 different jaw positions . Adjustable by steps of 30 mm |
| Note | The surface of the material must have a hardness level of max. HRC 37/345 Hb |
| Note | Maintenance-friendly, easy to exchange parts which are available upon request |
Terrier lifting clamps are working in harsh and dangerous areas on a daily basis. So absolute safety and safe lifting is our number one priority. All lifting clamps are tested on our in-house testing facilities up to 2 times the Working Load Limit (WLL). Terrier Lifting Clamps are designed on a break factor of even 5 times the WLL.
Each clamp has red signal colouring on lifting eye and locking lever for extra safety and is supplied with a test certificate. When using Terrier clamps please make sure to read safety instruction.

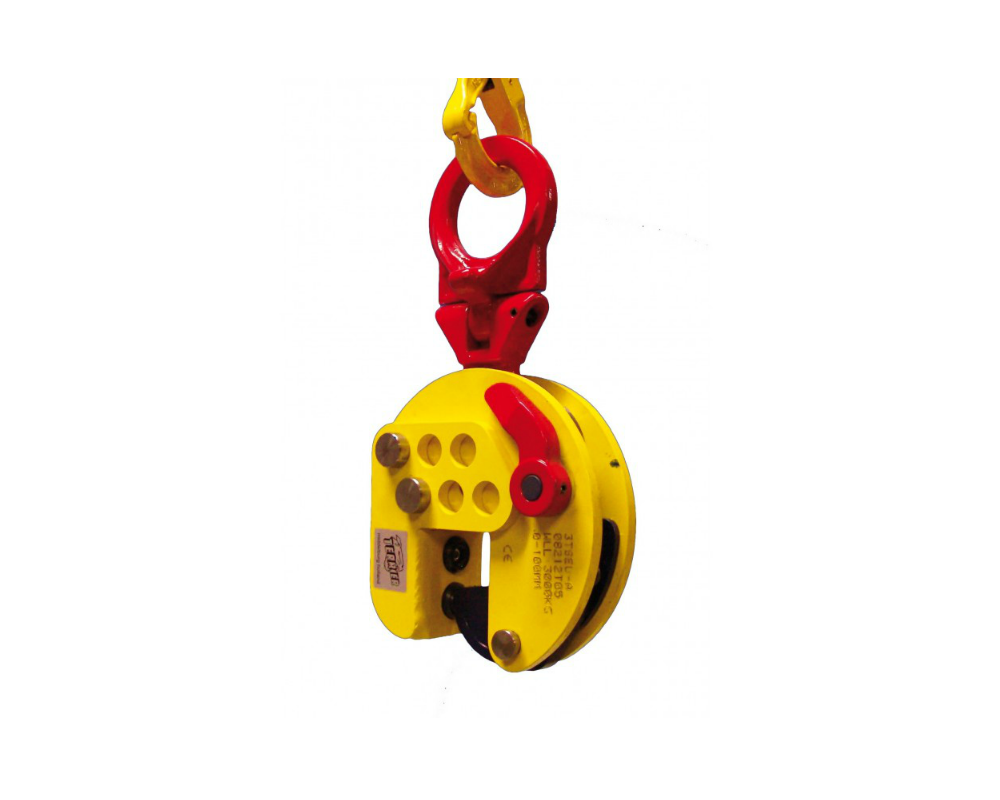

Vertical clamps are espcially designed for lifting (stainless) steel sheets, profiles or structures in a straight up direction. Terrier’s safety plate lifting clamps derive their name from the built-in safety mechanism, which consists of a locking device, a tension spring and a lever. Once the lever has been operated, the safety mechanism provides constant pre-tensioning of the cam on the steel-plate, thereby ensuring that the clamp does not slip when lifting force is applied. When a load is being lifted the clamping force on the cam is increased by the weight of the load.
Features and benefits:
- Only 1 clamp needed for different kind of jobs
- Also the same clamp can be used if a big jaw opening is necessary
- With articulated lifting shackle for universal lifting flexiblity at various angles
- The articulated lifting shackle guarantees a pressure grip in every position, even when side loading up to 90 degrees .
- Note a lower load capacity when lifting in an angle higher than 45 degrees . Please check the WLL reduction.
- Longer plates can be lifted without the use of a spreader beam when using two clamps on a two legged chain sling
- Always equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered
- Standard with 2 pivots for extra clamping force
- Clamp is locked in closed as well as open position
- Lightweight design for easy handling
- Tough quality heavy duty welded shell body
- Maintenance-friendly, easy to exchange parts which are available upon request
|

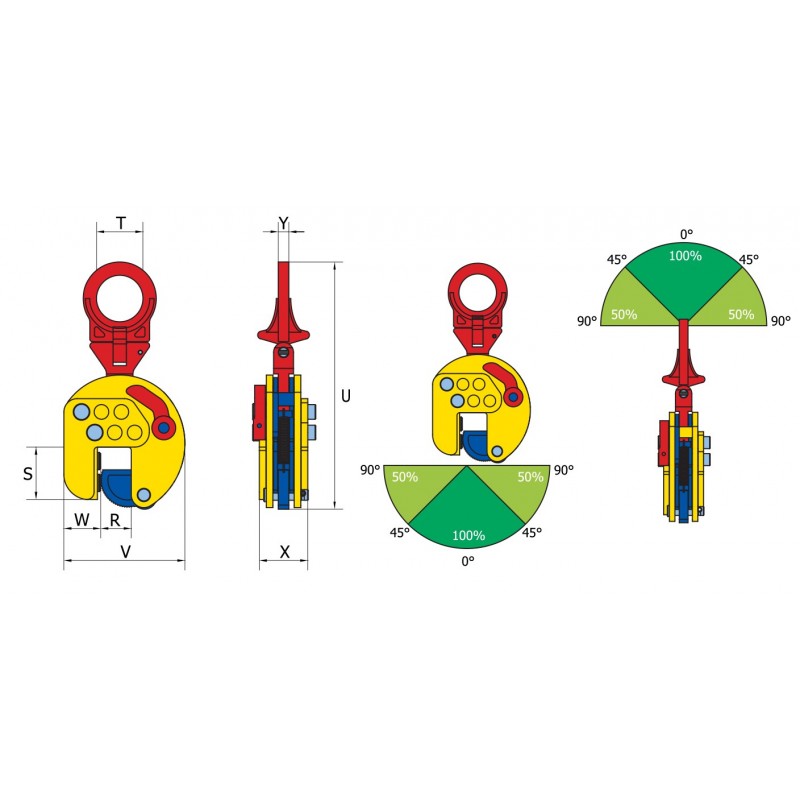

ART. № |
MODEL |
CAPACITY [KG/PC] |
JAW OPENING [MM] |
S [MM] |
T [MM] |
U [MM] |
V [MM] |
W [MM] |
X [MM] |
Y [MM] |
WEIGHT [KG/PC] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 863300 | 3 TSEU-A | 3000 | 0 - 95 | 79 | 70 | 373 | 183-243 | 51 | 77 | 16 | 10 |
